Plaster walls break most stud finders. The thin wood lath strips behind the plaster register as dense material, so a basic electronic scanner paints the wall with false readings, and the extra thickness swallows the signal you came for. The fix is a pair: a multi-sensor deep-scan electronic scanner to map the wall, plus a rare-earth magnetic finder to confirm the reading. That pairing shaped our 2026 recommendations.
After six weeks scanning plaster-and-lath walls in a 1920s house, we ranked twelve scanners by what they actually did on uneven old plaster. Two manufacturers state on their own listings that they do not support lath and plaster. We kept them in the list, but flagged exactly why each is a poor fit for this wall type.
The short version: the Franklin Sensors ProSensor 710+ is the best stud finder for plaster walls overall, the StudPoP moving magnet cracks the thickest plaster, and the ProSensor M210 adds live-wire warning for older wiring. We also cover how to find studs in plaster without any tool, which is what many people searching this phrase actually need.
For contrast, our guide to fish finders for kayaks covers a different kind of reading altogether, but the rule is the same: a sensor suited to the environment beats a pricier one that is not.
Table of Contents
Top 3 Picks for Plaster Walls in 2026
These three cover the situations we hit most. The 710+ maps, the StudPoP confirms, and the M210 adds wiring safety.
StudPoP Moving Magnet
- 1 inch magnet
- no batteries
- works on lath and plaster
- click and pop confirmation
Best Stud Finders for Plaster Walls (October 2026)
Every scanner below, with the specs that decide whether it works behind plaster. Depth figures are manufacturer maximums, so treat them as a ceiling.
| Product | Specifications | Action |
|---|---|---|
| Franklin ProSensor 710+ |
|
Check Latest Price |
| Franklin ProSensor M210 |
|
Check Latest Price |
 JAXWQ 5 in 1 Wall Scanner |
|
Check Latest Price |
 Franklin ProSensor M150 |
|
Check Latest Price |
 Mecurate 5 in 1 Scanner |
|
Check Latest Price |
| StudPoP Moving Magnet |
|
Check Latest Price |
 Walabot DIY 2 |
|
Check Latest Price |
 FNIRSI WD-01 |
|
Check Latest Price |

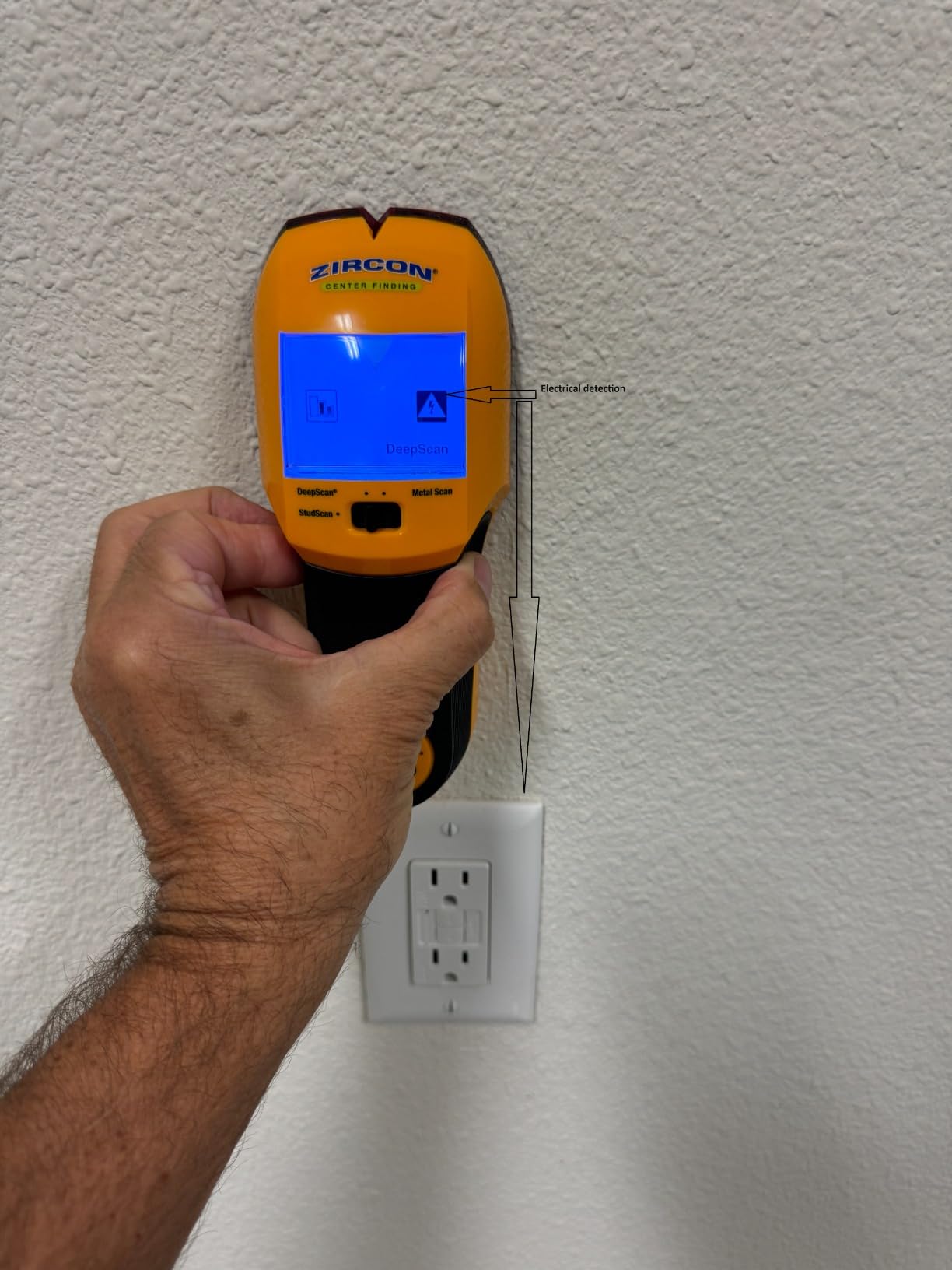

 Zircon MultiScanner A200 |
|
Check Latest Price |

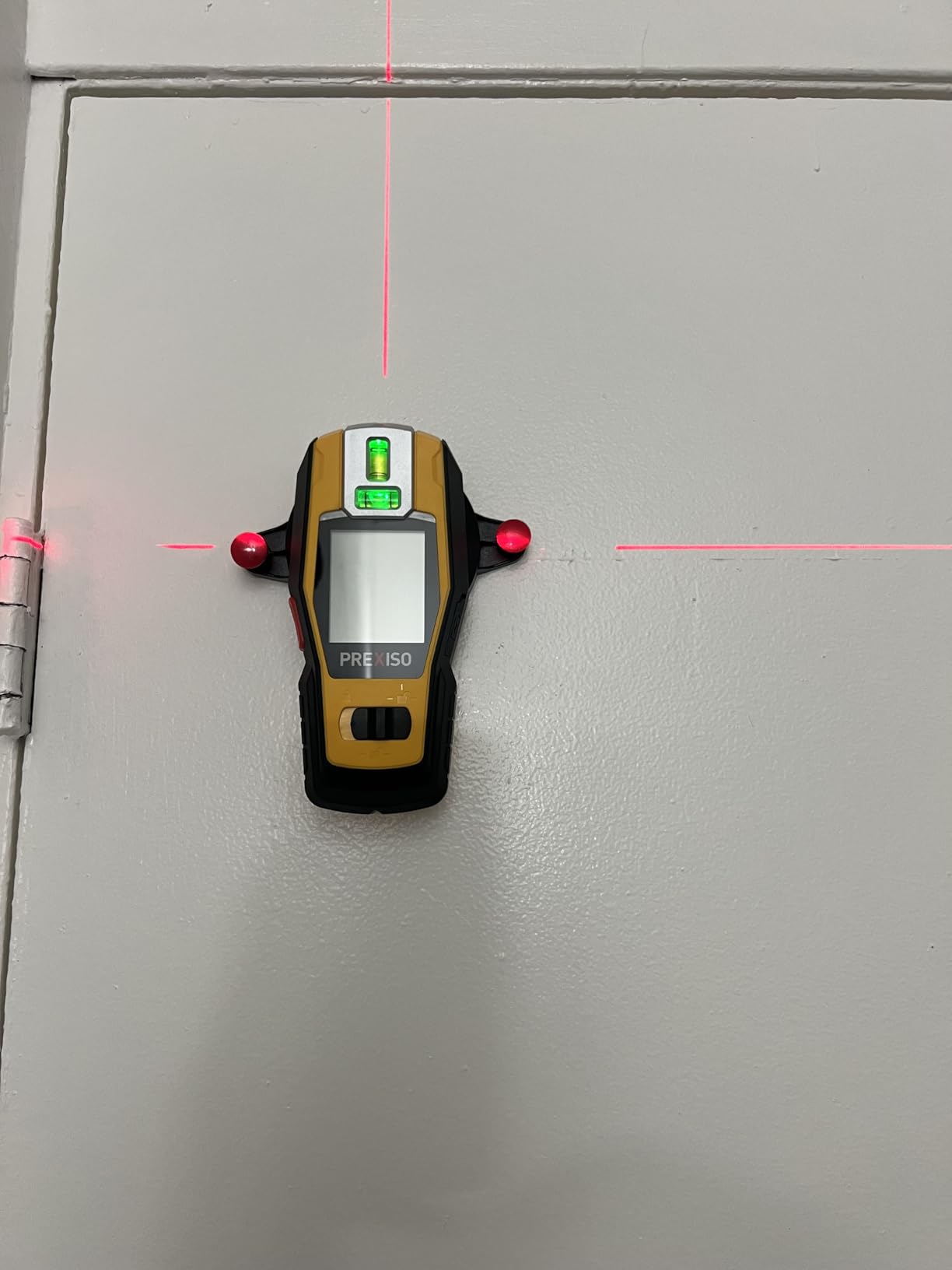

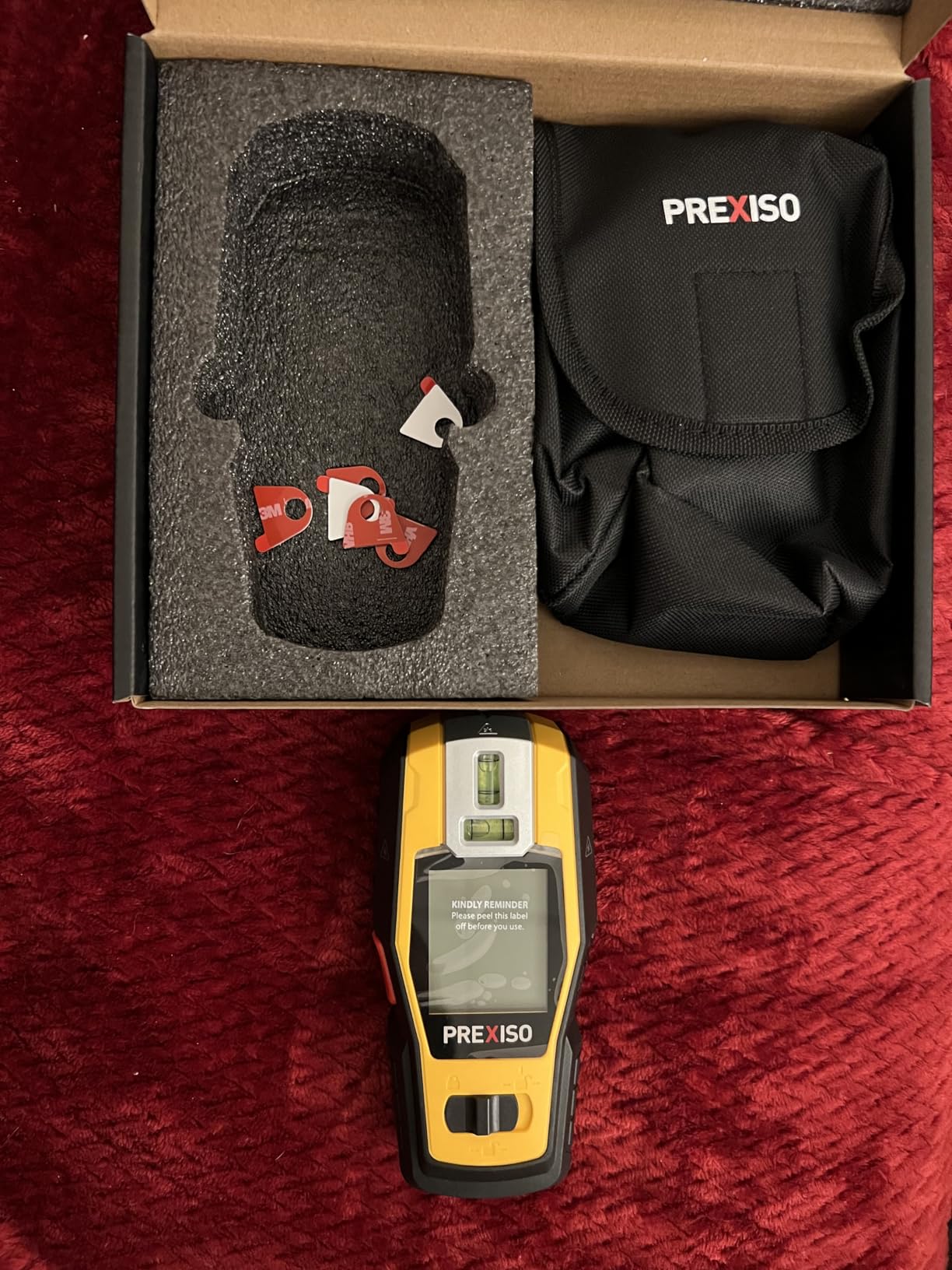

 PREXISO 2 in 1 Laser Combo |
|
Check Latest Price |

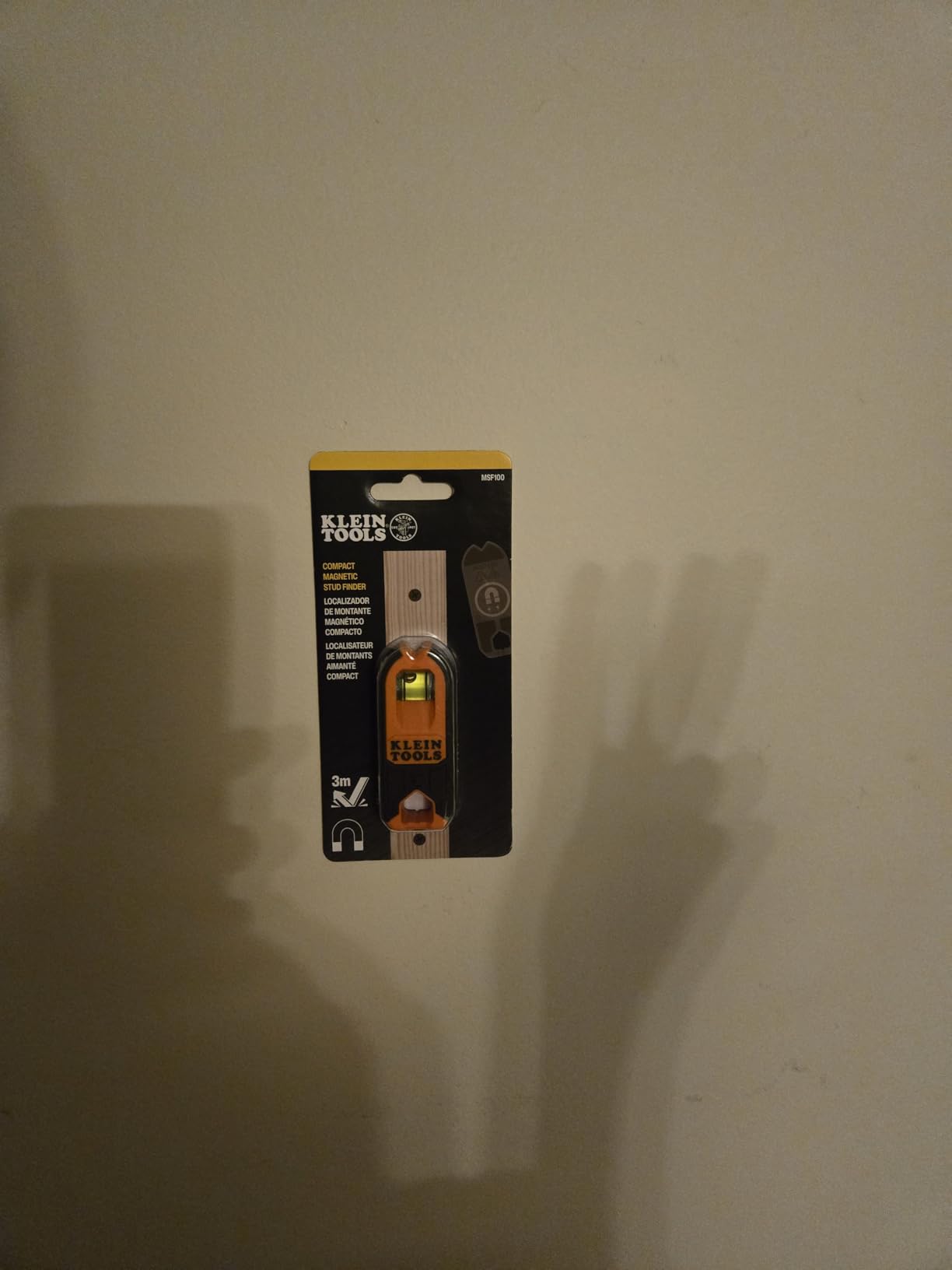

 Klein Tools MSF100 |
|
Check Latest Price |

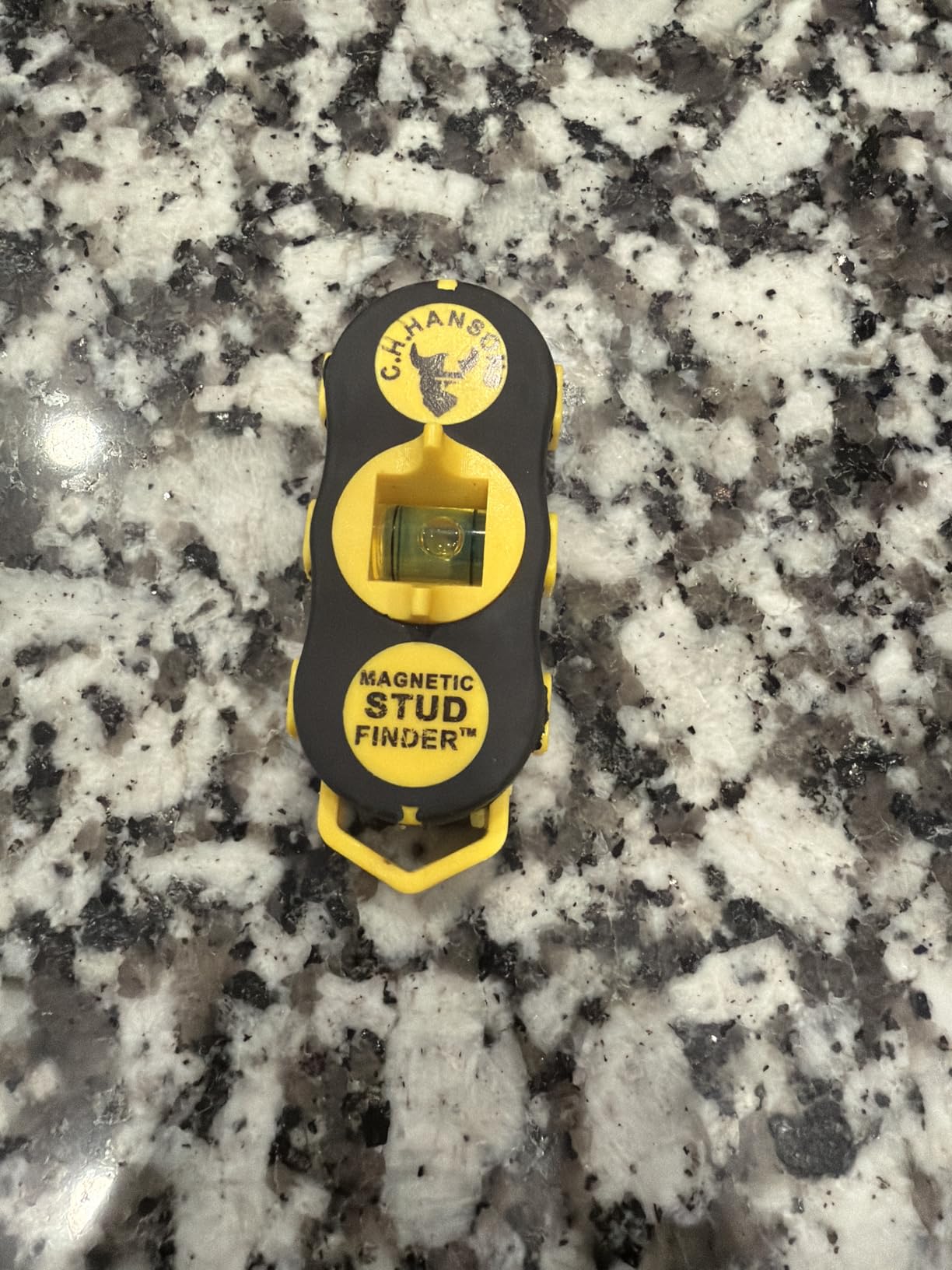

 C.H. Hanson 03040 Magnetic |
|
Check Latest Price |
Why Plaster Walls Break Most Stud Finders
Three things stack up against a scanner behind old plaster. First, wood lath. Those narrow strips run horizontally at roughly 5/8 inch spacing, and a capacitance sensor reads that regular grid as framing. You get a wall where nearly every horizontal position beeps, the classic complaint in r/DIY and r/HomeImprovement threads about lath and plaster.
Second, thickness. A lath and plaster wall is framing, lath, a base coat and a finish coat. Most electronic scanners publish a 1 to 1.5 inch maximum, and the two ProSensor models here reach 1.6 and 1.7 inches. That is ample on drywall and marginal on thick plaster with a patch repair.
Third, steel lath. Pre-1940 homes often use expanded metal mesh instead of wood strips. Steel lath is dense metal across the whole wall, so electronic finders get a wall-wide false positive, while the nails holding that lath remain available to a magnet. Steel lath is the one case where the magnet is clearly better.
Wall density is the deciding factor. A magnet ignores density and reacts only to the fasteners tying the wall to the framing, so it keeps working as plaster thickens. An electronic finder must push a signal through every layer, so thickness and unevenness erode it. That is why the two-tool method works: the scanner maps, the magnet decides.
Two products here disqualify themselves in their own documentation. The Walabot DIY 2 says to use it only on drywall and plywood, and not on lath and plaster, concrete, tile, brick or stucco. The PREXISO 2 in 1 carries the same exclusion, and its adhesive strips are called out as unsuitable for wallpaper and drywall. Owners on r/Tools confirm the Walabot verdict from the other side: excellent elsewhere, a deal-breaker in old houses.

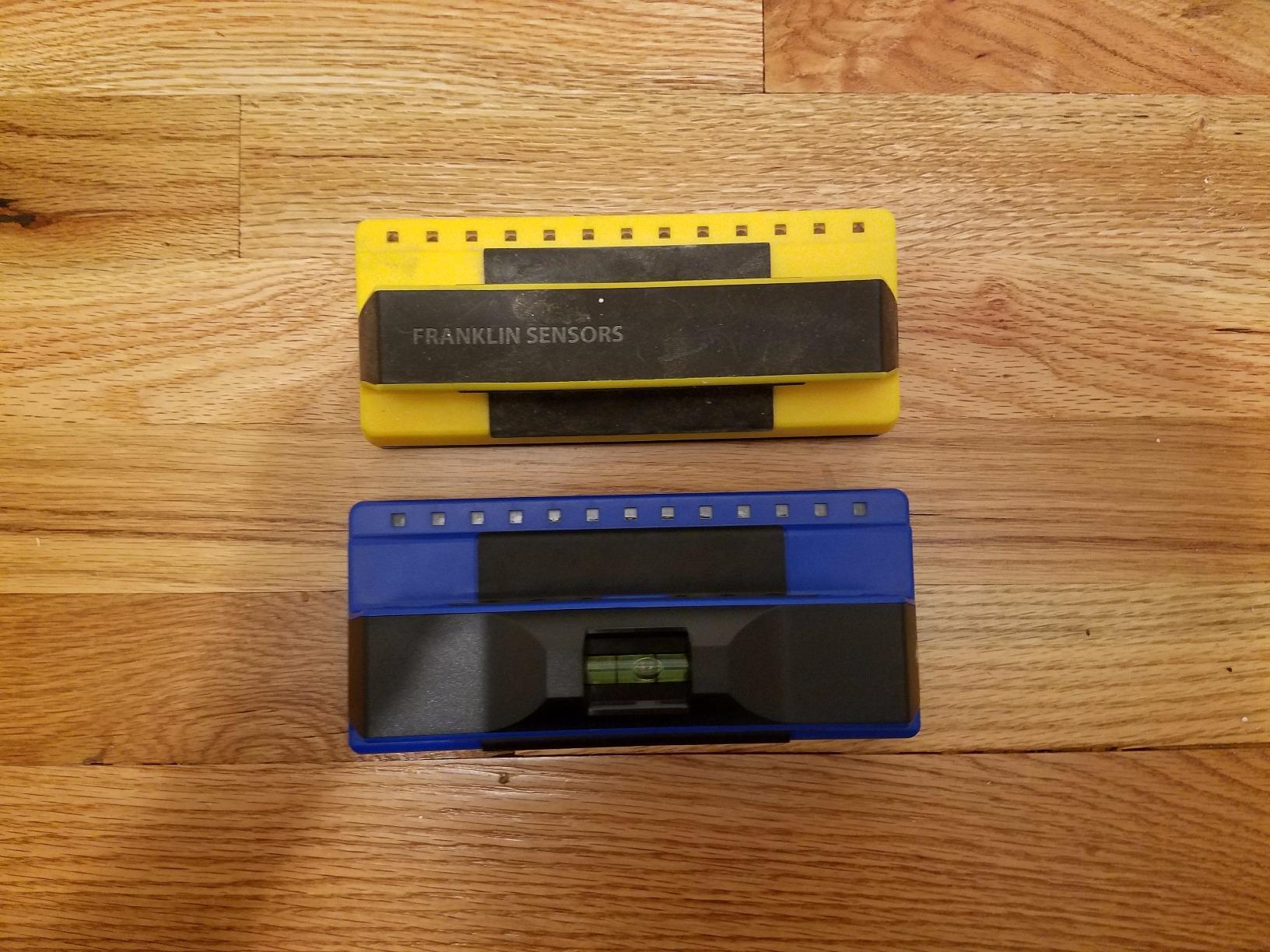

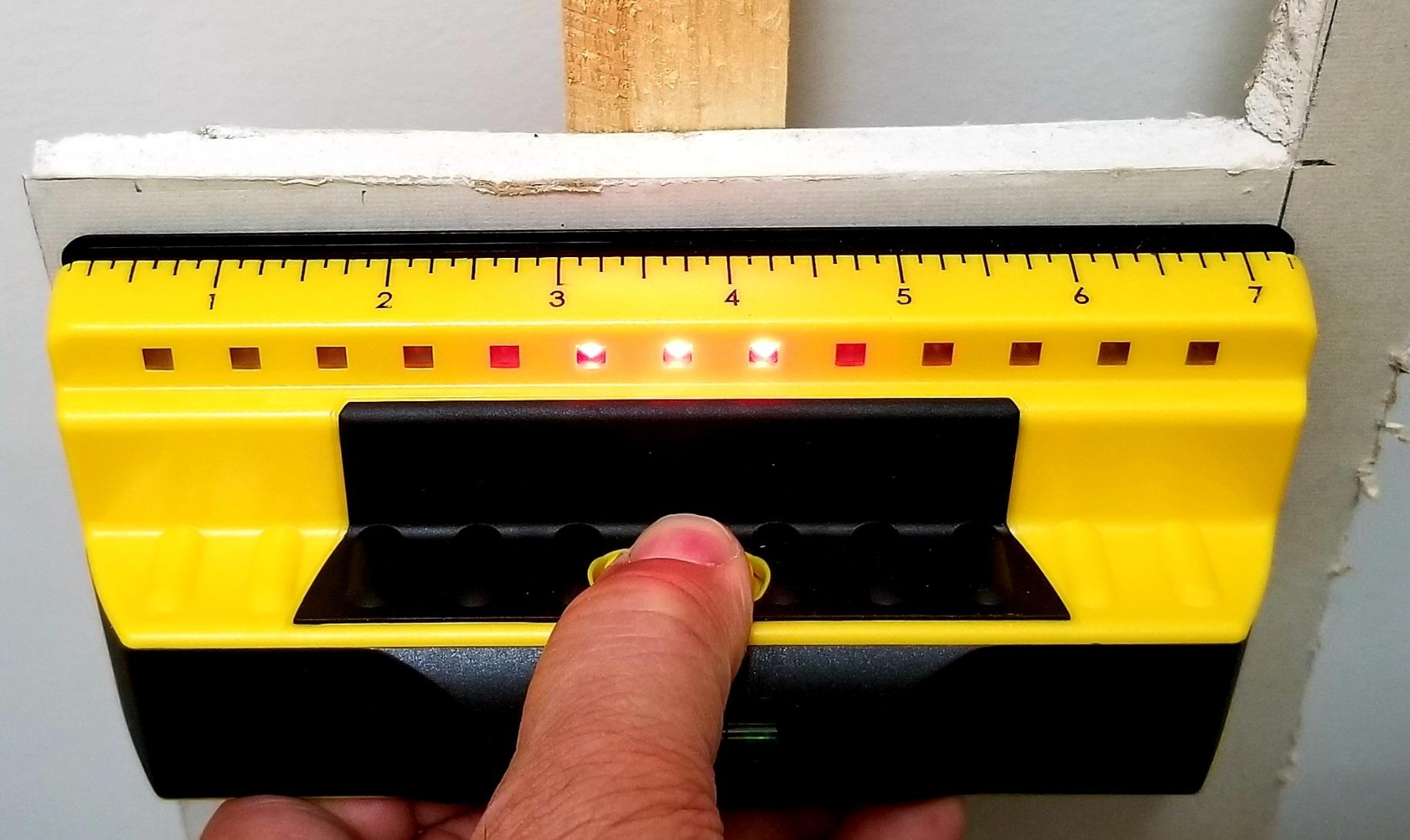

1. Franklin Sensors ProSensor 710+ – Best Overall for Plaster Walls
Franklin Sensors ProSensor 710+ Stud Finder, 13-Sensor Wall Scanner
13 sensors,1.6 inch deep scan,no calibration needed,full stud width LED,built-in level and ruler
Pros
- 13-sensor array gives the widest reliable sweep in this list
- No calibration so you can start over a stud or a patch
- Shows full stud width and double studs with a green center LED
- Always-on deep scan to 1.6 inches
- Built-in bubble level and integrated ruler
Cons
- 1.6 inch ceiling is tight for the thickest plaster walls
- Batteries not included and rechargeables are not supported
- Single-mode design gives no dedicated AC wire warning
The 710+ is the scanner we kept reaching for on plaster. Thirteen sensors across the bed read a broad band of wall at once, which is what you need when the lath grid is trying to convince the tool that everything is a stud. A 1 or 2 sensor scanner samples a narrow slice and gives a far noisier picture.
What sold me is the no-calibration start. On a patched old wall, a tool needing a clean reference often refuses to lock on, and you end up hunting for a spot where calibration sticks. The 710+ simply starts, even over a stud.
The green center LED matters more than it sounds. Because the array shows the whole width of a stud rather than a single edge, you can read the center instead of estimating it, which turns “somewhere around here” into an exact screw location for a heavy bracket.
The honest limit is depth. At 1.6 inches it reaches a stud through ordinary lath and plaster and most single patches. It is not the tool for a wall with a thick skim coat plus an old repair plus furring. There is also no live wire warning, which is why we pair it with a separate wire check in pre-1970 homes.
What you should check before buying
Check the wall thickness at a window or doorway reveal, where the plaster edge is exposed. Close to an inch and a half, this scanner works at the outer edge of its range. Much thicker and the magnet should be your primary tool.
Also check for double studs, which are common beside old fireplaces and in closets. The 710+ displays them explicitly, so it is a good first scanner for a house with those spots.
Where it falls short
It is not a wire detector, and even a 4.6 average across more than 10k reviews leaves owners who hit walls it could not read. If your house has cloth-wrapped or knob-and-tube wiring, choose a scanner with wire warning and use this for mapping.
Batteries are not included, and the manufacturer states rechargeable cells are not supported. Add them before your first scan.

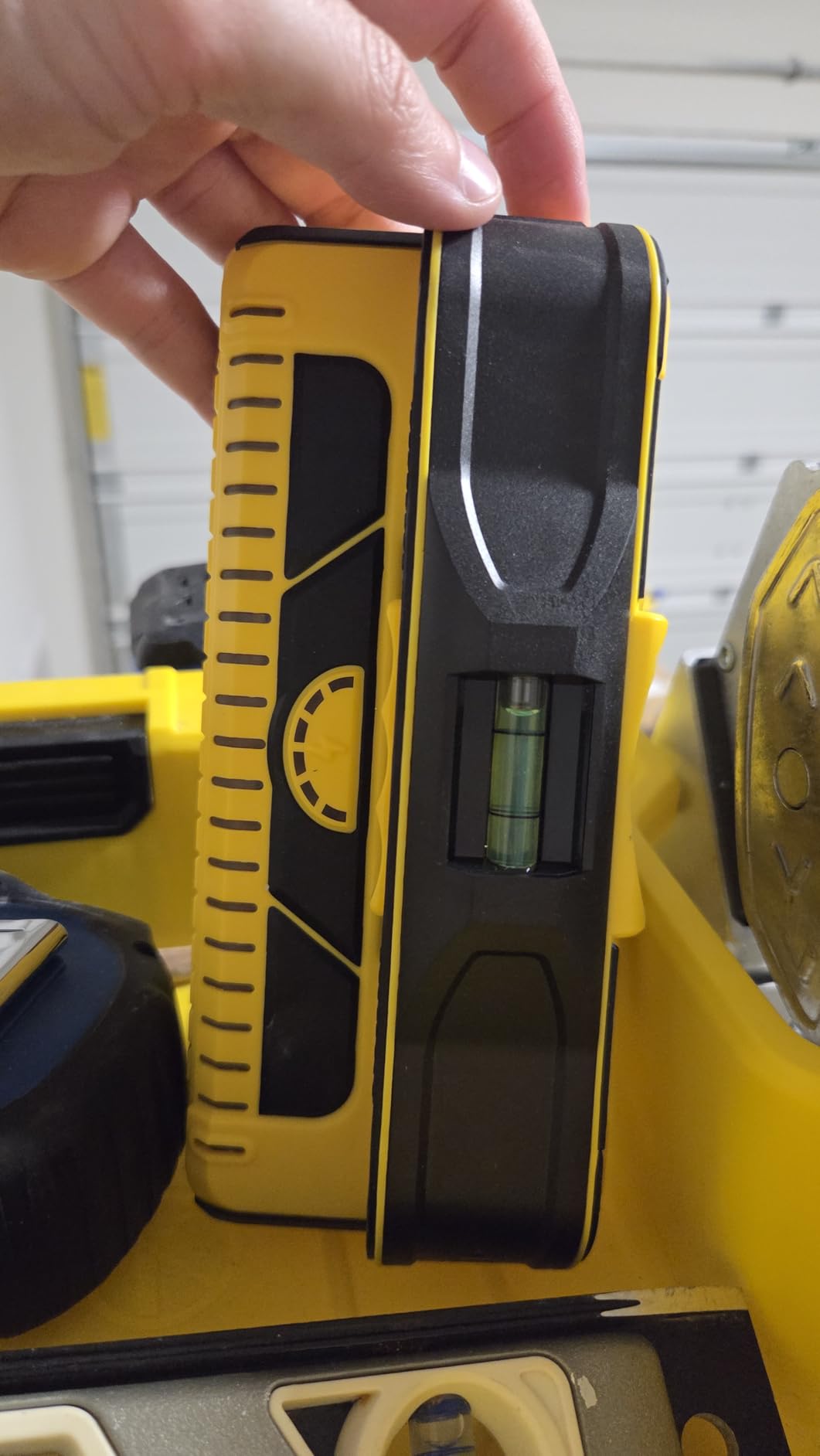

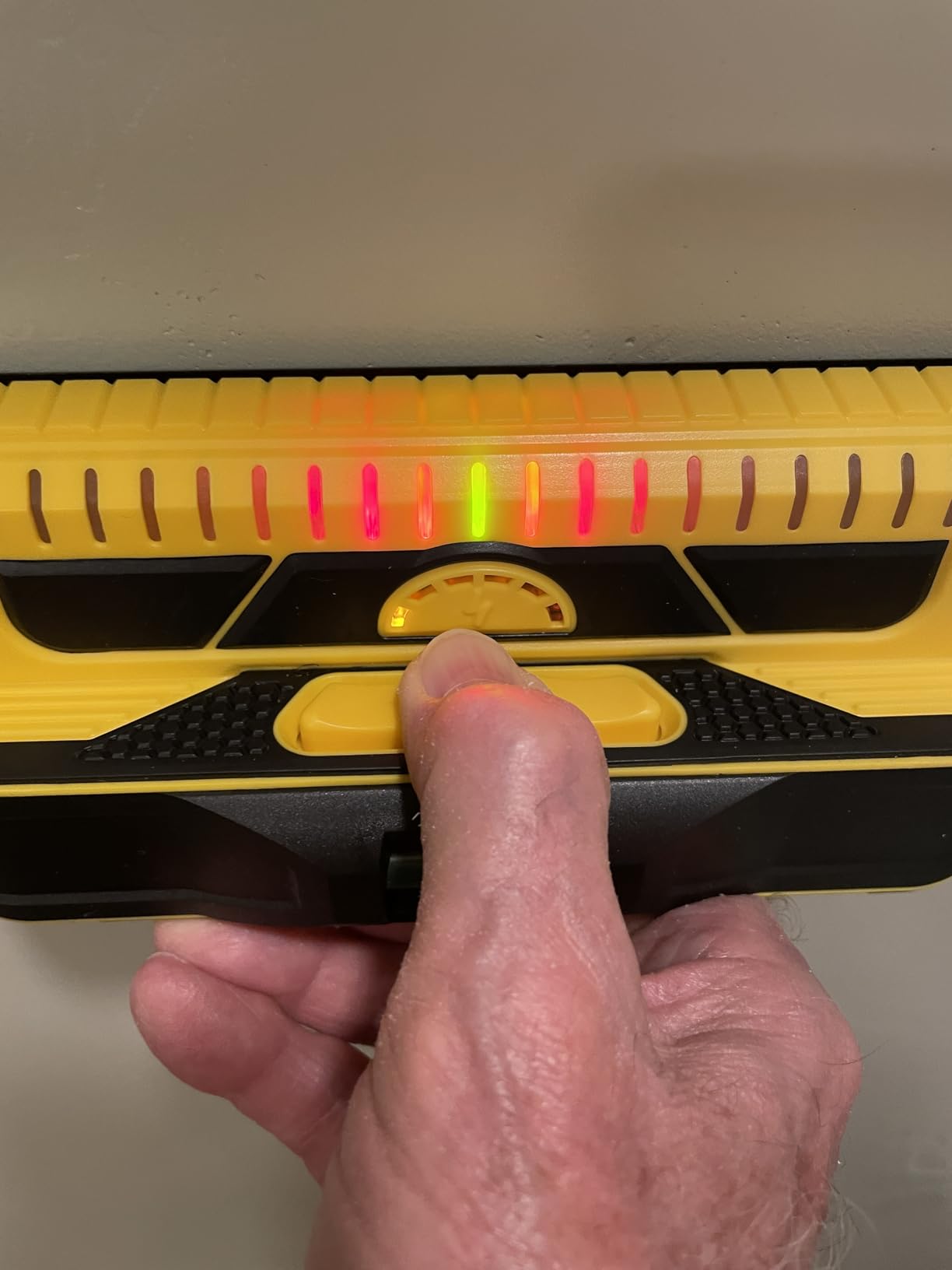

2. Franklin Sensors ProSensor M210 – Best With Live Wire Warning
Franklin Sensors ProSensor M210 13-Sensor Stud Finder, Live Wire Detection
13 sensors,1.7 inch depth,live AC wire detection,no calibration,rechargeable battery friendly
Pros
- Deepest scan in the ProSensor line at 1.7 inches
- Live AC wire detection warns before you drill
- 13 sensors keep the reading steady on uneven plaster
- Works with rechargeable AA batteries
- Built-in level and pencil caddy
Cons
- Still limited against very thick plaster over lath
- Batteries not included
- Bulkier and heavier than the smaller ProSensor models
The M210 is the 710+ with the addition that matters most in an old house: it tells you when a live AC wire is behind the surface. On plaster from before 1970 that changes the workflow, because a mistake is not a cosmetic chip.
Depth is 1.7 inches, the deepest of the three ProSensor models here, and the 13-sensor array behaves the same way the 710+ does on uneven plaster. Consistency across passes matters more than one strong signal, and a wide array delivers it on a patchy wall.
It is also the only ProSensor accepting rechargeable AA cells, which quietly solves the dead-battery-mid-scan problem. The pencil caddy is small but useful when you are marking stud centers in pencil.
Two complaints recur: the body is larger and heavier than the smaller ProSensor units, which matters overhead on a ladder, and 1.7 inches still will not reach a stud behind a genuinely thick wall. On a 1.5 inch plaster build-up it performs; beyond that, no.
What you should check before buying
Check for surface-mounted conduit or old cloth-covered wiring, which a live-wire mode may read inconsistently. Treat a warning as a firm stop signal, but treat silence as one data point rather than proof of safety.
If you already own the 710+, weigh this against adding a dedicated wire detector. On most drywall walls, that second tool is the cheaper path.
Where it falls short
It is the heaviest unit in the roundup at just over 11 ounces, and the dimensions make it bulky in a tight corner or above a cabinet. There is no way to trade the safety feature for a lighter body.
Its rating matches the 710+ but on roughly 6.4k reviews, so the owner base is smaller and you will find fewer long-term reports on thick plaster specifically.

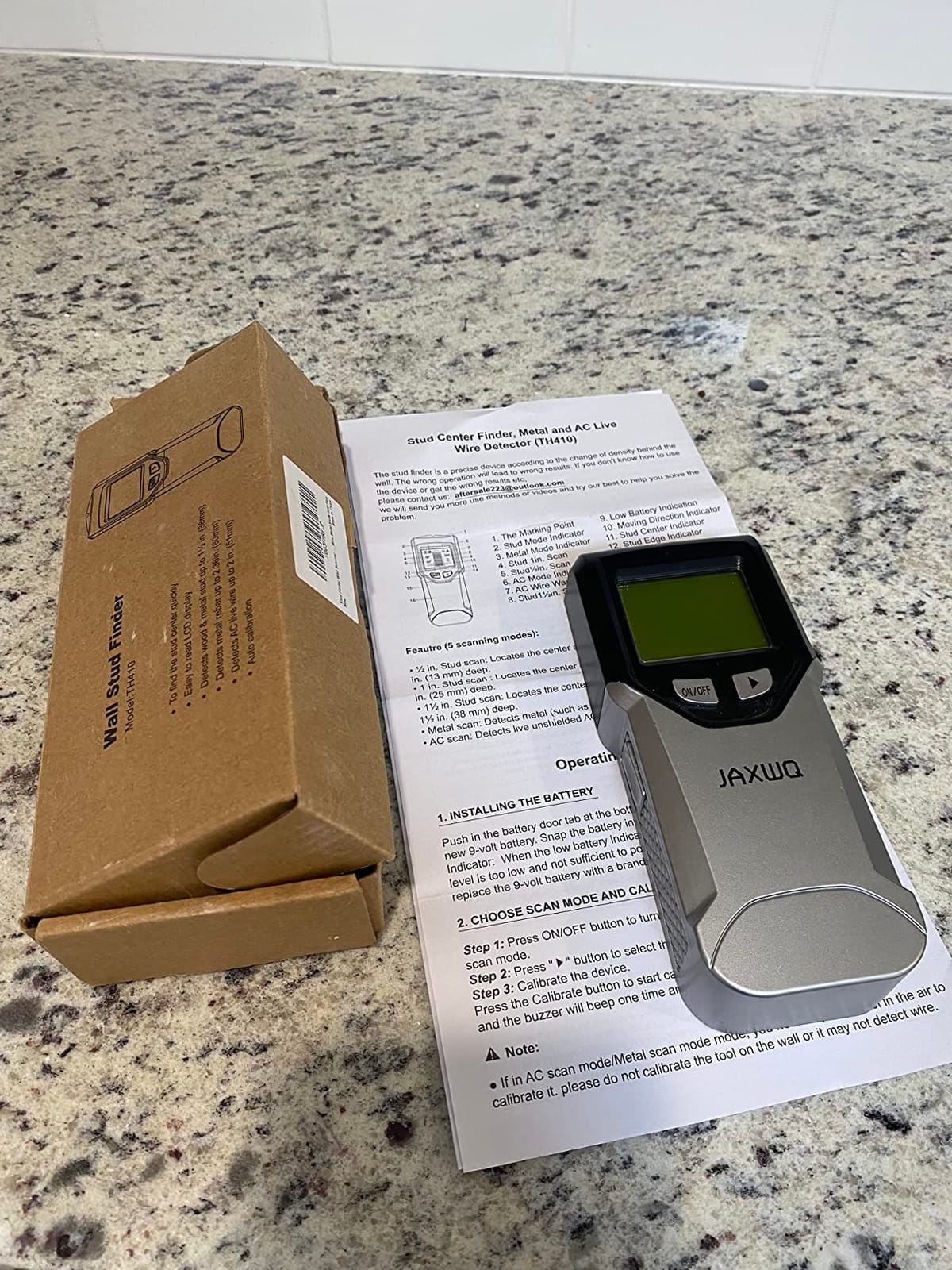

3. JAXWQ 5 in 1 Wall Scanner – Best Budget Entry Point
Stud Finder Wall Scanner – 5 in 1 Stud Finder Tool w/Smart Chip and HD LCD Display, Stud Detector Beam Finders for the Center and Edge of Wood AC Wire Metal Studs Joist Pipe (grayish)
5 in 1 scanner,backlit LCD with center and edge readout,stud deep and metal modes,live AC wire detection
Pros
- Backlit LCD shows center edges and battery status
- Audio alerts let you scan without watching the screen
- Stud deep and metal scan modes cover the main targets
- Low cost entry into electronic wall scanning
Cons
- No published maximum detection depth
- Mixed accuracy reports on dense walls
- Deep mode targets pipes and wires more than framing
Of the twelve scanners here, this is the one we would hand someone who wants to try electronic scanning on plaster without committing to a ProSensor. The backlit LCD showing center, edge and battery status at once is useful in a dim basement or unfinished room.
Three scan modes cover wood and metal studs, deeper objects like pipes and wires, and metal detection generally. On plaster that is workable for a light job, a picture, or a first pass before you commit further.
The problem is that no maximum detection depth is published. That is the one number you need for plaster, and its absence is why this sits third. Owners also report mixed accuracy on dense walls, and a 4.2 average with a meaningful one-star share tells that story.
Its deep mode is described as aimed at wider targets such as pipes and wires rather than framing buried deep behind plaster. Reasonable design, just not the one this wall needs.
What you should check before buying
Check what your walls are made of. On standard drywall in a newer house, this is a fine first scanner. On original lath and plaster, you are buying a tool whose depth you cannot verify.
Check that you can re-run a scan three times in the same spot and get the same answer. On plaster, a tool that drifts between passes is worse than no tool.
Where it falls short
A generic brand with no published depth and no stated lath support is the core limitation. It is a reasonable entry point, not a tool to hang a heavy item on original plaster with.
The one-star share reflects real accuracy complaints rather than noise. Budget buyers should test it against a known stud location before trusting it.

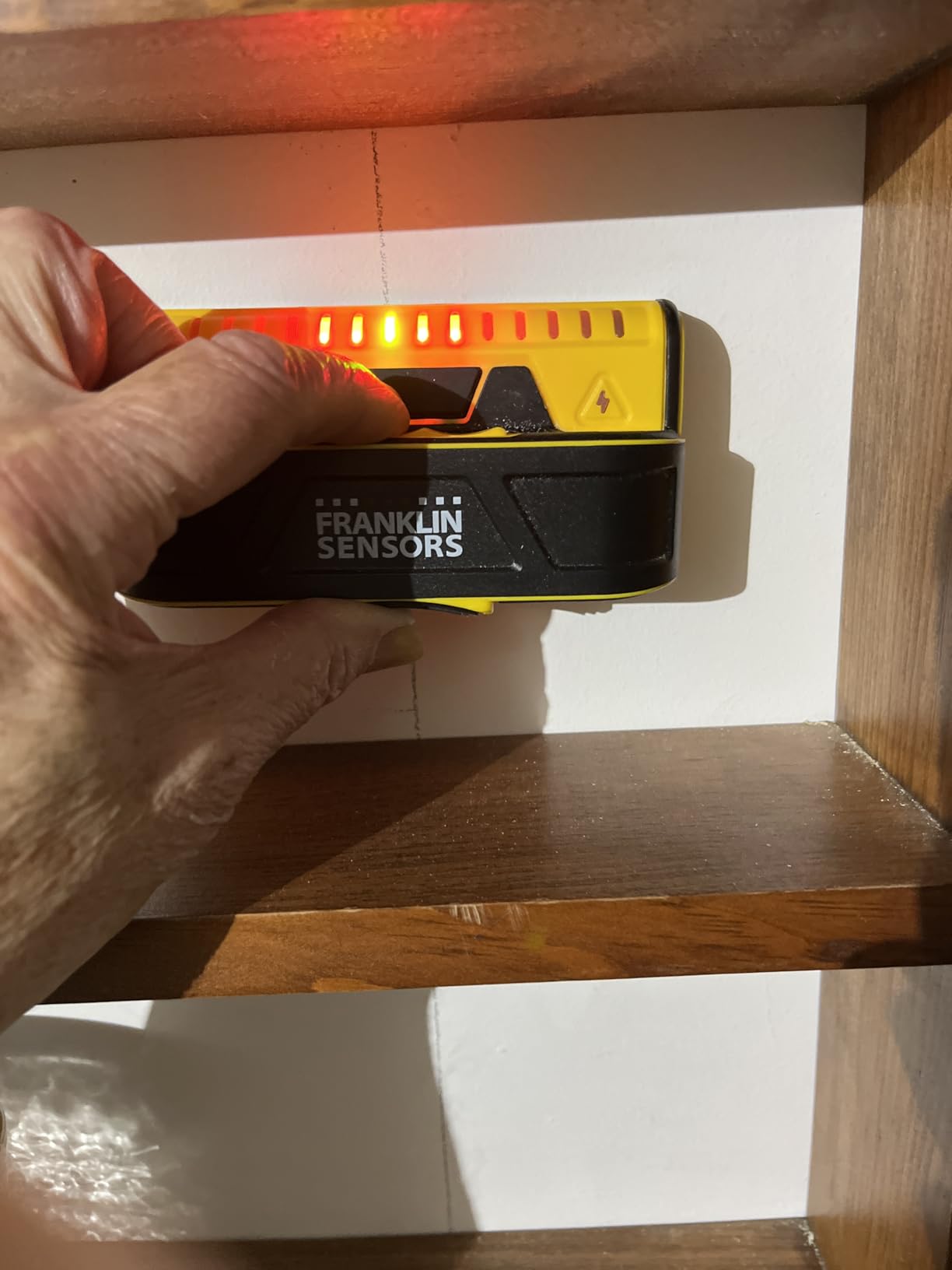

4. Franklin Sensors ProSensor M150 – Best Compact Scanner
Franklin Sensors ProSensor M150/X990 9-Sensor Stud Finder, AC Wire Warning
9 sensors,1.5 inch deep scan,live AC wire warning,5.12 ounces,full stud width LED
Pros
- Only 5.12 ounces so it suits ladders and tight spaces
- 9 sensors still out-scan most 1-2 sensor competitors
- Live wire detection for safe drilling
- No calibration and can start over a stud
Cons
- 1.5 inch depth is the shallowest of the three ProSensor models
- Batteries not included and rechargeables unsupported
- Lowest rating of the three ProSensor units
The M150 is the ProSensor to buy when you are working alone on a ladder or reaching behind something. At 5.12 ounces in a 5.5 by 3 by 2 inch body, it is the only multi-sensor scanner here you can hold overhead for a full scan without complaint.
It keeps what makes the line work on plaster: nine sensors across the bed, a green center LED showing full stud width, and no calibration requirement. Live wire detection is included, which puts it ahead of the 710+ for safety at a size that suits a tight room.
The trade is depth. At 1.5 inches it is the shallowest of the three ProSensor models, so on thick plaster it is the one most likely to give a weak or absent reading. It takes two AAA cells and the manufacturer states rechargeables are not supported.
Owner ratings land at 4.4 with a smaller five-star share than the 710+ and M210. The gap between the three is narrow, and for most buyers wall thickness decides rather than brand loyalty.
What you should check before buying
Measure your plaster thickness before choosing this over the M210. At or under an inch and a half, the size advantage wins. Over it, the extra 0.2 inch matters more than the weight.
Check whether you will be doing overhead work. If yes, this is the clear pick in the electronic category.
Where it falls short
It is the least accurate of the three Franklin units in owner ratings, and the shallowest. On a genuinely thick lath and plaster wall you will end up supplementing with a magnet anyway.
Two AAA cells is a small complaint but a recurring one, and the rechargeable restriction is worth checking against how you actually work.

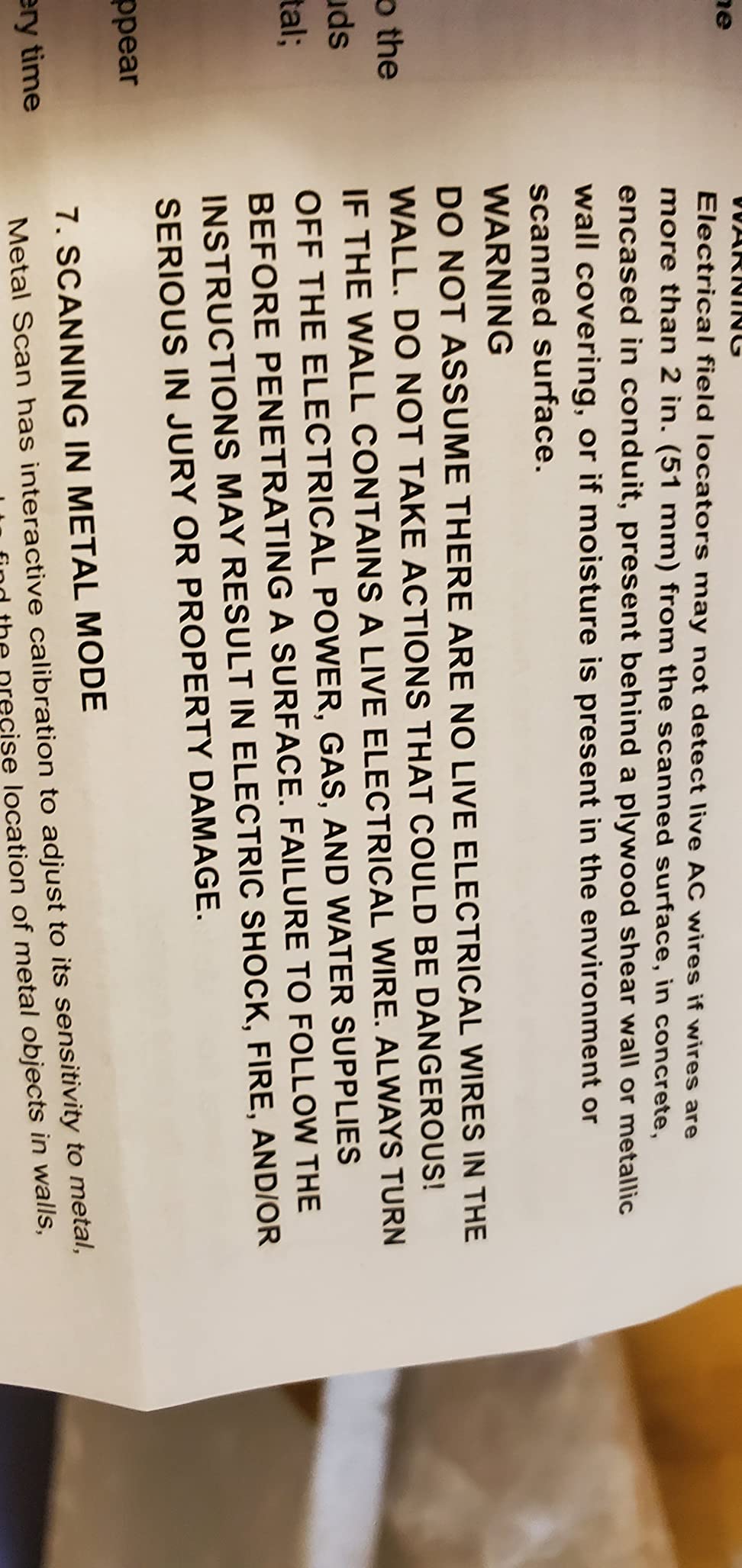

5. Mecurate 5 in 1 Scanner – Best Multi-Mode Range
Mecurate 5-in-1 Stud Finder Wall Scanner for Studs, Metal & Live AC Wires
Four labeled modes from 3/4 to 2-3/8 inch,HD LCD,AC wire alert,9V battery and pouch included
Pros
- Four clearly labeled depth modes with published figures
- Standard 3/4 in
- Deep 1-1/2 in
- Metal 2-3/8 in and AC 2 in
- AC wire audio alert adds drilling safety
- 9V battery and carrying pouch included in the box
Cons
- Manufacturer states best performance on single-layer drywall
- Requires calibration before each use
- Some owners report inconsistent readings between repeat scans
This is the only scanner here that publishes a separate depth figure for every mode, and that transparency is exactly what plaster demands. Standard at 3/4 inch, Deep at 1-1/2 inches, Metal at 2-3/8 inches and AC at 2 inches gives you a clear map of its limits.
The bright LCD shows detection data in real time with clear graphics, which makes a weak signal readable as weak rather than a guess. The audio AC alert is a genuine safety addition on a pre-1970 wall, and the included 9V battery and pouch mean nothing is missing.

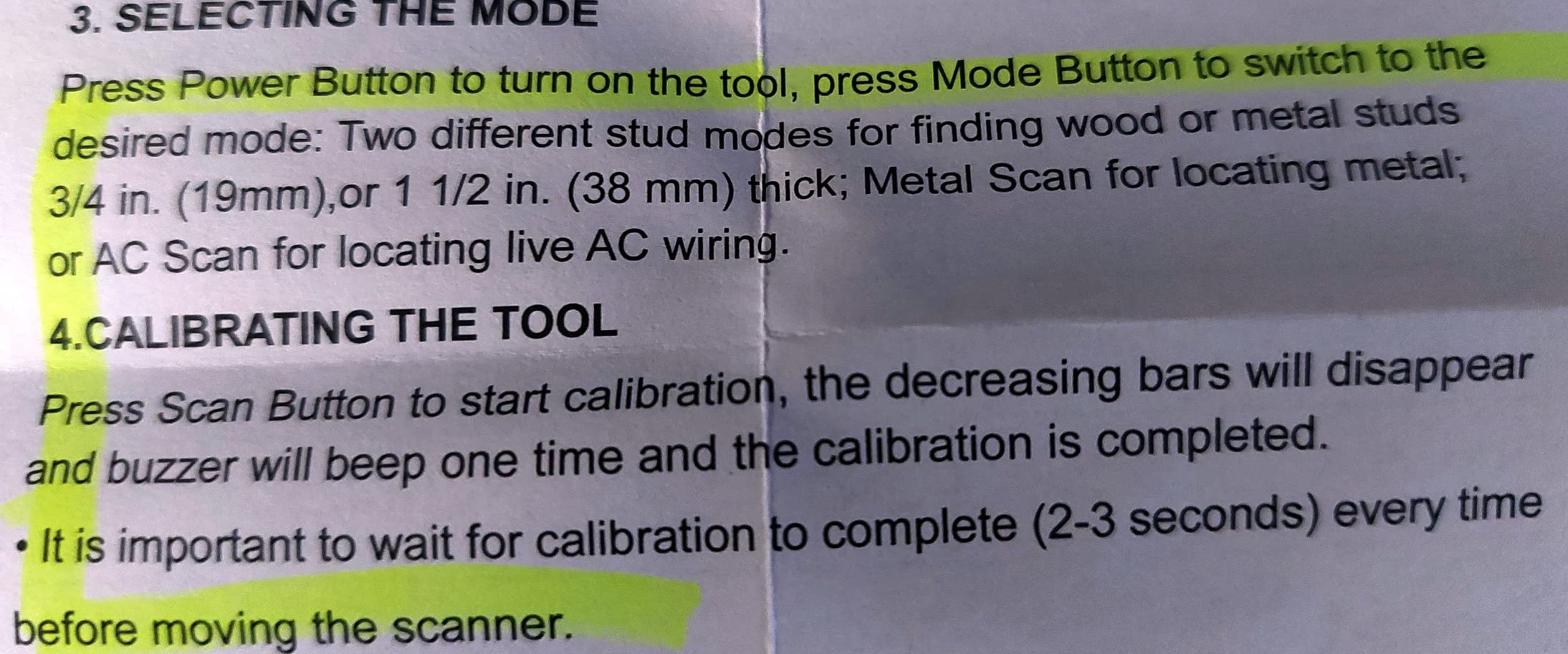

Two things keep it out of the top. It requires calibration against the wall before each use, and on uneven plaster that means finding a stable reference spot every time you pick it up. The manufacturer also states best performance on single-layer drywall, a direct hint about thick plaster.
Owners report repeat scans in the same position returning inconsistent results. Where false positives are already the main problem, inconsistency is a real cost, and the 4.2 average reflects it.
What you should check before buying
Check whether you can find a calibration reference on your wall. If the plaster is patched and uneven, that step becomes the most annoying part of every scan and may push you toward a no-calibration model.
Check the drywall note. If your house is mostly single-layer drywall with a few plaster walls, the published mode depths serve you well in most of the building.
Where it falls short
The calibration requirement is the deal-breaker on lath and plaster. A no-calibration scanner simply starts, which on an unpredictable wall is worth more than an extra mode.
The stated drywall focus also means you are buying outside the manufacturer’s best use case for the exact wall this article is about.

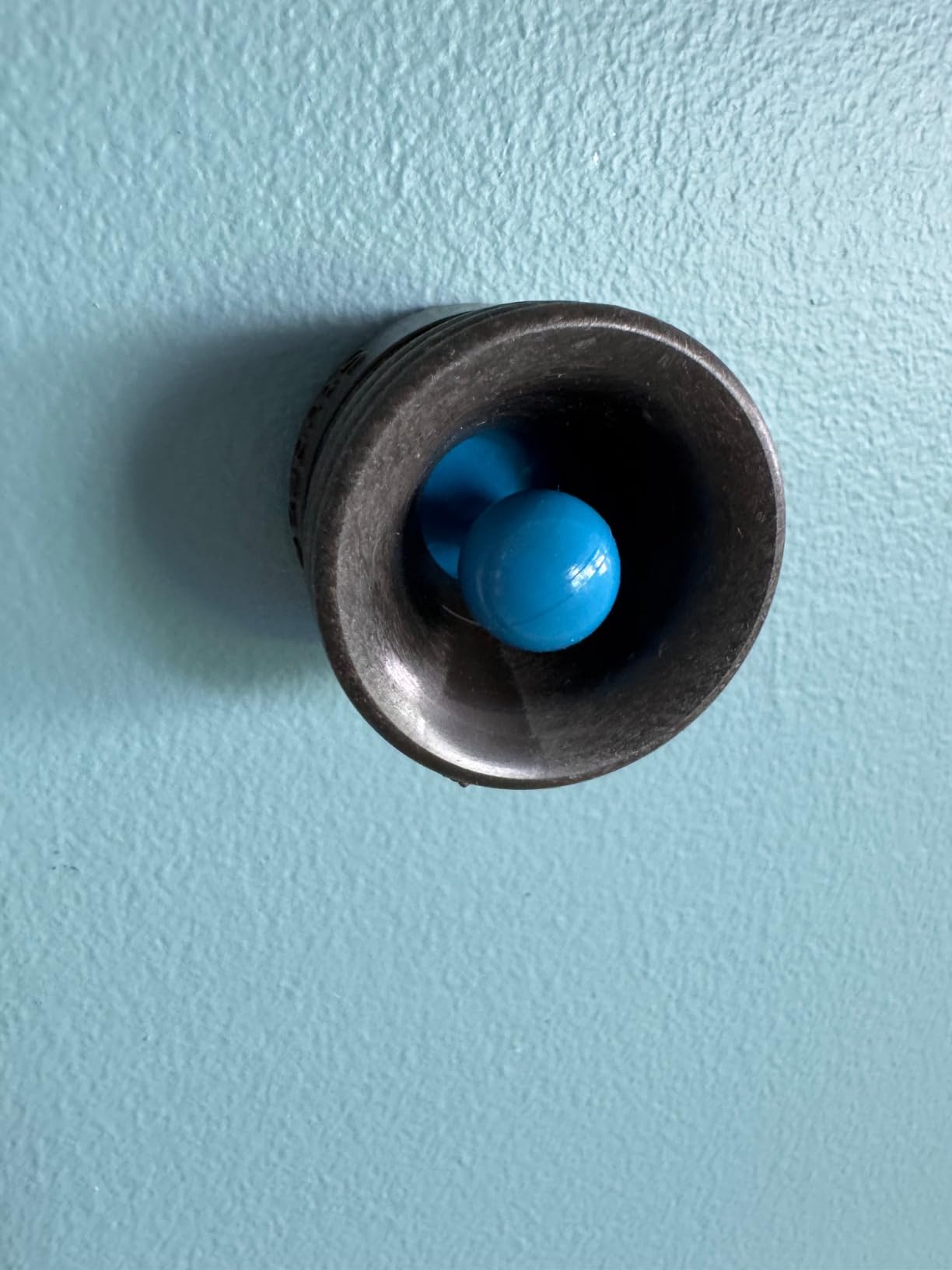

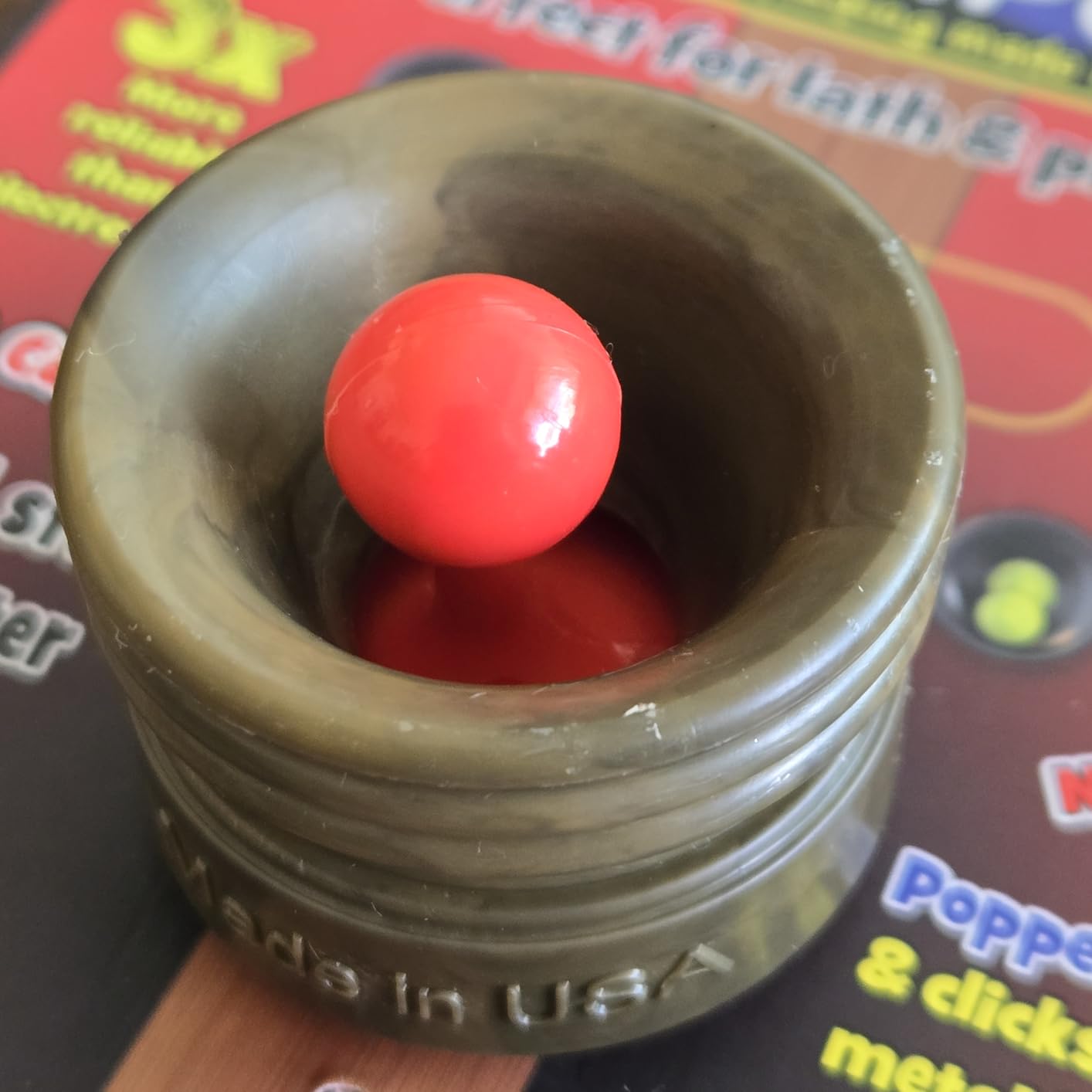

6. StudPoP Moving Magnet – Best for Lath and Plaster
Original StudPoP Moving Magnet Stud Finder, for Any Construction, 1″ Magnet
1 inch moving magnet,no batteries or calibration,works on plaster lath tile and metal studs,click and pop action
Pros
- Repeatedly praised by owners in 80-plus-year-old lath and plaster houses
- Click and pop-up action removes the guesswork of feeling for pull
- Battery-free so a weak battery can never derail it
- Works on tile plaster lath and double-layer sheetrock
- Tiny and cheap enough to keep several around
Cons
- Locates fasteners not the full stud width
- Can stick to irregular lath nails and give false positives
- Smaller than a golf ball and easy to lose
This is the tool people in old houses actually talk about. On r/HomeImprovement and r/DIY the StudPoP is the most-recommended magnetic finder for lath and plaster, because it looks for the nails holding lath to the framing, and those nails belong to studs no matter how thick the plaster.
The mechanism separates it from the yellow oval magnets everyone else sells. A 1 inch magnet rides on a pivot and pops up with a click when it finds a fastener, so you get audible and visual confirmation instead of a vague tug you have to interpret by feel. On a wall full of metal, that is everything.
It is also immune to the two problems that plague the electronic scanners here. There is no battery to die mid-scan and no calibration to lose on a patched wall. On steel lath it still works, because the lath nails are still tied to the studs.
Owners in 19th and 20th century homes report locating the first nail in seconds through thick plaster where electronics failed outright. The brand pushes hard against expensive electronic finders, and on this wall type the argument has merit.
What you should check before buying
Check what is holding the lath on. Rusted nails, deeply buried fasteners and irregular spacing all reduce the number of hits, so expect to identify a stud by collecting several nail locations rather than one.
Check whether your lath is nailed directly to studs, the normal method. Plaster over a masonry or furred section will not respond the same way.
Where it falls short
It locates fasteners, not the full width or center of a stud, so you infer the center from where the nails land. Plan on a second tool if you need exact screw placement for a heavy bracket.
On walls with lath over an added drywall layer, owners report it sticking to irregular nails and giving false positives. And at under 1.5 inch across, it is genuinely easy to lose in a full tool bag.

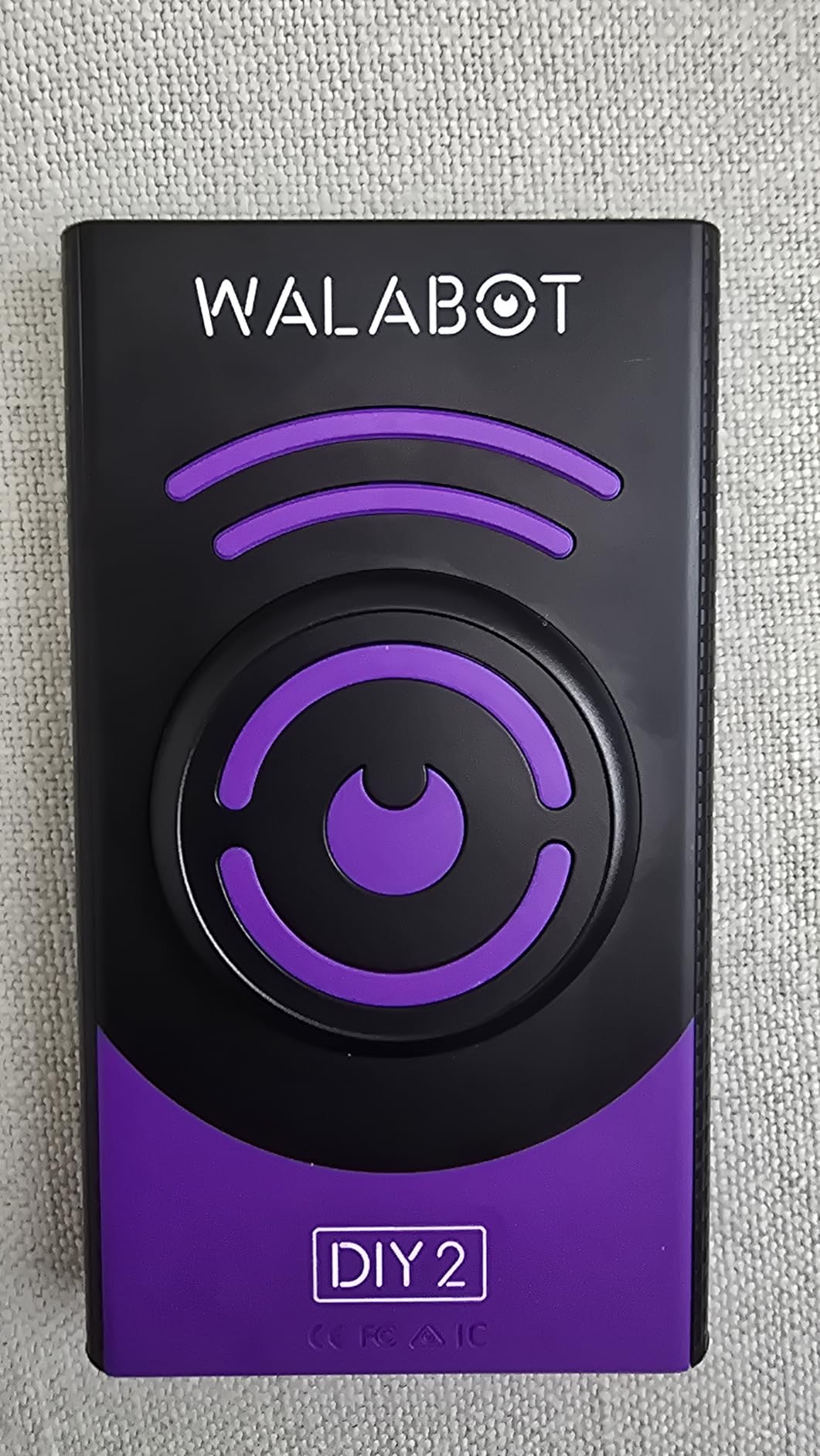

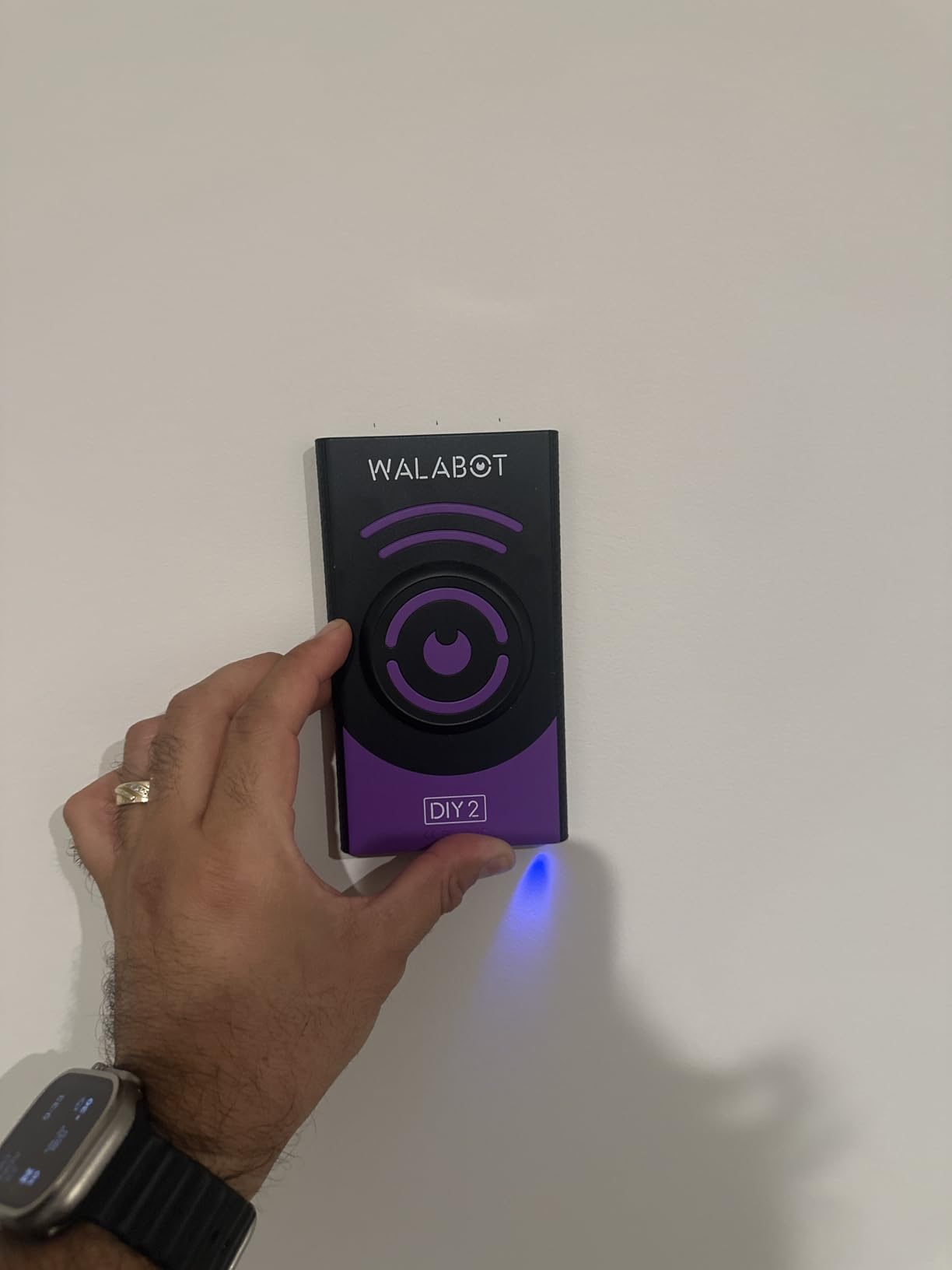

7. Walabot DIY 2 – Best Visual Scanner, Wrong Wall Type
Walabot DIY 2 – Visual Stud Finder & Wall Scanner for Drywall. Detects Wood & Metal Studs, Plastic & Metal Pipes, Live & Non-Live Wires
Phone-rendered visual wall map,4 inch detection depth,tracks pipes and wires,drywall and plywood only
Pros
- Phone-rendered map makes stud centers far easier to pinpoint than beeps
- Deepest detection in the roundup at 4 inches
- Tracks pipes and wires as well as framing
- Built-in Wi-Fi hotspot needs no home network
Cons
- Manufacturer explicitly excludes lath and plaster from supported surfaces
- Needs a phone and a per-wall calibration sweep every time
- App criticized for connection drops and a slow start
- Cannot reliably tell a pipe from a wire
We include this with a clear warning, because it is the scanner most people ask about by name and the answer for plaster is no. The manufacturer’s documentation says to use it only on drywall and plywood, and specifically not on lath and plaster, concrete, tile, brick, metal-backed walls or stucco.
That is not marketing caution. The device builds a picture from a single swept pass using a wide radio signal, and plaster over lath fills the wall with material that returns a confusing reflection. Owners on r/Tools report the same conclusion: excellent on everything else, a deal-breaker in old houses.
On drywall it is genuinely good. The rendered image shows stud centers and tracks pipes and wires, and owners who opened up their walls to check found the readings accurate. At 4 inches it is the deepest detection here, and the built-in Wi-Fi hotspot means it works without a home network.
The phone requirement is the other big drawback even on drywall. You need the device, the app and a calibration sweep in large circles every time, which is awkward alone on a ladder. The app draws complaints about dropped connections and no center-line reference.
What you should check before buying
Check the wall type against the supported list before anything else. If lath and plaster appears anywhere in your project, this is the wrong tool no matter how good it is elsewhere.
Check whether you are comfortable working one-handed with a phone on a ladder, because the calibration sweep needs both the device and steady sweeping motion.
Where it falls short
Its 4.1 average with a heavy one-star share reflects complaints about the app more than the hardware. The accuracy figure applies to the walls it supports.
It also cannot reliably distinguish a pipe from a wire, and it shows blocking or diagonal supports as studs, which matters in any wall with extra framing.

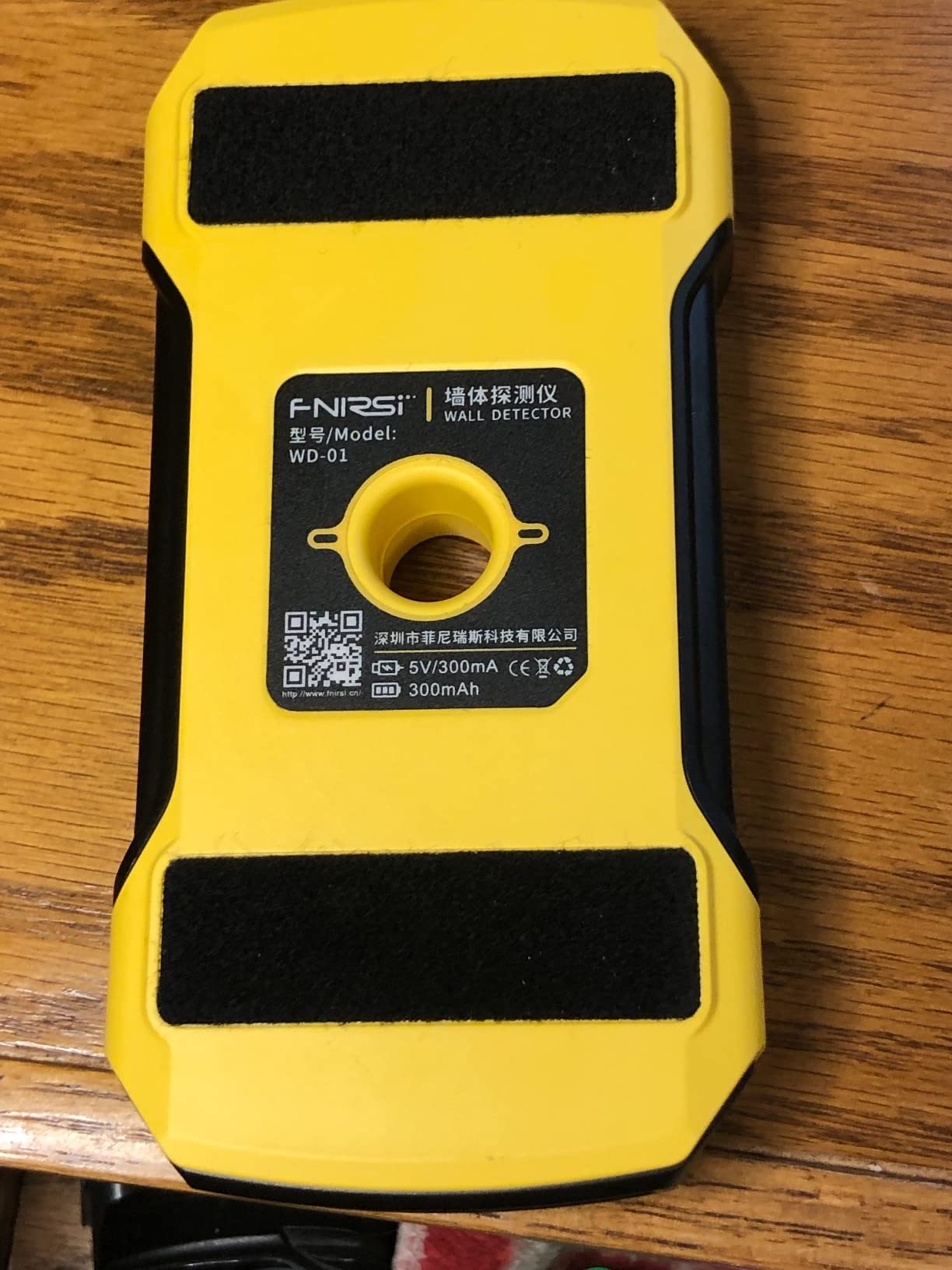

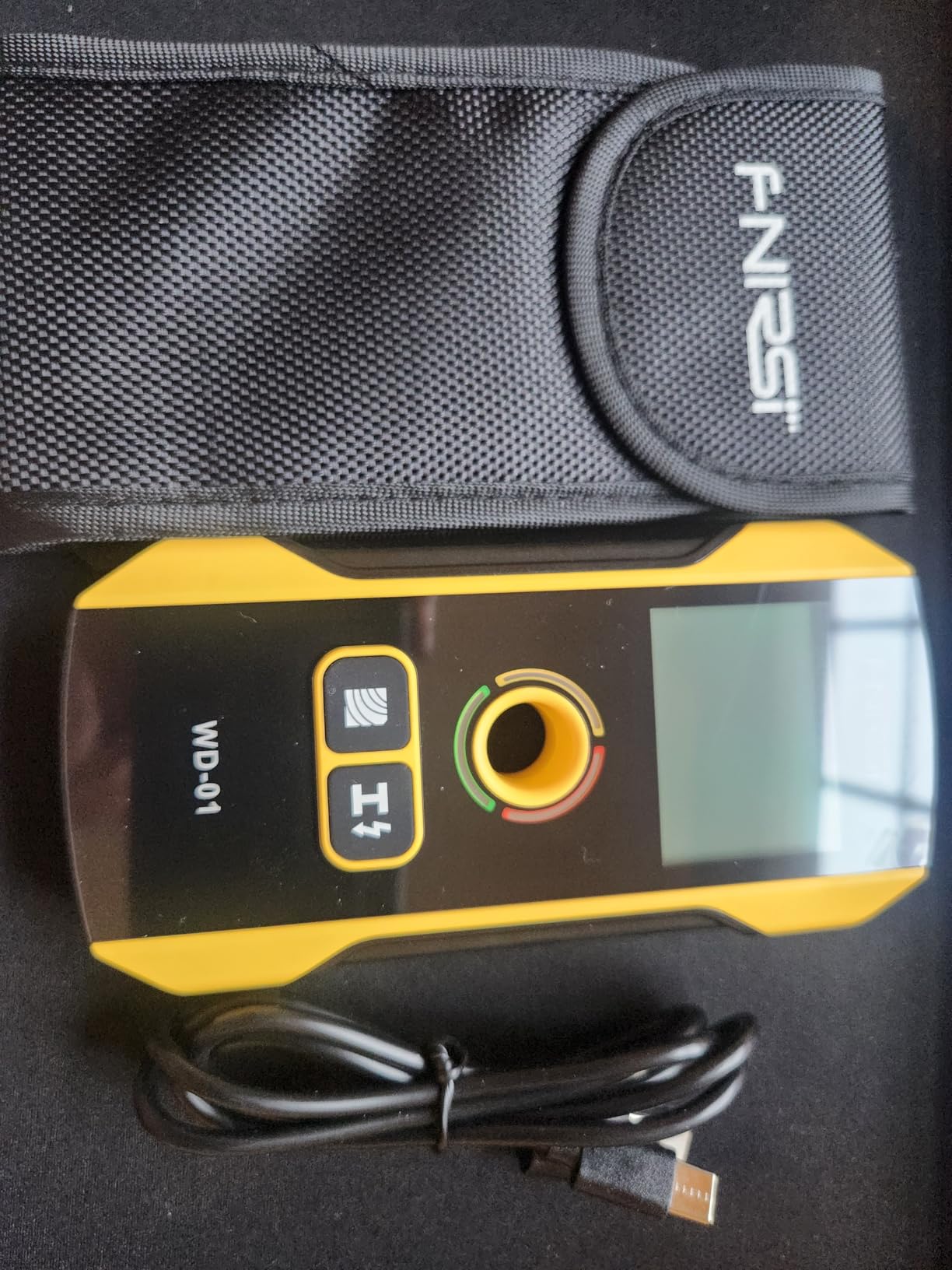

8. FNIRSI WD-01 – Best for Deep Metal Scanning
FNIRSI WD-01 6 in 1 Rechargeable Stud Finder Wall Scanner, Positioning Hole
6 detection modes with published depths,4.7 inch ferrous metal scan,rechargeable battery,positioning hole for marking
Pros
- Six modes with published depths including 4.7 inch ferrous and 3.9 inch copper
- Lithium polymer battery removes battery replacement
- Positioning hole helps mark the exact drilling point
- Manufacturer lists lath wallpaper and painted walls as supported
- Auto-calibration on any surface
Cons
- Center finding reported unreliable on lath and plaster even though lath is listed
- Stud depth reaches only 1.5 inches even in depth mode
- Some owners report false live-wire warnings
The WD-01 publishes more depth figures than anything else here, which is refreshing. It separates exact scan at 0.75 inch, depth scan at 1.5 inches, non-ferrous metal at 3.9 inches, ferrous metal at 4.7 inches, AC wire at 2 inches and copper wire at 1.6 inches.
Its metal detection is the real strength on plaster. Around steel lath or old cast-iron pipe, a 4.7 inch ferrous scan tells you what is there before you drill, and one owner used it successfully for rebar in concrete. The rechargeable lithium polymer battery removes the dead-battery problem entirely.
The integrated positioning hole is a small choice we appreciate more than expected. You align the hole with the reading and mark through it, which avoids the smudged pencil lines and accidental holes that come from marking beside the tool.
Here is the plaster problem: the manufacturer lists lath as supported, but owner reports say center and edge finding is unreliable on lath and plaster, with nail detection working better than true stud centering. At 1.5 inches of stud depth, the wall is still winning.
What you should check before buying
Check your steel lath exposure. With metal lath, a long ferrous scan is more useful than center-finding accuracy, and this tool does that better than anything else in the list.
Check the review base size. At 890 reviews it has the thinnest long-term record here, so treat the 4.3 average with some caution.
Where it falls short
Stud depth is 1.5 inches even in depth mode, the second shallowest in this roundup. The extra modes do not make it read deeper through plaster.
Some owners report false live-wire warnings, and one missed a metal plate behind drywall. Treat a warning as a stop signal and a silence as unproven.
9. Zircon MultiScanner A200 – Best Wire Warning and Display
Zircon® MultiScanner™ A200 Stud Finder with Metal & Live Wire Detection
StudScan DeepScan and Metal Scan modes,WireWarning live wire detection,backlit LCD with SpotLite,IP54 with lifetime warranty
Pros
- WireWarning alerts you to hot electrical wires before drilling
- Large backlit LCD stays readable in dim conditions
- DeepScan handles thicker walls better than basic scanners
- Low battery indicator on the 9V design
- IP54 rated with a limited lifetime warranty
Cons
- DeepScan tops out at 1-1/2 inches
- Some owners report intermittent false positives and negatives
- Bulky in the hand and awkward in tight spaces
- Requires calibration before each scan
The A200 is the most complete general-purpose scanner here for a house with old wiring, because WireWarning alerts you to hot electrical wires while Metal Scan tells you what else is in the wall. That pairing is a sensible first step in an untested building.
The display is the best in the roundup. It is large, backlit and paired with a SpotLite pointer, so you can mark an edge without fumbling in the dark. Owners who opened up their walls report that edge and center detection is accurate where the tool has signal.
Depth is the limit for plaster. StudScan reaches 3/4 inch and DeepScan reaches 1-1/2 inches, a similar ceiling to the cheaper multi-mode scanners. The build quality and lifetime warranty are real, but they do not change the physics of the wall.
It also requires a 1 to 2 second calibration hold, and a minority of owners report the intermittent false positives and negatives you get from any sensor on lath.
What you should check before buying
Check where the outlets are. If they are surface-mounted on conduit rather than nailed to a stud, the usual outlet-box trick to anchor your layout does not apply and you will lean on the scanner more.
Check the IP54 rating if you work in a basement or unheated space, and check the warranty if you plan to keep this tool for decades.
Where it falls short
The bulk is real. At nearly 0.37 kg and over 7.7 inches tall, it is awkward overhead or in a room corner, and owners mention it directly.
At 815 reviews it has a thinner owner record than the ProSensor units, and its 1-1/2 inch DeepScan ceiling is not enough for the thickest plaster walls.
10. PREXISO 2 in 1 Laser Combo – Best Marking, Excluded for Plaster
PREXISO 2-in-1 Stud Finder with Laser Level, Rechargeable Cross Line Laser
2 in 1 stud finder and cross line laser,3/4 inch stud depth,auto laser line on edge detection,USB Type-C rechargeable
Pros
- Combines a stud finder and a cross line laser in one rechargeable tool
- Auto-projected vertical laser line makes edge marking hands-free
- Audio alert and red LEDs confirm edge detection
- Wall mount with pins and adhesive strips for hands-free work
Cons
- Manufacturer explicitly states it is not designed for lath and plaster walls
- Shallowest stud depth in the electronic group at 3/4 inch
- Laser is manual-leveling not self-leveling
- Adhesive strips are unsuitable for wallpaper and drywall
The idea is appealing: a rechargeable stud finder that projects its own vertical laser line the moment it detects a stud edge, so you can mark a straight line across the wall hands-free. The 360 degree wall mount with two pins, six adhesive strips and a top pin hole covers several surfaces.
It is also the second product here that disqualifies itself for plaster in writing. The tip list says it is not designed for lath and plaster walls and works best on drywall and wood walls. The adhesive strips, the method you would use on old plaster, are called out as unsuitable for wallpaper and drywall.
The depth figures underline the point: 3/4 inch for wood and metal studs and 1-1/2 inches for live AC wire. That is shallow even for drywall and nowhere near enough for a plaster and lath assembly.
Owners like the two-in-one convenience and the rechargeable battery, but a 4.1 average with a heavy one-star share shows the friction. The laser is manual-leveling, and the bubble vials only work in laser mode, which is a confusing rule to learn mid-job.
What you should check before buying
Check whether your walls are drywall. On a newer house where the stud finder and the laser both do real work, this is a good buy.
Check whether you need the laser to be self-leveling. On a run of cabinets on a slightly out-of-level wall, manual leveling means more adjustment than you might expect.
Where it falls short
The plaster exclusion is the headline problem, and the adhesive strips being unsuited to wallpaper and drywall means the mounting system also underperforms on the surfaces this article is about.
At 3/4 inch it is the shallowest electronic unit here. Even on a thin wall you are working at the edge of its range.
11. Klein Tools MSF100 – Best Magnet That Will Not Mark Plaster
Klein Tools MSF100 Magnetic Stud Finder and Level, Compact, Wood and Metal Detector with Bubble Vial for Accurate Markings, Felt Pad Backing
N52 rare-earth magnet,felt pad backing protects plaster,bubble vial with top notch and bottom opening,1.76 ounces battery free
Pros
- Felt pad backing will not mark or abrade plaster or drywall
- N52 rare-earth magnet gives quick firm detection of fasteners
- Top notch and bottom opening make marking straightforward
- Bubble vial helps you mark a level line
- Battery-free and light enough to carry anywhere
Cons
- Detects fasteners only
- not the full width or center of a stud
- Magnet strength drops on very thick plaster over lath
- Compact size means a small target area and slow sweeping
The Klein MSF100 solves a problem the other magnetic finders ignore: the surface. Its backing is felt, and the manufacturer states it will not mark drywall or plaster while you work. On wallpapered or freshly skimmed plaster, that is a real difference from bare plastic dragging across the surface.
The magnet is an N52 rare-earth unit, the strongest common grade, giving quick detection of screws and metal studs. The top notch and bottom opening are there for marking, and the integrated bubble vial means you can lay a level line as you find framing.
Another feature we did not expect to care about: you can leave several stuck on a wall as reference points while you work. On a plaster layout around a window or a long shelf run, that saves constant re-scanning.
Like every magnetic finder it tells you where fasteners are, not the stud center. And on the thickest plaster-over-lath walls the pull weakens enough that you need to sweep slowly and more than once in the same spot.
What you should check before buying
Check your wall surface. On wallpapered, painted or freshly skimmed plaster, the felt backing is the reason to pick this over a bare plastic magnet. On drywall, either works.
Check the fastener pattern. This finds nails and screws, so a wall with sparse or irregularly placed fasteners gives fewer hits and more inference.
Where it falls short
It gives no sense of stud width or center, so a heavy bracket still needs a second tool or a trial hole to place the screw.
The compact target area means slow sweeping, and that gets tiring on a large wall. It is a confirmation tool rather than a mapping tool.
12. C.H. Hanson 03040 Magnetic – Best Rated Magnetic Finder
CH Hanson Magnetic Stud Finder | Battery-Free Stud Locator with Rare Earth Magnets | Finds Nails & Screws Behind Drywall | Built-In Level for TV Mounting, Shelves & Home Projects
Rare-earth magnet,rotating integrated level vial,0.15 lbs,no batteries or calibration,lifetime warranty
Pros
- Highest average rating in the roundup at 4.7 with 86% five-star
- Rare-earth magnet holds firmly to screws in thick plaster
- Zero setup with no batteries charging or calibration
- Rotating built-in level marks horizontal and vertical lines
- Backed by a limited lifetime warranty
Cons
- Finds nails and screws
- so stud center must be averaged from several hits
- Magnet pull weakens in very thick plaster over lath
- Less reliable for built-up joists or beams
This carries the highest average rating of anything we tested, and the reason shows up in plaster-specific owner reports. People with original plaster describe it holding onto framing screws with enough force to be certain, including one owner who used it to find studs for a closet installation.
The rotating integrated level is what makes it more than a plain magnet. Instead of picking it up, turning it and putting it down, you rotate the vial to the axis you need and mark a level or plumb line in one pass. For a long mirror or a run of shelving, that is the difference between a quick job and a long one.
At 0.15 lbs it fits in a pocket, and there is no battery, no charging and no calibration to think about. The limited lifetime warranty is a quiet signal about how the manufacturer expects the tool to hold up.
Owners also note pairing it with an electronic wire detector, the same two-tool logic we recommend with the roles reversed. The recurring caveat is that it locates fasteners rather than stud centers, so you average several hits to place a screw.
What you should check before buying
Check whether you are marking long level lines. If your plaster job involves a horizontal run at a set height, the rotating vial removes a whole category of fussy work.
Check how thick your plaster actually is. The magnet works to normal lath and plaster thickness and weakens on the heaviest builds, so measure at a doorway reveal before relying on it alone.
Where it falls short
It is less reliable for built-up joists or beams than for standard framing, and one owner with non-standard wall construction found it less effective than expected.
At 521 reviews it has one of the smaller owner bases in this roundup, so treat the strong rating as well-earned but not exhaustively tested.
How to Use a Stud Finder on Plaster Walls Correctly
Technique matters as much as the tool here. A badly run scan produces false readings on a good scanner, and a well-run scan rescues a mediocre one. This is the sequence we use.
1. Start from a known anchor. Find an outlet or switch box, since those are normally nailed to a stud. Mark it and work outward in 16 inch steps, remembering that spacing near corners, windows and doors is often not standard.
2. Calibrate, or skip it. If your tool requires calibration, place it on a clean area away from the suspect framing and hold for the beep. If it does not, go straight to scanning. On uneven plaster, a failed calibration produces confident wrong answers.
3. Scan slowly, in one direction. Sweep at roughly the speed of a slow crawl. Most false readings come from moving too fast, because the sensor averages the lath grid before the signal settles.
4. Repeat the pass two more times. Scan the same line again from the same direction, then once from the opposite side. A real stud gives a similar reading every time. A lath strip drifts or changes width. Consistency across passes is the most useful signal on a plaster wall.
5. Read edges, then confirm the center. Note both edges and mark the midpoint. Then sweep a magnetic finder over your marks. If it grabs a fastener inside that midpoint, you have a stud. If not, you probably have lath.
6. Verify with a pilot hole before anything heavy. For a TV, a mirror or a cabinet, drill a small hole at your mark first. Nothing on this list replaces that step, and on a pre-1970 wall treat silence from a wire detector as unproven rather than safe.
How to Find Studs in Plaster Without a Stud Finder
If you would rather not buy anything yet, five methods work on lath and plaster. All need only tools you likely already own.
Trace from an outlet box. Switch and outlet boxes are almost always fastened to a stud. Mark the stud beside the nearest one and measure outward in 16 inch increments. This is the fastest way to anchor a layout in an empty room with no other reference.
Sweep a magnet on a string. Tie a strong rare-earth magnet to a length of string and drag it across the wall. It catches the lath nails and snaps at each one. The trick goes back to Fine Homebuilding forum advice from 2005 and is still the most repeated free method, and on lath and plaster it is a legitimate primary technique rather than a backup.
Knock and listen. A stud reads as a solid thud, while a lath and plaster cavity sounds hollow with a slight rattle. It is slow, but it confirms a reading for free and takes about a minute for a whole wall.
Measure from known openings. Studs are typically 16 inches on center, and header framing runs above doors and windows at a predictable offset. In a room with one visible opening you can lay out a whole wall with a tape measure.
Look through a small hole. If a reading matters and you are still unsure, drill a small inspection hole and insert a borescope. You will see the stud, the pipes or the wire directly, and a small hole in plaster patches easily with filler and paint.
Buying Guide: Choosing a Stud Finder for Plaster
Six things decide whether a scanner works behind plaster. Check them in this order and most wrong purchases disappear.
1. Detection depth, stated in inches. Look for a published maximum, not a deep scan label. Most of what we tested sit between 3/4 inch and 1.7 inches for wood framing. Measure your plaster thickness at a doorway reveal, add the lath and finish coat, then buy the deepest tool that still reads that number. On a thick wall, depth outranks every other spec.
2. Sensor count. Conventional finders use one or two sensors and sample a narrow band of wall. Nine sensors or more is what lets a scanner show the full width of a stud, detect a double stud and give a true center instead of an edge. Where the lath grid creates noise, a wider array is the difference between a usable reading and a mystery.
3. Live wire detection, if your house is old. In a home built before 1970, assume cloth-wrapped or knob-and-tube wiring may be present and a live AC warning is not a luxury. Several products here have it, and one option gives a dedicated AC mode reaching 2 inches.
4. Calibration behaviour. No-calibration scanners start anywhere on the wall, a large advantage on plaster with patches and uneven thickness. If yours must calibrate, expect to hunt for a clean reference spot every time.
5. Whether the manufacturer supports your wall. Read the exclusions. Two tools here state plainly that lath and plaster is out of scope, and one lists lath as supported while owner reports say its center finding is unreliable there. A published exclusion is more useful than a vague claim of versatility.
6. Surface treatment on a magnetic finder. If you go the magnet route, check for a backing that will not mark the wall. Felt matters on wallpapered or freshly skimmed plaster, and a rotating level vial saves real time when marking long lines.
One note on phone-based scanning. Apps and radar-style wall scanners are excellent on drywall and unreliable or explicitly unsupported on lath and plaster, because plaster over metal lath reflects the signal in ways those systems do not model. Treat a phone app as a drywall tool only.
If your project is not about the wall but about the hardware going on it, our guides to video walls for churches and LED video walls for businesses cover the mounting side, where knowing your wall construction matters just as much.
Frequently Asked Questions
Do stud finders work on plaster walls?
They work, with caveats. Wood lath strips behind the plaster create false readings, and standard 1 to 1.5 inch detection depth is often not enough. A multi-sensor deep-scan electronic scanner maps the wall, and a rare-earth magnetic finder confirms it by grabbing the nails holding lath to the studs. Use both and scan slowly in three passes.
Will a stud finder work on lath and plaster walls?
Partly. A single sensor electronic finder reads the horizontal lath strips as framing and gives you a grid of false positives. A 9 or 13 sensor model with published depth handles it better, and calibration-free models are worth preferring because patched plaster confuses calibration. On steel lath, switch to the magnet as your primary tool.
Does Walabot work on plaster walls?
No. The Walabot DIY 2 documentation says to use it only on drywall and plywood, and specifically not on lath and plaster, concrete, tile, brick or stucco. Users confirm the same in practice. It is an excellent drywall scanner at 4 inches of depth, and a poor choice for an old house with original plaster.
How can I find studs in plaster walls without using a stud finder?
Trace from an outlet or switch box, which is almost always nailed to a stud, then measure outward in 16 inch steps. Sweep a strong magnet on a string across the wall to catch lath nails. Knock along the wall and listen for a solid thud instead of a hollow rattle. A borescope through a small inspection hole gives a definitive answer.
What are the disadvantages of using a magnetic stud finder?
It finds fasteners, not the full width or center of a stud, so you have to infer the center from where the nails land. It cannot detect a stud with no metal in it, pull weakens on very thick plaster, and it will stick to pipes, nails and brackets. On steel lath it is the better tool, but it cannot find live wires.
How deep can a stud finder detect?
Most standard models reach 3/4 inch, good deep-scan models reach 1-1/2 inches, and the strongest units tested here reach 1.6 to 1.7 inches. Metal-specific modes go much further, up to nearly 5 inches for ferrous metal. Plaster over lath commonly needs more than the standard figure, so check your wall thickness before buying.
How strong of a magnet do you need to find a stud?
A rare-earth magnet of the N52 grade is the practical choice for plaster walls, because it holds firmly to screws through thick plaster and lath. The key detail is feedback: a finder that clicks or pops up on a fastener removes the guesswork of feeling for a tug. Always confirm the hit is a stud and not a pipe or an electrical box.
How far apart are wall studs?
Traditionally studs sit 16 inches on center, which is center-to-center, not 16 inches of gap. Old houses are full of exceptions, especially around windows, doors, fireplaces and closets, so measure from a known anchor such as an outlet box rather than assuming the spacing holds across the room.
The Bottom Line on Finding Studs in Plaster
There is no single best stud finder for plaster walls, because the wall defeats one kind of sensor and leaves another working perfectly. The best stud finder for plaster walls overall is the Franklin Sensors ProSensor 710+, and in 2026 the right way to use it is with a rare-earth magnet beside it. Map with the scanner, confirm with the magnet, and verify with a pilot hole before anything heavy goes on the wall.
Pick the ProSensor M210 if live wire warning matters in your home, the StudPoP if your plaster is thick enough that electronics give up, and skip phone-based scanners entirely, since their own documentation rules them out on lath and plaster. In every case, scan slowly, repeat the pass, and trust the reading that comes back the same three times.
