A well pump for a home water system is an electrically powered pump that draws groundwater from a private well casing and delivers it into the home’s plumbing, feeding a pressure tank that stores and pressurizes the water between pump cycles. The pump is the single most expensive and failure-prone part of a private well system, and an incorrectly sized one can shorten its own life, wear out the well, and create chronic low pressure that no amount of switch adjustment will ever fix.
The best well pump for most households is a correctly sized submersible or jet pump matched to your well depth, static water level, and yield. Everything beyond that is preference. We compared ten residential well pumps across shallow jet, convertible jet, deep submersible, garden booster, and off-grid solar categories, checking horsepower, voltage, flow, maximum head, included control hardware, and the failure patterns owners actually describe in review data.
Two things came out of this roundup that surprised us. First, the gap between the most and least expensive pump in this group is a quality gap, not just a materials gap. Second, almost every complaint we found traces back to two avoidable installation choices: setting the pump too high in the casing, or matching horsepower to well depth rather than to the flow you need at your actual water level.
Owners in the plumbing forums we read ask one question more than any other: what are the industry standard brands for submersible pump motors and control boxes. It is a good question, and it has a shorter answer than most sellers suggest. The name on the motor matters less than whether the control box, capacitor, and pressure switch are carried by a local pump supplier and whether the manufacturer honors the warranty in writing.
Table of Contents
Top 3 Well Pumps for Home Water Systems in 2026
These three cover the most common residential situations. The Hallmark is the strongest all-rounder, the VEVOR is the strongest value at depth, and the Goulds is the strongest shallow-well build in the group.
Hallmark MA0414X-7 1 HP Submersible
- 33 GPM max flow
- 207 ft max head
- 115V
- Stainless steel and thermoplastic
Goulds J5S 1/2 HP Jet Pump
- 16.5 GPM
- 25 ft suction lift
- 115/230V capacitor start
- 30-50 PSI switch
Best Well Pumps for Home Water Systems (October 2026)
The table below is the fastest way to narrow the field. Flow figures are maximum ratings rather than delivery at depth, so read the head number alongside them before deciding.
| Product | Specifications | Action |
|---|---|---|
| Hallmark MA0414X-7 1 HP Submersible |
|
Check Latest Price |
 Acquaer 1 HP Convertible Jet Pump |
|
Check Latest Price |
 Red Lion RJS-100-PREM 1 HP Jet Pump |
|
Check Latest Price |
 VEVOR 1 HP 115V Submersible |
|
Check Latest Price |
| Goulds J5S 1/2 HP Jet Pump |
|
Check Latest Price |
 Red Lion RJS-75-PREM 3/4 HP Jet Pump |
|
Check Latest Price |
 VEVOR 1.1 HP Portable Garden Jet Pump |
|
Check Latest Price |
 AQUASTRONG 1.5 HP Centrifugal Pump |
|
Check Latest Price |
 ECO-WORTHY 12V DC Solar Submersible |
|
Check Latest Price |
 Aquastrong 1.6 HP Stainless Steel Jet Pump |
|
Check Latest Price |
1. Hallmark MA0414X-7 – Our Top Pick for a Deep Residential Well
Hallmark Industries MA0414X-7 Deep Well Submersible Pump, 1HP, 110V 60HZ, 33 Gpm, Stainless Steel, Long Life
1 HP
33 GPM max flow
207 ft max head
115V
3.8 inch OD for 4 inch casing
Pros
- Strong steady flow suited to household and irrigation use
- Quiet smooth start and stop cycles
- Stainless steel and thermoplastic body
- Includes splice kit and lead wire
- 115V operation suits generator backup
Cons
- Thin gauge lead and ground wires
- Only about 5 feet of lead wire included
- Top check valve can stick and air lock
- Not built to the durability of premium tier pumps
This is the pump we would put into most deep wells between roughly 100 and 200 feet, and it carries one of the two largest review bases in the group at 1231 ratings. The 1 HP motor delivers up to 33 GPM with a 207 ft maximum head rating, which gives enough margin for a well with a static level near 50 feet. Owners working wells to about 85 ft report strong pressure out of the box.
What stands out in the review data is the consistency rather than the peak numbers. Multiple owners describe five to ten years of service, and the recurring praise is for quiet running and smooth cycling rather than raw flow. That quietness matters more than most buyers expect, because a pump that thumps against a pressure tank is a pump that wears its own pipe fittings out.

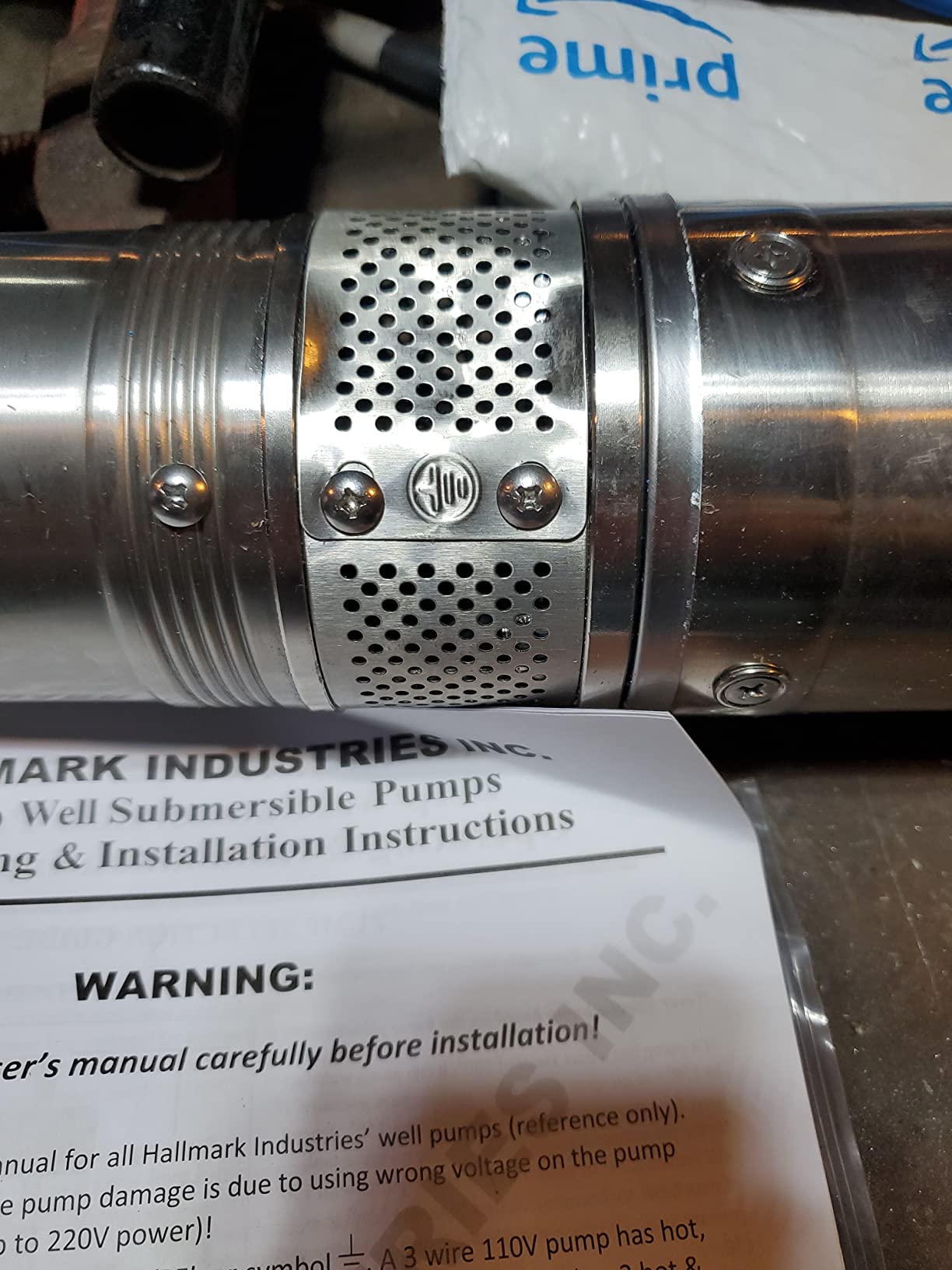

The construction is stainless steel and thermoplastic with a 3.8 inch maximum outer diameter, so it clears standard 4 inch casing and standard pitless adapters without reworking anything. Discharge is 1-1/4 inch NPT, which is the common size for pressure tank tees. The pump weighs 28 pounds and the package measures 32 inches long by 3.8 inches square. The box includes a splice kit and the manual, which covers a basic hookup but leaves the deep set short on cable.

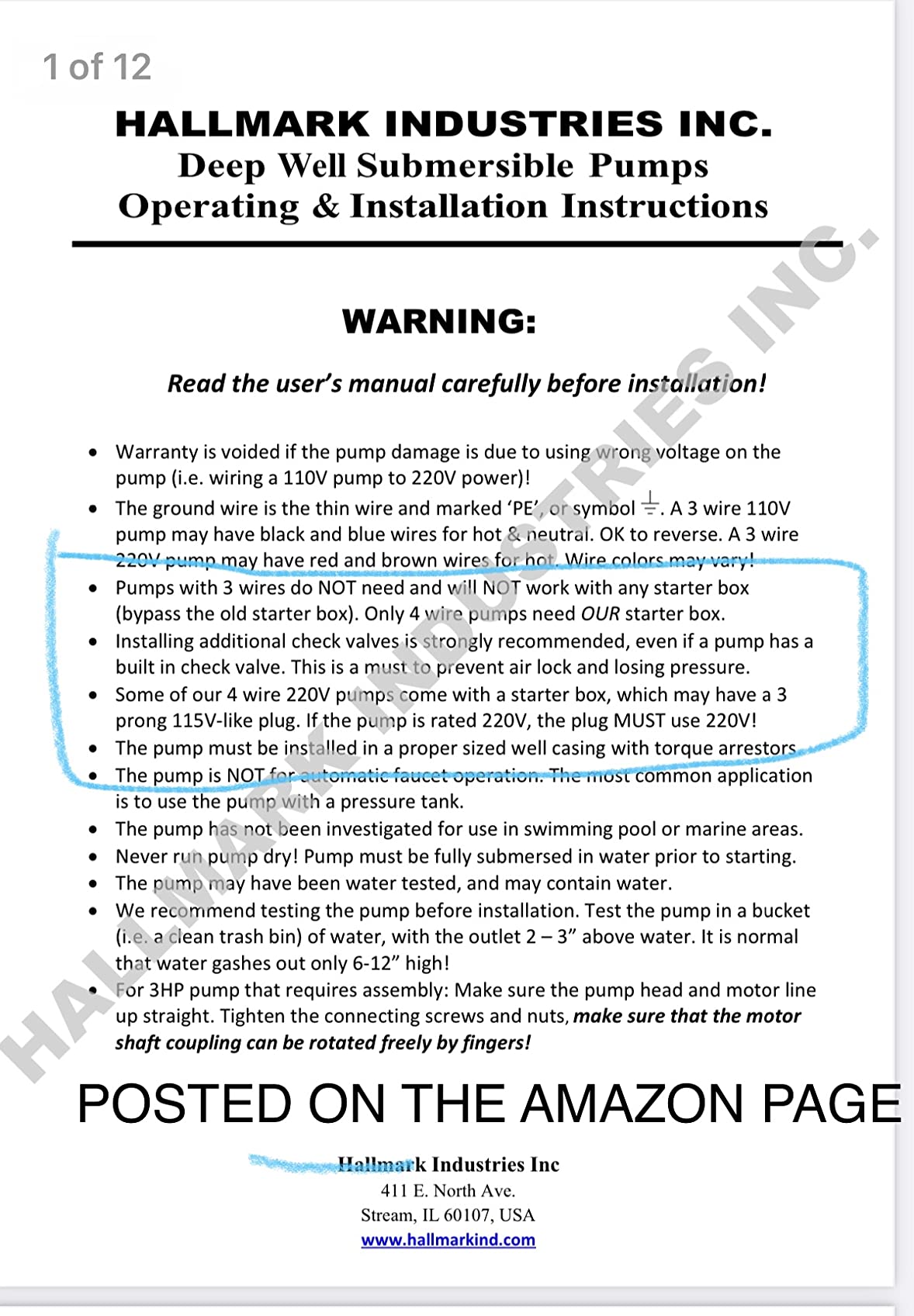

The wiring is the weak point and every reviewer knows it. Owners repeatedly flag the lead wires and ground wire as thin gauge, and roughly 5 feet of lead is all you get in the box, so most installations add their own drop cable. If your pump is going to 150 feet or deeper, budget for a properly sized cable and a real waterproof splice kit rather than stretching what is in the box.
What you get when you size it right
The honest strength of this pump is the overlap between its head rating and typical residential wells. A 207 ft maximum head against a 1 HP motor means the pump still has useful flow well past the point most household wells actually operate, which leaves room for drawdown as the water table drops over a dry season. That margin is exactly what you want in a rural well that has not been yield tested in a decade.
The 115V supply is the second practical advantage. It means the pump can run off a portable generator during an outage without a transfer switch sized for 230V, which is a real convenience for households that depend on the well for drinking water during a power failure.
Where owners report trouble
The most common complaint is the integrated top check valve sticking or air-locking, which forces you to pull the pump and re-prime it. That is an above-ground-water problem and a nasty one on a deep set, because the fix happens at the bottom of the well instead of in the basement. Not every unit does it, but owners who have experienced it describe the pump humming without moving water.
Second, several reviews mention warranty service and early rust on the shaft, and a steady group notes the build simply is not in the same class as pumps in the four-hundred-dollar range. We would call that fair. You are buying flow per dollar here, not a fifteen-year motor with a serviceable capacitor above ground.

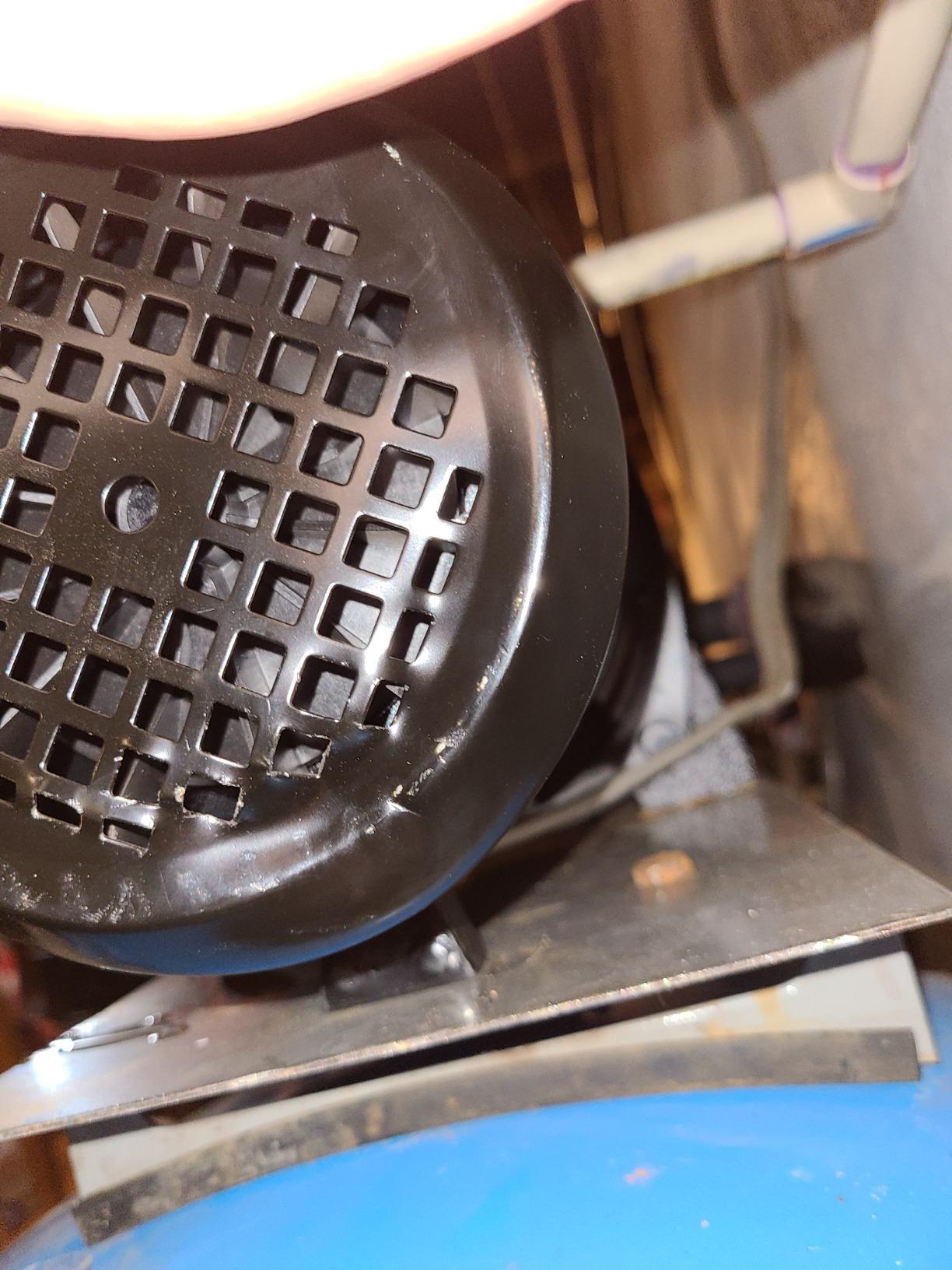

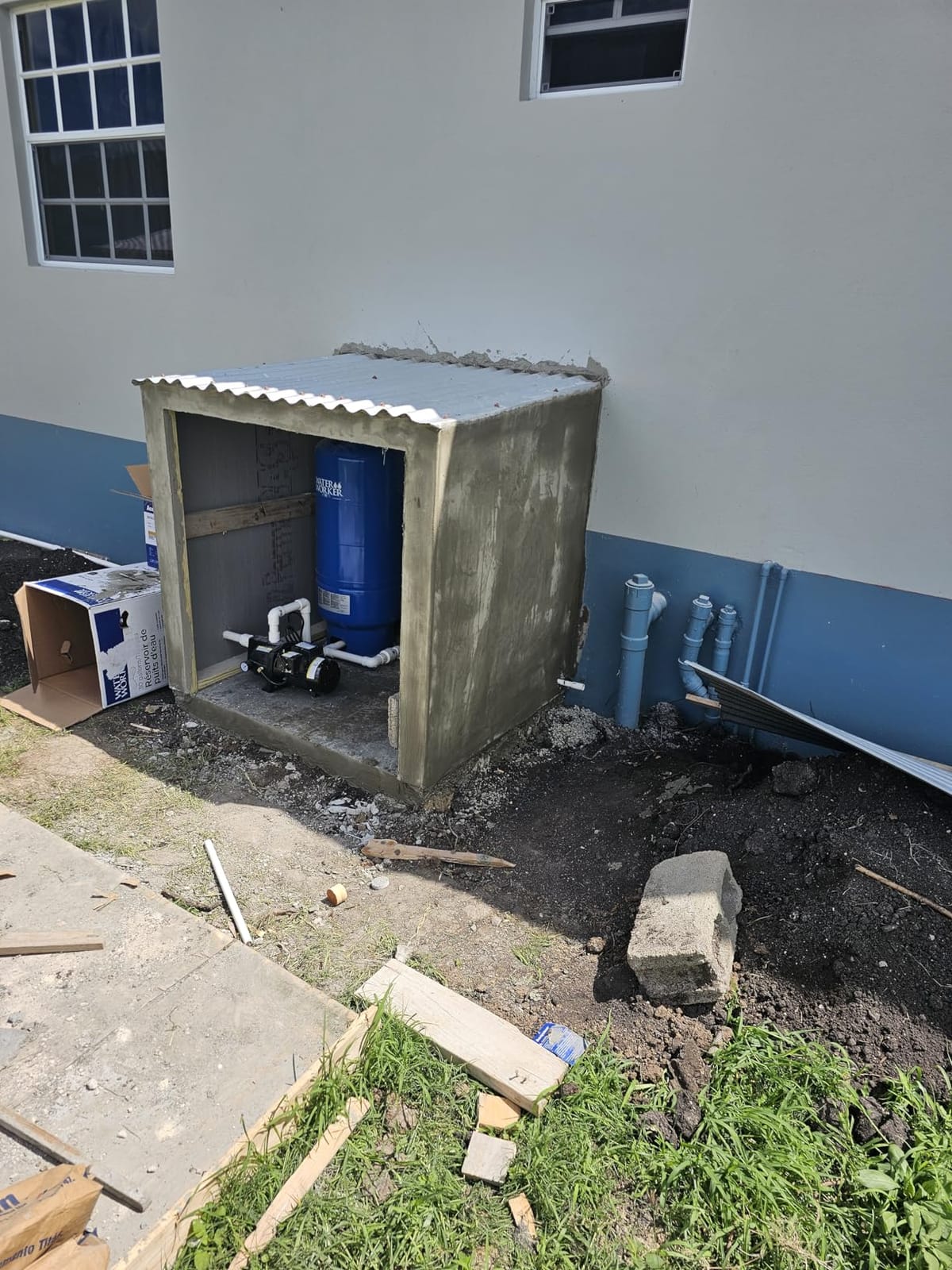

2. Acquaer CJE100-1 – Best Convertible Shallow and Deep Jet Pump
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP
25.9 GPM
25 ft shallow or 90 ft deep
115/230V
Cast iron
Pros
- One pump covers shallow single-pipe and deep two-pipe installs
- Dual voltage motor adds installation flexibility
- Automatic pressure switch for unattended supply
- Rugged cast iron volute with sealed construction
- Quiet and easier to install than expected
Cons
- Ejector and venturi setup is complex for first time installers
- 12 percent of reviews are one star
Most jet pumps are single-purpose. This one ships with venturis and an ejector kit so the same pump handles a single-pipe shallow well from 0 to 25 feet or a two-pipe deep well out to 90 feet. For a homeowner who does not yet know whether the well casing can support a two-pipe install, that flexibility removes the most expensive guess in the whole job.
It is a 1 HP cast iron pump rated at 25.9 GPM with a 164 ft maximum lifting height, and it comes with a factory set to 230V that can be run on 115V or 230V. The built-in pressure switch handles unattended household supply on its own, starting below 20 PSI and shutting off above 40 PSI, and an automatic thermal overload cuts power if the pump ever runs dry.
That pressure switch setting is worth flagging. A 20 on and 40 off window is noticeably lower than the 40/60 convention most plumbers use, so a household that wants a 60 PSI working pressure will want a different switch or a constant-pressure controller upstream. Buyers who accepted the factory setting report steady supply, and the pump itself draws 10.2 amps on 115V, which is a manageable load for most residential service.
The 1-star share is the reason this pump is not higher in the ranking. Twelve percent of reviews are one star, more than most pumps in this category, and the complaints cluster on installation rather than on performance after installation. Buyers working entirely new ejector assemblies report being caught out by the fitting sequence and the venturi sizing.
Why convertible matters more than the spec sheet
The real question for a jet pump is suction lift, not the head number in the listing. A self-priming jet pump has to lift water to itself before it can prime, and that lift is a physical limit of about 25 feet in practice. A convertible pump extends the practical range by moving part of the pump down the casing with an ejector, and this pump takes that to 90 feet.
That makes it the sensible pick when you are replacing a shallow jet pump but suspect the well can go deeper, or when a property has both a shallow well for irrigation and a deeper casing for the house. The dual voltage motor is the other quiet win, since it removes a rewire if the panel at the pump location happens to be 115V.
Who should skip it
Skip this pump if your well is deeper than 90 feet or if your static water level sits far down the casing. Past that range you are into true deep-well territory where a submersible is smaller, cheaper to plumb, and easier to service than a surface pump with an ejector assembly.
Also skip it if you are comfortable with nothing more than a hose and a wrench. The 1-star reviews are overwhelmingly about setup, not about the pump failing later. If you would rather have a self-contained submersible that just gets lowered in, the Hallmark in the previous section is the opposite experience.

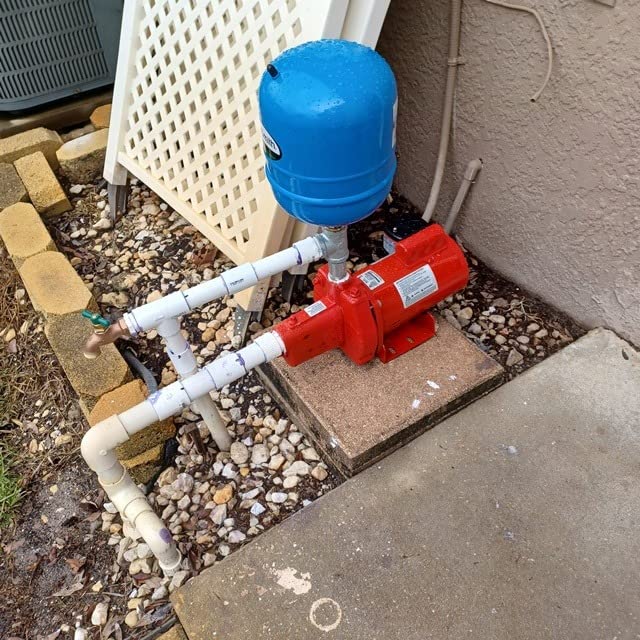

3. Red Lion RJS-100-PREM – High-Flow 1 HP Shallow Well Jet Pump
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
1 HP
23 GPM
150 ft max head
65 PSI max
115/230V
Pros
- Factory pre-set 30/50 pressure switch and gauge in the box
- Cast iron casing and volute with thermoplastic impeller
- 23 GPM suits large homes and small farms
- Run on 115V or 230V depending on supply
Cons
- Lowest average rating in this roundup at 3.9 stars
- Voltage must be matched to the supply at install
- Owners report some premature motor and capacitor failures
This is a Franklin Electric Canada built 1 HP cast iron jet pump, and the factory-installed hardware is the reason to look at it. The 30/50 pressure switch and a pressure gauge come pre-set in the box, so you are not hunting for parts on install day. For a homeowner replacing a failed pump with a known-good 40/60 switch, the matching factory setting removes one variable.
Flow is 23 GPM with a 150 ft maximum head and a 65 PSI maximum working pressure. Suction is 1-1/4 inch FNPT and discharge is 1 inch FNPT. It draws 17.6 amps at 115V or 8.8 amps at 230V, and the glass-filled thermoplastic impeller and diffuser are a meaningful step up from the plastic wheels on entry-level pumps.
At 41 pounds this is a substantial casting, and the 17.8 by 9.1 inch footprint means plan the pad accordingly. The CSA listing in the US and Canada is useful if you are anywhere that requires it, and the included start capacitor gives it the extra starting torque that a loaded jet pump needs on the first surge.
Here is the honest problem. At 3.9 stars across 816 ratings, this is the lowest-rated pump in the roundup, and 17 percent of the reviews are one star. Those are not noise reviews. They describe motors and capacitors failing early, and that pattern matters on a pump whose most common failure mode lives inside a surface-mounted motor housing.
Where the hardware earns its keep
Compared with assembling an equivalent pump from a bare casting, a body, a switch, a gauge, and a capacitor, this is the tidier package. The pre-set switch also means the cut-in and cut-out values are documented by the manufacturer, which makes diagnosing short cycling later far easier than a switch someone adjusted in a basement a decade ago.
The 23 GPM rating is the other argument. If you are running irrigation alongside household use, or you have a large home with multiple bathrooms and a lawn that draws at the same time, the extra flow over a half horsepower pump is the difference between steady pressure and a shower that drops when the sprinkler zone kicks on.

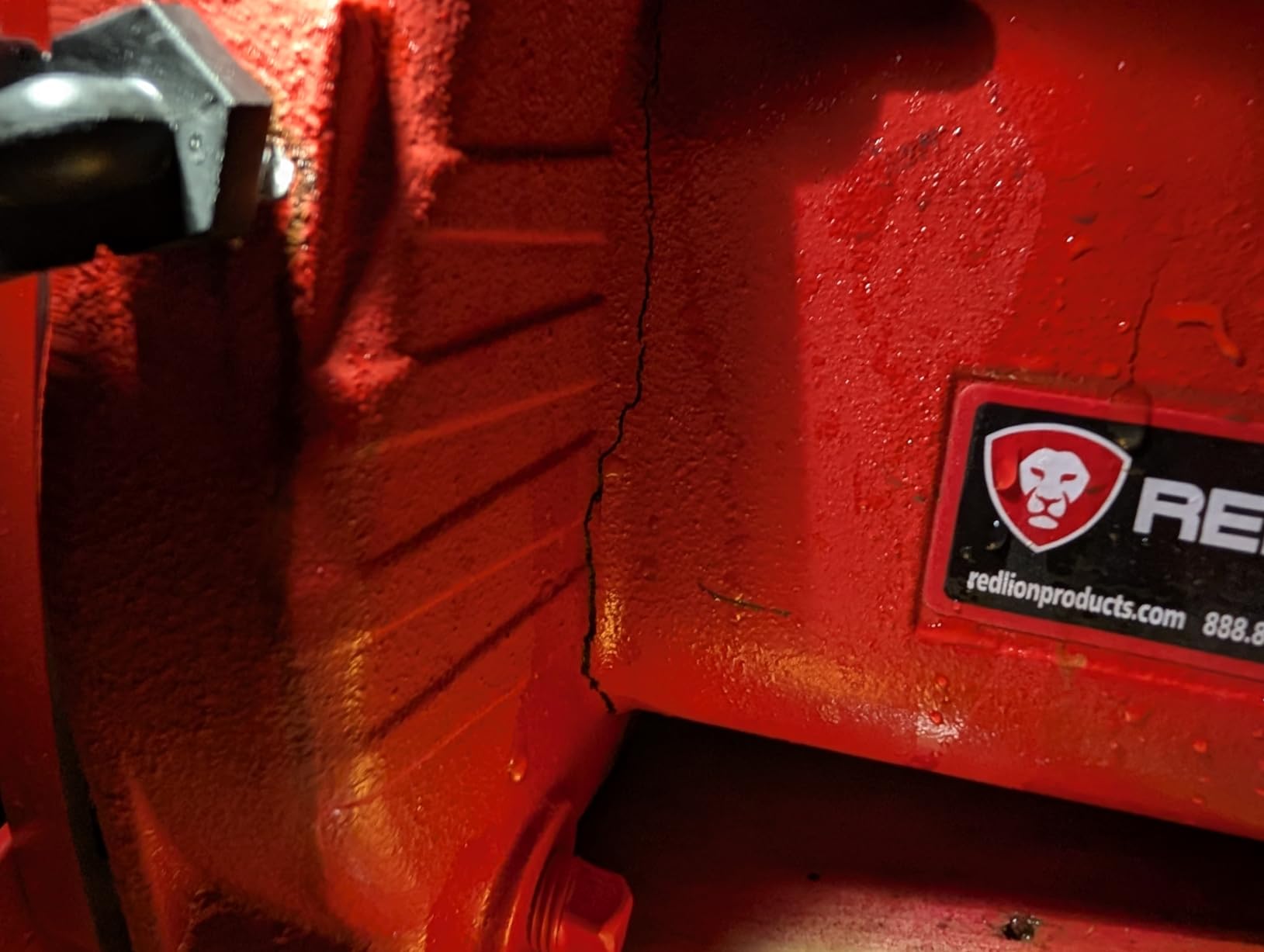

Where the rating spread comes from
Owners with long service are genuinely positive about the cast iron build and steady pressure, so the pump is capable when it runs. The failures cluster in the first months, which usually points at start capacitor or motor rather than at the hydraulics. If you are comparing this against a premium pump, note that the warranty here is a single year.
The other recurring gripe is practical rather than electrical: voltage has to be matched to the incoming supply at installation, and a 230V unit wired to 115V simply will not perform as rated. Confirm your supply before the pump arrives.

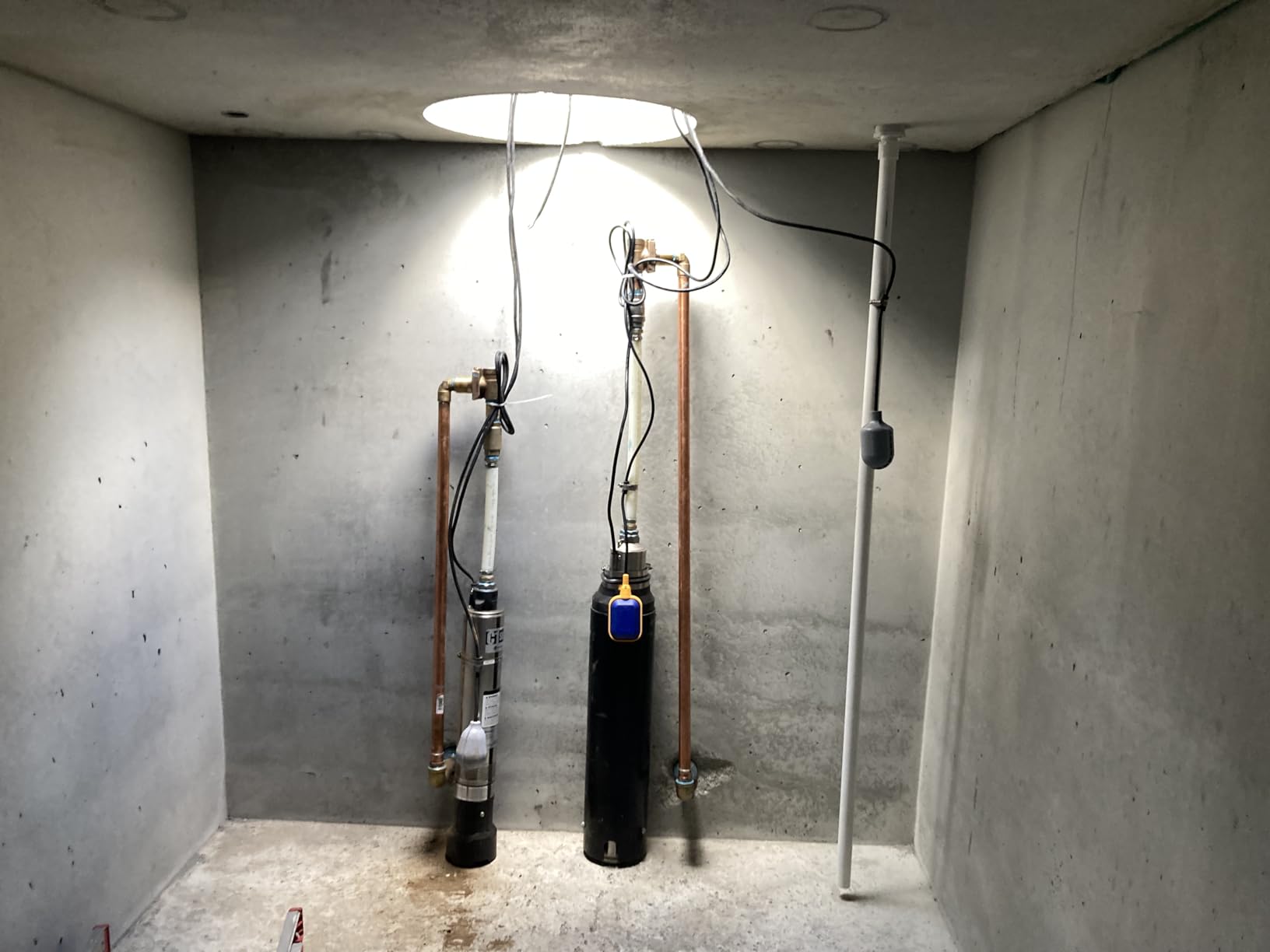

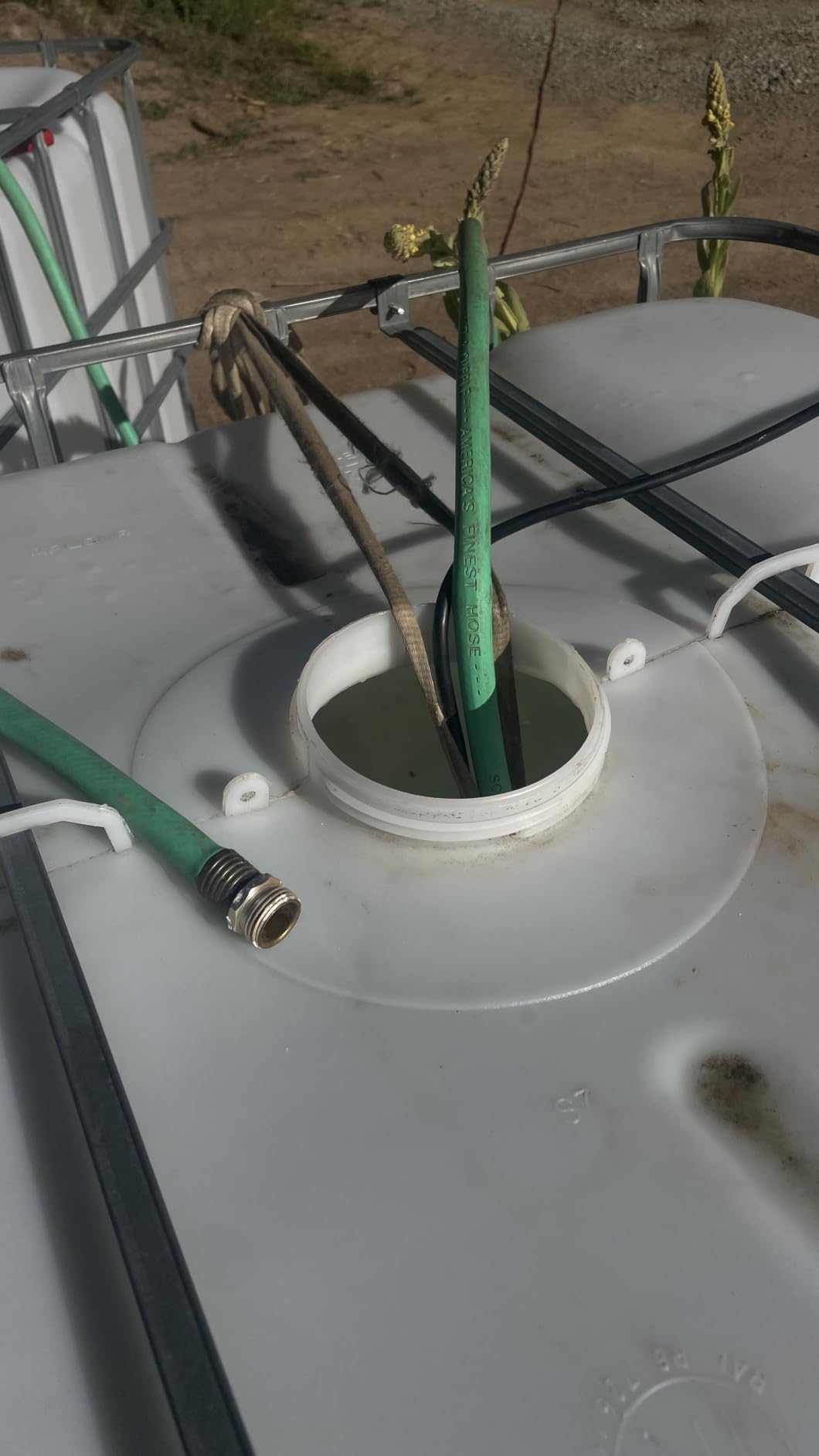

4. VEVOR 1 HP Deep Well Submersible – Best Value for Deep Wells
VEVOR Deep Well Submersible Pump 1 HP 115V/60Hz 37 GPM Flow 207 ft Head
1 HP
37 GPM max flow
207 ft max head
115V
33 ft cord included
Pros
- Highest average rating in this roundup at 4.5 stars
- 37 GPM and 207 ft head from 1 HP on 115V
- Stainless frame and connectors with IP68 rating
- Copper motor with built-in overheat protection
- 33 ft cord is longer than most at this level
Cons
- High startup amp draw frustrates small generators and inverters
- A small number of pumps fail within weeks
- An additional check valve is worth adding at install
- Lightweight cord may need upsizing for deep sets
This is the highest rated pump in the group at 4.5 stars, and the numbers behind that rating are the biggest we found on a 1 HP pump: 37 GPM maximum flow and 207 ft maximum head on 115V. Six-stage thermoplastic impellers do the work, and the 4 inch diameter body drops straight into 4 inch or larger casing with a 1-1/4 inch NPT discharge.
The stainless steel frame, outlet, and connecting components carry an IP68 waterproof rating, which is the correct spec for a motor that spends its life submerged. The copper motor includes built-in overheat protection, and a built-in check valve prevents back-flow. Owners describe it as quiet, easy to install, and hard-hitting on pressure, capable of tripping a 60 PSI regulator quickly.
The included 33 ft power cord is longer than most at this level, and that is a genuine convenience for a shallow-to-mid depth set. It also explains part of the appeal for off-grid users, since the 115V supply is straightforward to run from a generator or an inverter.
The startup draw is the one constraint that shows up repeatedly. Reviewers trying to run this pump off a modest generator or a solar inverter report that the high locked-rotor current prevents a start at all. If your backup power is anything other than a full-size generator, check the surge rating before you commit.
The number that matters at depth
Flow rate at depth is where submersibles win, and 37 GPM is a strong figure for a single 1 HP motor. More flow at the same head means the pump can push more water past the pressure switch in a fixed window, which translates into steadier household pressure and less short cycling. Short cycling is the leading cause of premature pump death, so higher flow is not a vanity spec.
Six stages is what buys that head figure. Each impeller and diffuser pair adds lift, so a six-stage pump can push meaningfully higher than a three-stage pump of the same horsepower. That is why this pump holds 207 ft while still keeping flow useful partway up the column.
What to check before you buy
Add a second check valve at installation. The built-in one handles back-flow, but a check valve near the surface makes a stuck-valve problem above ground instead of at depth, and that single change converts the most expensive repair scenario in this product’s reviews into a five-minute fix.
For deep sets, plan to upsize the cord rather than rely on the included 14 gauge cable, which is a common note in the reviews. And if you are in a corrosive or high-iron area, the stainless frame helps, but check the shaft material separately, because the frame and the shaft are often not the same alloy.

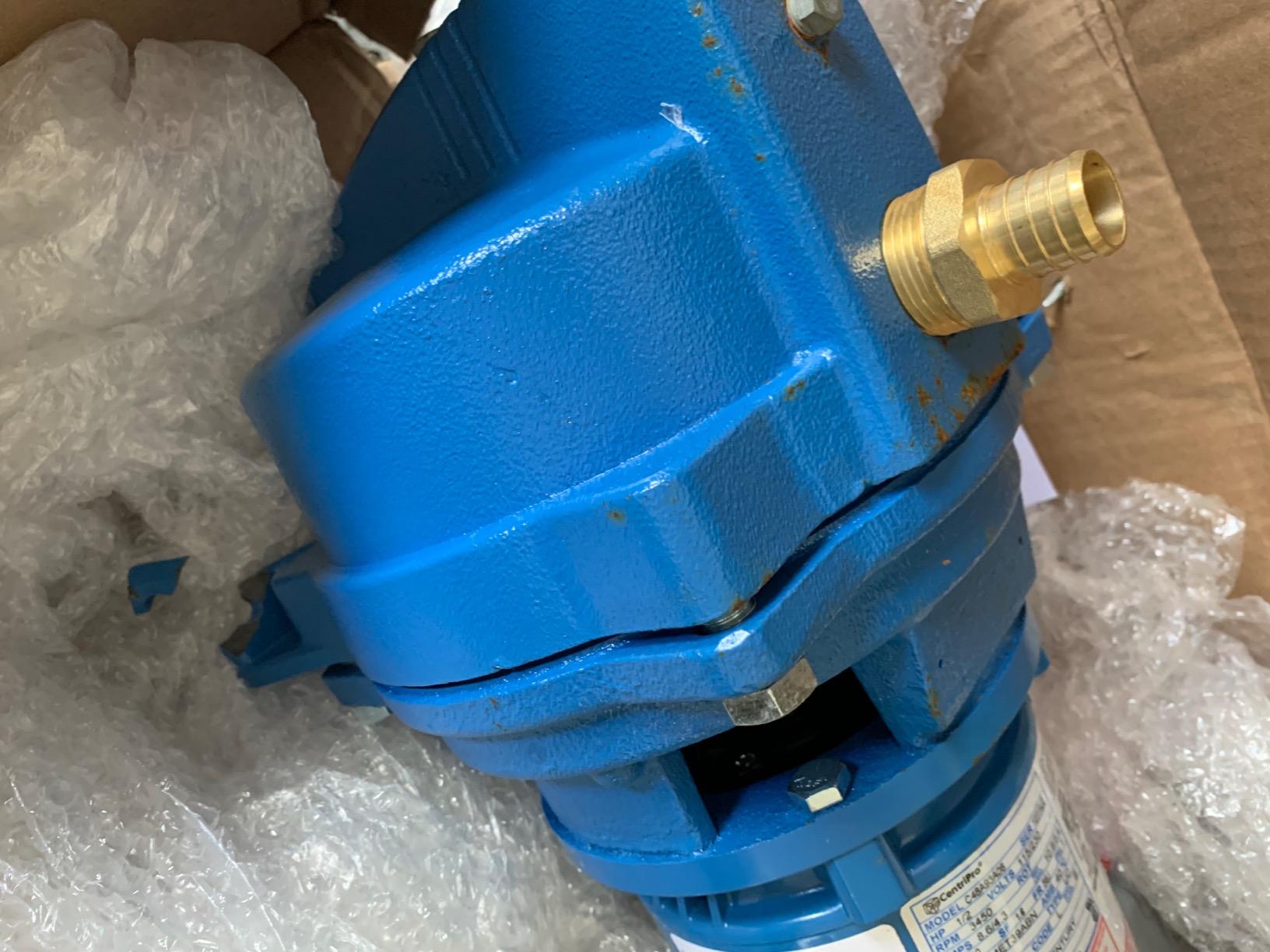

5. Goulds J5S – Premium Shallow Well Jet Pump
Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
1/2 HP
16.5 GPM
25 ft suction lift
115/230V
30-50 PSI switch
Pros
- Premium build with quality internal components
- Stainless steel shaft and overload with auto reset
- Easy to reconfigure between 120V and 240V
- Owners report replacing pumps that could not build pressure
- Long service life across multiple households
Cons
- Most expensive pump in this roundup
- One report of a pump arriving seized
- May contain water from factory testing
The Goulds J5S carries a long-established name in this category, and one r/askaplumber thread captures the buying logic exactly: a homeowner recommended spending more and getting a J5S because it carries a warranty and is a superior product. That reasoning is why the J5S is the shallow-well name that comes up first on plumbing forums, even when cheaper pumps hold higher star ratings.
At half horsepower and 16.5 GPM, this pump is not trying to serve a large property on irrigation. It is built for the standard shallow well case, and its build quality is the reason: a stainless steel shaft, a built-in overload with automatic reset, a NEMA standard 60 Hz capacitor-start single phase motor at 3500 RPM, and a 30-50 PSI preset pressure switch included.
Owners repeatedly describe a specific pattern that is worth repeating here. They bought this pump to replace a cheaper one that would not build pressure, and after the swap the household got the pressure it had been missing for years. That is a hydraulic symptom, not an electrical one, and it is exactly what a better-constructed surface pump resolves.
Switching between 120V and 240V is straightforward, and the 1.25 inch NPT suction with 1 inch NPT discharge fits standard plumbing. The UL778 listing matters if a local inspector asks. At 40.9 pounds and 17.25 inches long, it needs a proper base.
When a premium surface pump is the right answer
Choose a name like Goulds when the pump lives where you can reach it. A surface pump on a wellhead is inspectable, serviceable, and replaceable without pulling anything. Paying more for a pump you can fix yourself in an afternoon is a fundamentally different bet than paying more for a submersible you cannot touch without a crew.
Half horsepower is genuinely sufficient for a typical shallow well under 25 feet. The temptation to overbuy here is strong, and it is the most common sizing mistake in this whole category. More horsepower on a shallow lift mostly buys more current draw and more starting surge, not more usable household pressure.
What the premium tier does not fix

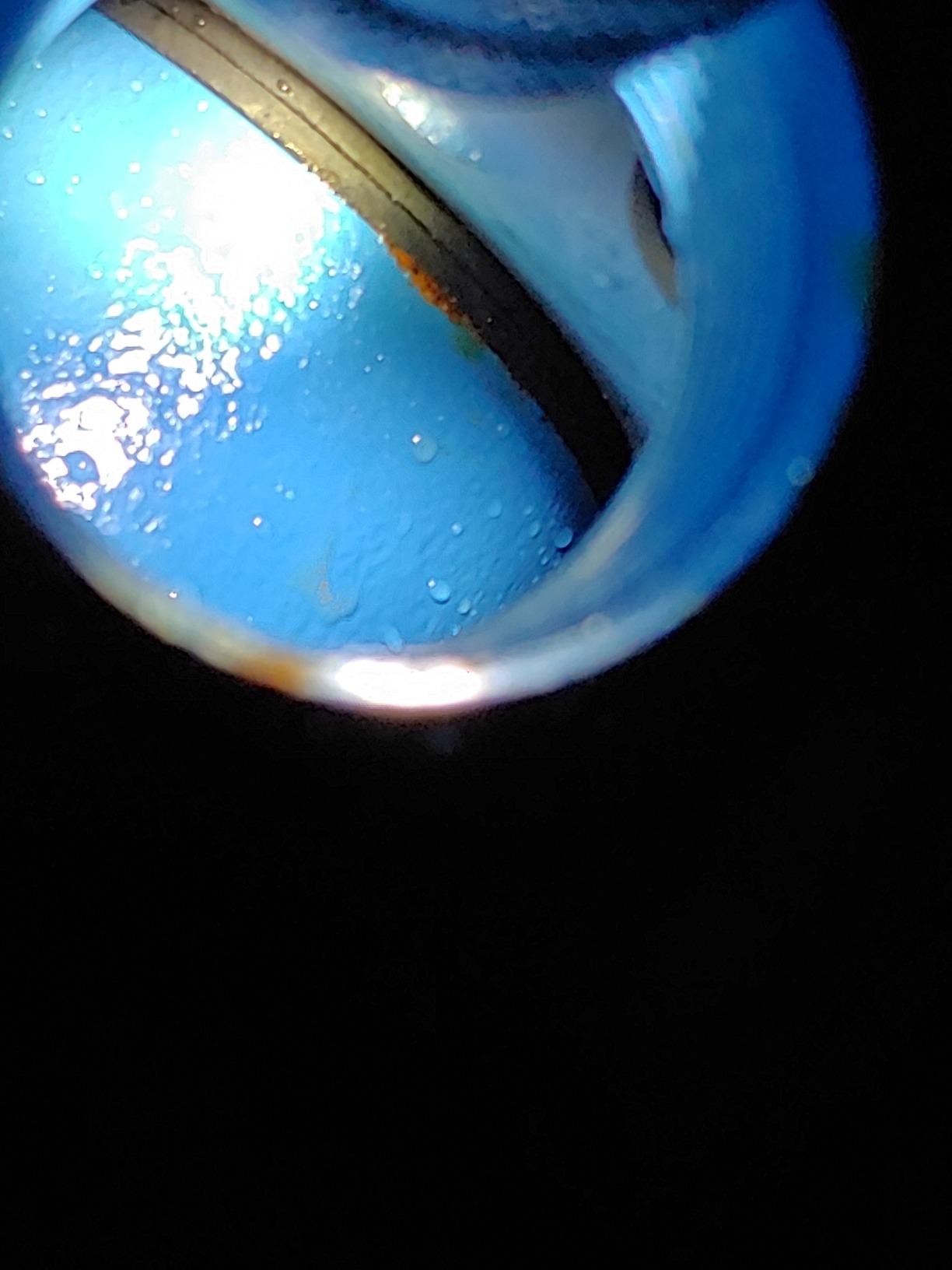

Two things are worth knowing before you commit. One owner received a pump that arrived seized, so inspect the shaft for free rotation before installing. And factory-tested pumps can carry residual water, so run it dry briefly or expect a brief spray at first start.
The bigger caveat is cost. This is the most expensive pump in the roundup by a wide margin, and that money buys internal component quality and longevity rather than flow. If you are on a tight budget and your well is shallow, the 3/4 HP Red Lion two sections down offers more flow for considerably less.

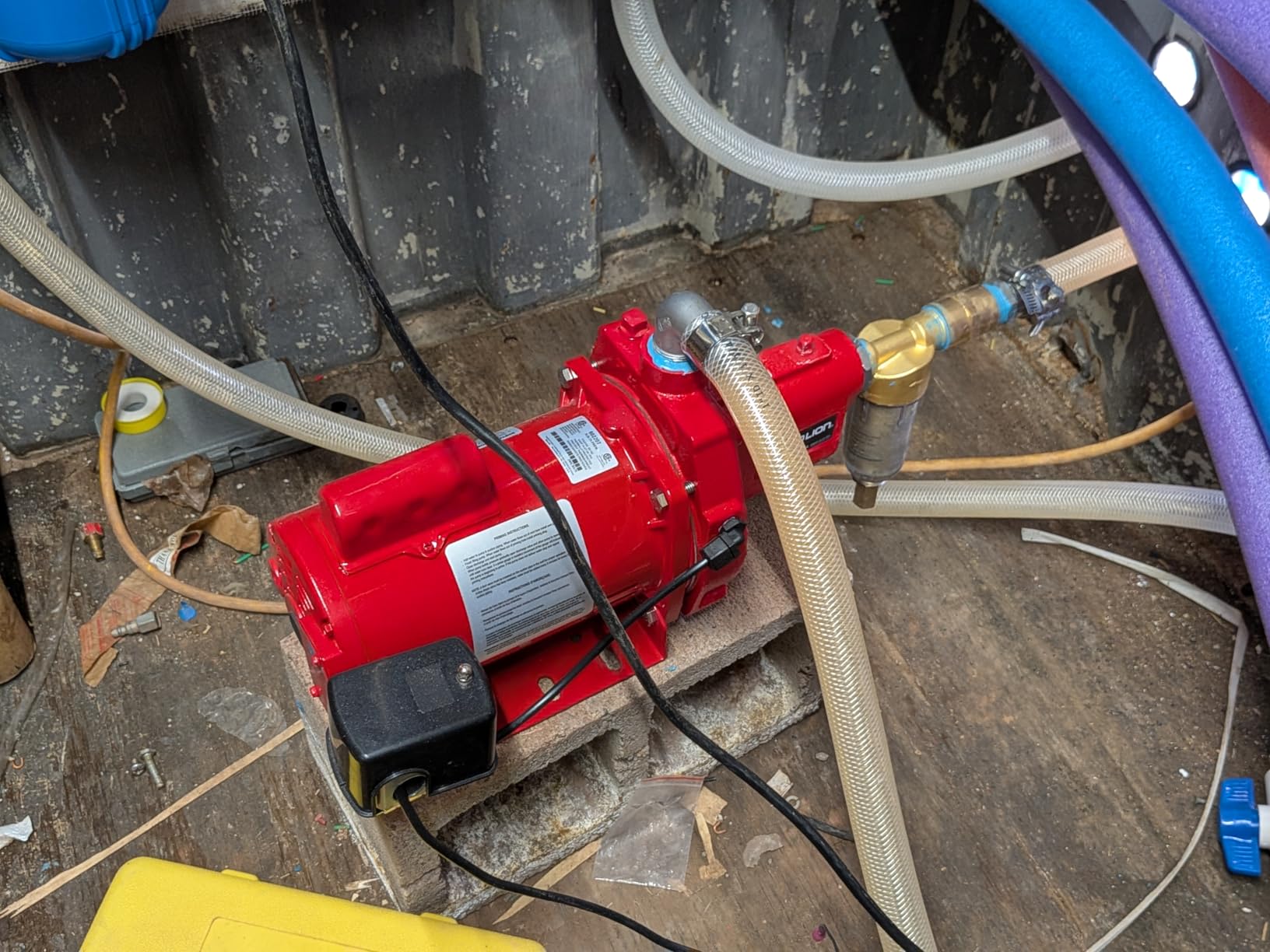

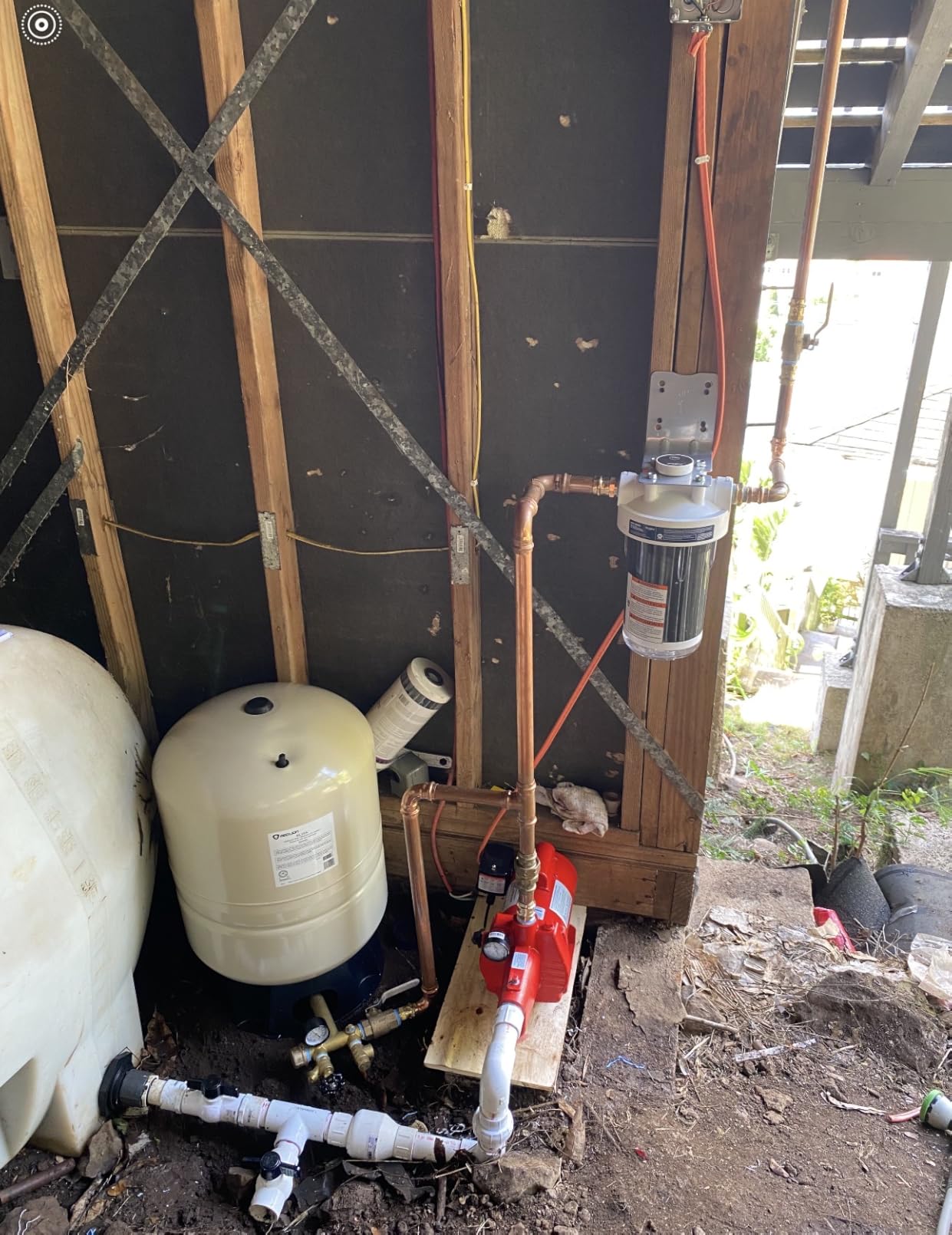

6. Red Lion RJS-75-PREM – Best Warranty Coverage in a Shallow Jet Pump
Red Lion RJS-75-PREM 115/230V, 3/4 HP, 16 GPM, Shallow Well Jet Pump
3/4 HP
16 GPM
150 ft max head
65 PSI max
3-year warranty
Pros
- Three-year manufacturer warranty
- longest in this roundup
- Factory pre-set 30/50 switch and gauge included
- Rugged cast iron casing with durable thermoplastic impeller
- Sizing suits average homes and cottages
- Run on 115V or 230V
Cons
- Lower 16 GPM flow than the 1 HP sibling
- Voltage must be matched to the supply at install
- Some owners report early mechanical or motor failures
Three years of manufacturer warranty is the headline here, and warranty length is the factor plumbing forum users name most often when choosing between brands. The RJS-75-PREM carries a three-year warranty against the one-year terms attached to most of the submersibles in this roundup, which is meaningful coverage on the component most likely to fail.
It is a 3/4 HP cast iron shallow well jet pump rated at 16 GPM with 150 ft maximum head and 65 PSI maximum working pressure. Like its one horsepower sibling it ships with a factory pre-set 30/50 pressure switch, a pressure gauge, and a start capacitor, and it is CSA listed in the US and Canada.
Owners describe the flow as well matched to average homes and cottages, which is a reasonable way to think about sizing. At 16 GPM it will comfortably serve a two or three bedroom home with normal household demand, but it is not the pump to choose if you plan to run lawn irrigation on the same line.
Power draw is 14.4 amps at 115V or 7.2 amps at 230V, and the glass-filled thermoplastic impeller and diffuser are built for durability rather than weight saving. At 38.2 pounds and 17.72 inches long, the footprint is nearly identical to the one horsepower model, so a pad built for one fits the other.
Warranty is the reason to buy this one
A warranty is only as good as the parts behind it, and this is where the Franklin Electric manufacturing behind the Red Lion brand matters. Three years covers the motor, which is the failure nobody wants to pay for twice, and a surface-mounted motor means a warranty claim does not require pulling a pump out of a well.
That combination is rare. Most long warranties in this category belong to submersibles, where honouring a claim means a crew, a truck, and a rope. A three-year warranty on a pump you can reach with a wrench is worth more in practice than the same number printed on a buried unit.
Where the compromise sits
The flow is the trade-off. Sixteen GPM is less than the one horsepower Red Lion offers, and if you are replacing a working system for a bigger property, that gap will show up at peak demand. Sizing down to save money on a pump you will own for a decade is usually the wrong economy.
As with the one horsepower model, voltage has to be matched to the incoming supply at install, and a minority of reviews describe early mechanical or motor failures. Check the supply before the pump arrives rather than after.

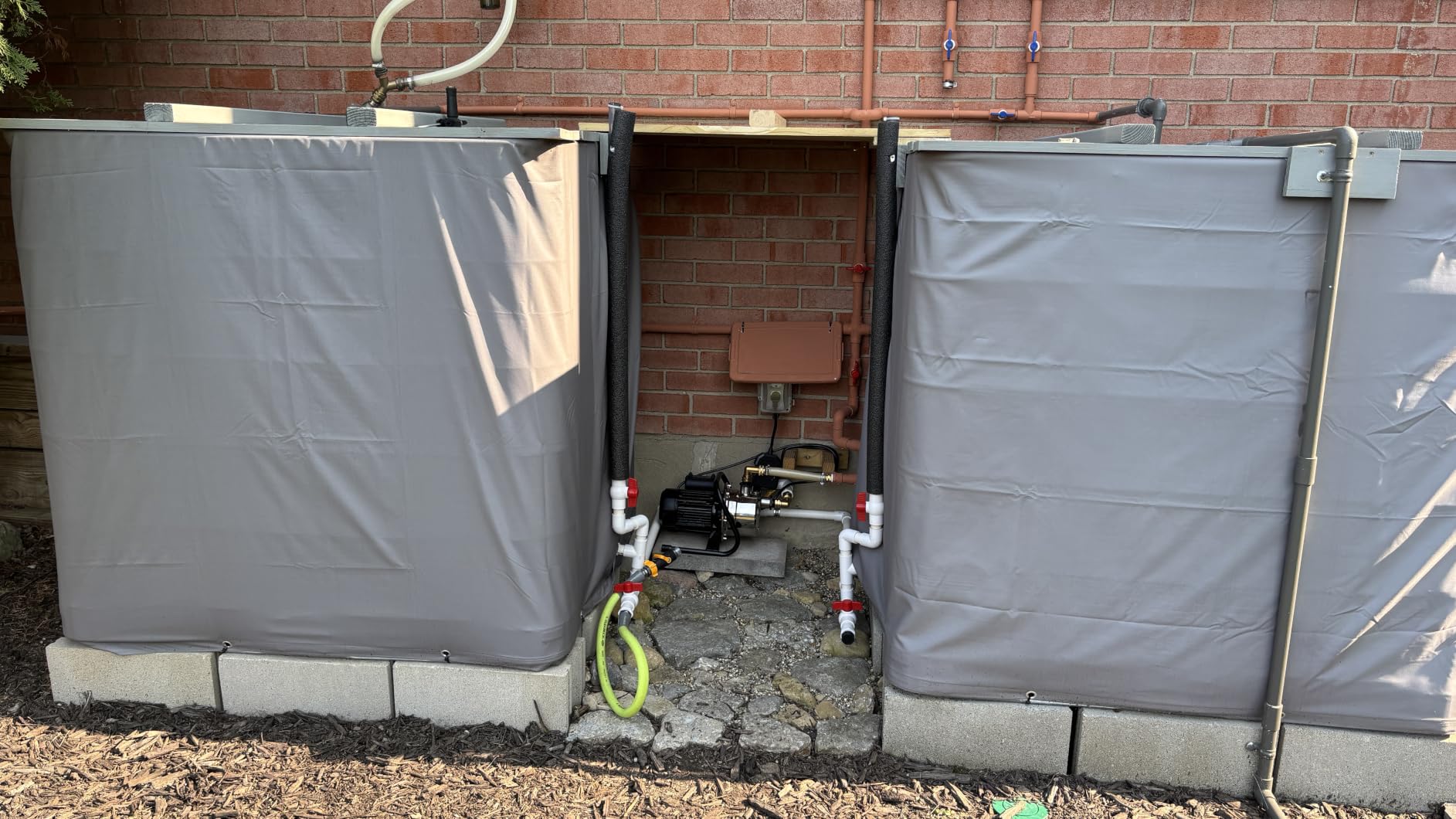

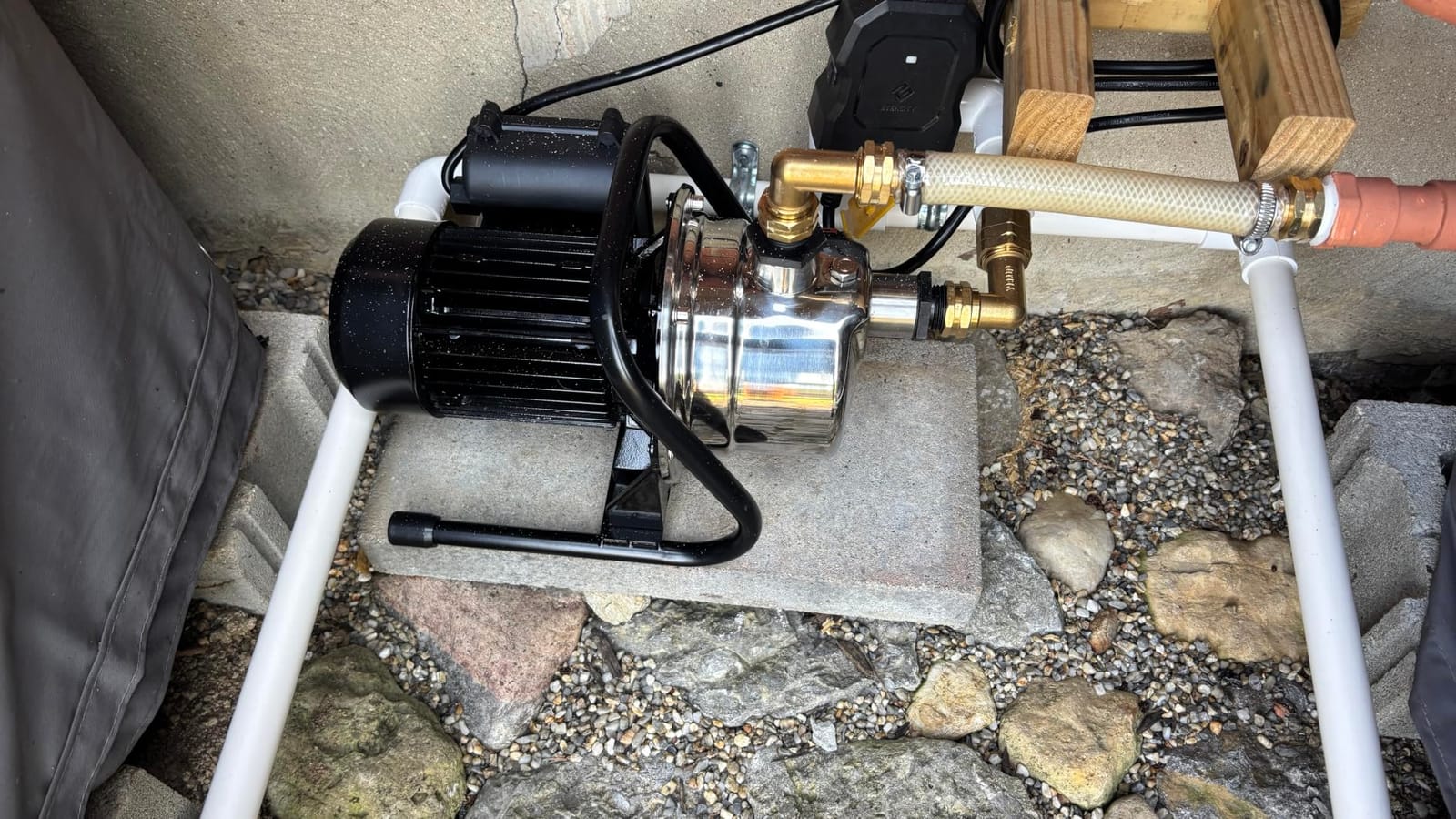

7. VEVOR 1.1 HP Portable Garden Jet Pump – Best for Irrigation and Transfer
VEVOR 1.1 HP Portable Shallow Well Pump, 978 GPH Garden Jet Pump, 115V, 131 ft Height, Stainless Steel Sprinkler Booster Pumps for Garden Lawn Irrigation system, Lake Fountain, Water Transfer
1.1 HP
978 GPH
131 ft max head
23 ft suction
IPX4 stainless head
Pros
- Far quieter than the vane transfer pumps it replaces
- Still runs well after months of daily use
- Portable iron handle and stainless steel head
- Two-year manufacturer warranty
- Suitable for irrigation ponds fountains and rain barrels
Cons
- Lower 7 amp draw means less pressure than 13 amp rivals
- Some pumps will not prime
- Short 6.6 ft power cable
- No rubber feet so the pump can slide
This one is not a household well pump and we want to be clear about that before anyone buys it by mistake. It is a portable garden jet pump, rated for clean water only and explicitly not suitable for drinking water. What it is genuinely good at is moving water for irrigation, pond filling, fountains, rain barrels, and wash-down work.
The performance figures are respectable for that job. A 1.1 HP motor delivers 978 GPH maximum flow with a 131 ft maximum head, 40 PSI maximum pressure, and 23 ft maximum suction. The stainless steel pump head sits on a cast aluminum housing with an IPX4 rating, and the included 6.6 ft cable plus two garden hose adapters are enough to be running within a few minutes of unpacking.
The most common reaction in the review data is relief. Owners replacing noisy vane-type transfer pumps describe this as dramatically quieter, and several report it still running like new after thousands of gallons and months of daily use. The built-in thermal and overload protection with a waterproof on/off switch fits that duty cycle.
It also weighs just 16.9 pounds and measures 12.7 by 9.4 by 9.8 inches, which is genuinely portable. At 131 ft of head it will throw water a long way for a garden pump, more than enough for sprinkler zones and fountain heads.
Where the quiet operation actually pays off
Noise is the whole story with transfer pumps. A vane pump running beside a house for an hour is genuinely unpleasant, and the jump to a jet design is dramatic. If your use case is moving water around the property rather than supplying a household, that is the feature you will notice every single day.
The stainless steel head is the second reason to like it for outdoor work. Corrosion resistance matters on a pump that lives in damp soil or beside a pond, and the two-year warranty runs longer than most in this roundup.
What it will not do
Do not plumb this into a house water supply, and do not use it with anything but clean water. The manufacturer states it unsuitable for drinking water, and the design has no pressure switch, no pressure tank, and no potable-water certification behind it.
The substantive criticism in the reviews is that the 7 amp motor is smaller and lower-draw than comparable 13 amp pumps, so real-world pressure and volume under load fall short of what the headline horsepower suggests. A few pumps also refuse to prime even after troubleshooting, the cable is short, and the missing rubber feet mean it can walk while running.

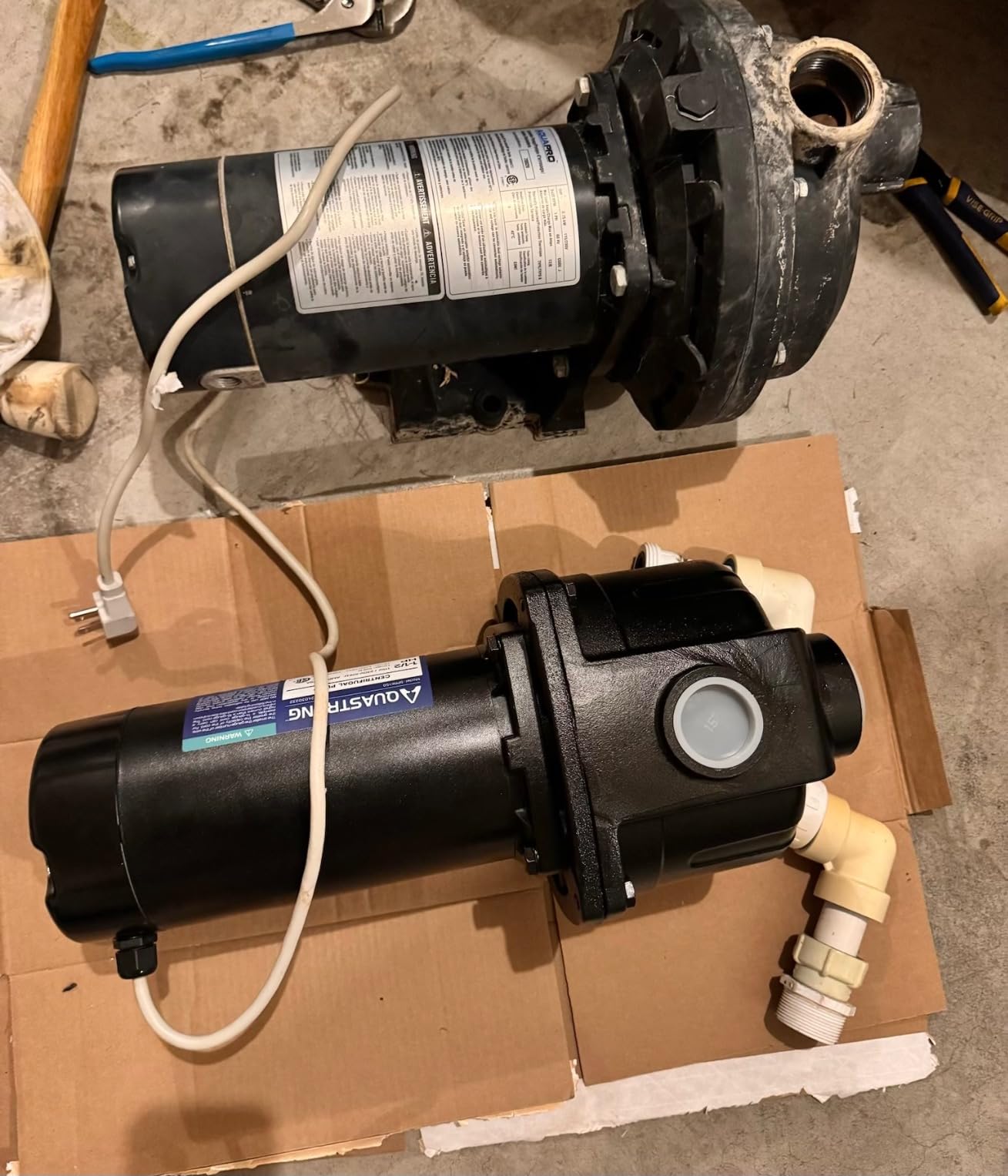

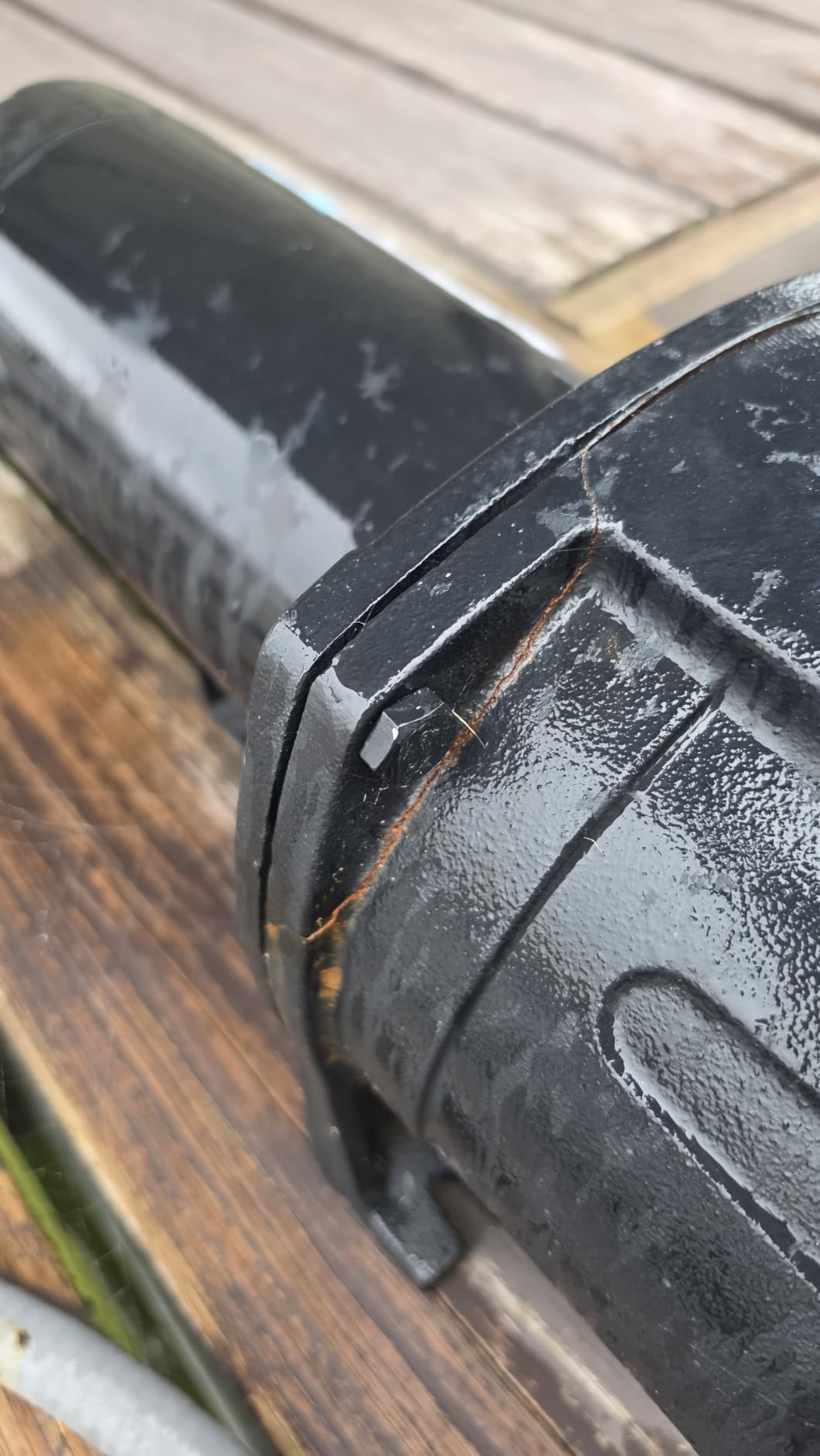

8. AQUASTRONG 1.5 HP Centrifugal Pump – Highest Flow for Irrigation
AQUASTRONG 1.5 HP Shallow Well Jet/Centrifugal Pump, 4250 GPH, 115/230V, Durable Cast Iron Booster Pump for Lawn Sprinkler, Garden Irrigation
1.5 HP
4250 GPH
108 ft max head
2 inch NPT suction
Cast iron
Pros
- Highest throughput in the roundup at 4250 GPH
- Reinforced impeller and diffuser for sustained flow
- Durable cast iron volute for long service
- Dual 115/230V motor with thermal overload protection
Cons
- Factory set to 230V so 115V users must reconfigure
- At 22.8 inches long it is the largest pump here
- Built for lawn irrigation rather than potable whole-house supply
If your need is volume rather than household pressure, this is the pump in the roundup that delivers it. A 1.5 HP motor moves up to 4250 GPH with a 108 ft maximum head, through a reinforced impeller and diffuser designed for sustained high flow rather than for pressure at low draw.
Plumbing is oversized on purpose, with a 2 inch NPT suction and 1-1/2 inch NPT discharge. That inlet size is what allows the flow figure to be real, and it is the reason this pump suits a pond, a large irrigation zone, or a farm transfer where a household-sized suction line would choke it.
The dual voltage motor is a genuine convenience. It is factory set at 230V and can be reconfigured to 115V, and the round flange motor is paired with an in-built automatic thermal overload protector. Reviewers on larger properties value that flexibility, because it removes a rewire if the panel at the pump location is 115V.
At 22.8 by 11.8 by 12.4 inches, this is the largest pump in the group and it needs a real pad. The cast iron volute is the right material for a pump that will sit outside and run hard through a season.
Volume versus pressure: the honest trade
A centrifugal pump this size is optimised for moving a lot of water a moderate distance. The 4250 GPM headline comes with a 108 ft head figure that is meaningfully lower than the 150 ft and 164 ft figures on the jet pumps, and that is the trade you are making. More gallons, less pressure per gallon.
That is correct for irrigation and incorrect for a two-story home with multiple bathrooms. If you want smooth household pressure and strong shower flow, you want a pressure tank and control, not a bigger impeller. Those are different requirements, and no single pump in this roundup serves both.
Before you buy for a household
Check the voltage first. This unit ships factory set to 230V, so anyone running on 115V has to reconfigure the motor at install, and doing that wrong is the fastest way to damage the windings. Confirm the supply at the pump location first.
Second, note that this is an irrigation product. There is no pressure switch, no tank, and no potable-water certification listed, so it belongs on a lawn line or a transfer duty rather than on the pipe feeding your tap. For whole-house potable supply, the Aquastrong package in the final section is the one designed for it.
9. ECO-WORTHY 12V DC Solar Submersible – Best for Off-Grid and Backup
ECO-WORTHY 12V DC Submersible Well Water Pump with 10ft Cable, Water Flow 1.6GPM, Max Lift 100ft/30m, 96W Deep Well Pump for Irrigation, farm, ranch, home
12V DC
96W
1.6 GPM
100 ft max lift
Solar or battery ready
Pros
- Runs straight off a 200W solar panel or 12V battery
- Very quiet linear design
- Reaches over 100 PSI at about 6 ft of lift
- Simple positive and negative connection with a rope lift point
- Reliable after long periods sitting unused
Cons
- Thermal cutoff trips often under sustained duty cycles
- Some pumps fail within roughly 200 hours of cycling
- 1.6 GPM limits it to small or backup use
- Body may be too wide for some casing side-saddles
This pump is the reason a homestead forum user evaluating off-grid options should look past AC pumps entirely. The DC motor connects directly to a 200W solar panel or runs from a 12V battery, which means no mains wiring, no control box, no pressure switch, and no electrician for a cabin, a remote property, or a backup line that has to work when the grid does not.
Output is modest by household standards at 1.6 GPM, with a maximum lift of 100 ft, but the pressure claim is the interesting part. Owners report reaching over 100 PSI at about 6 ft of lift, which is exactly what a small DC pump does well. It fits wells of 4-1/8 inch or larger and also works in ponds and rivers.

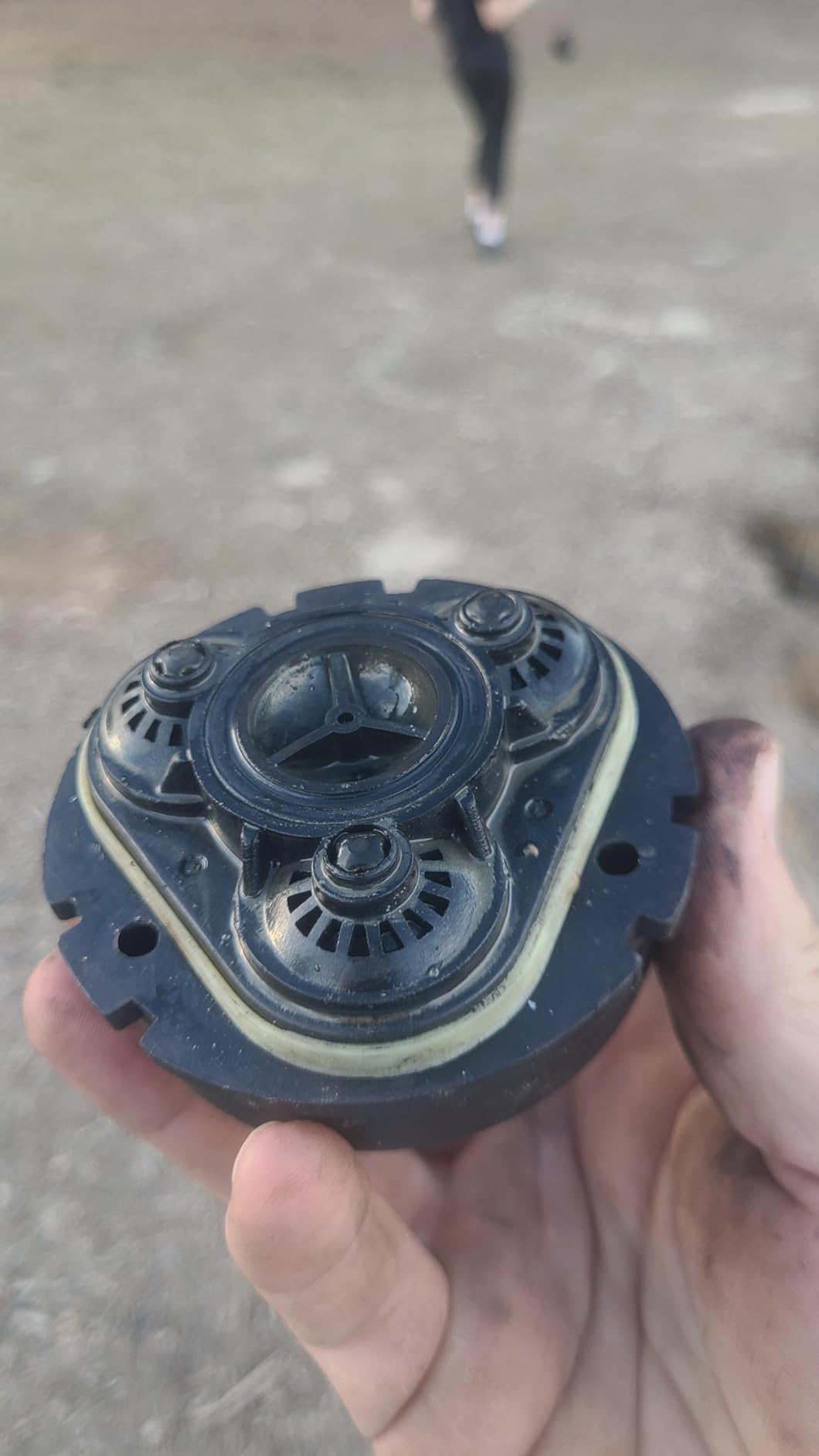

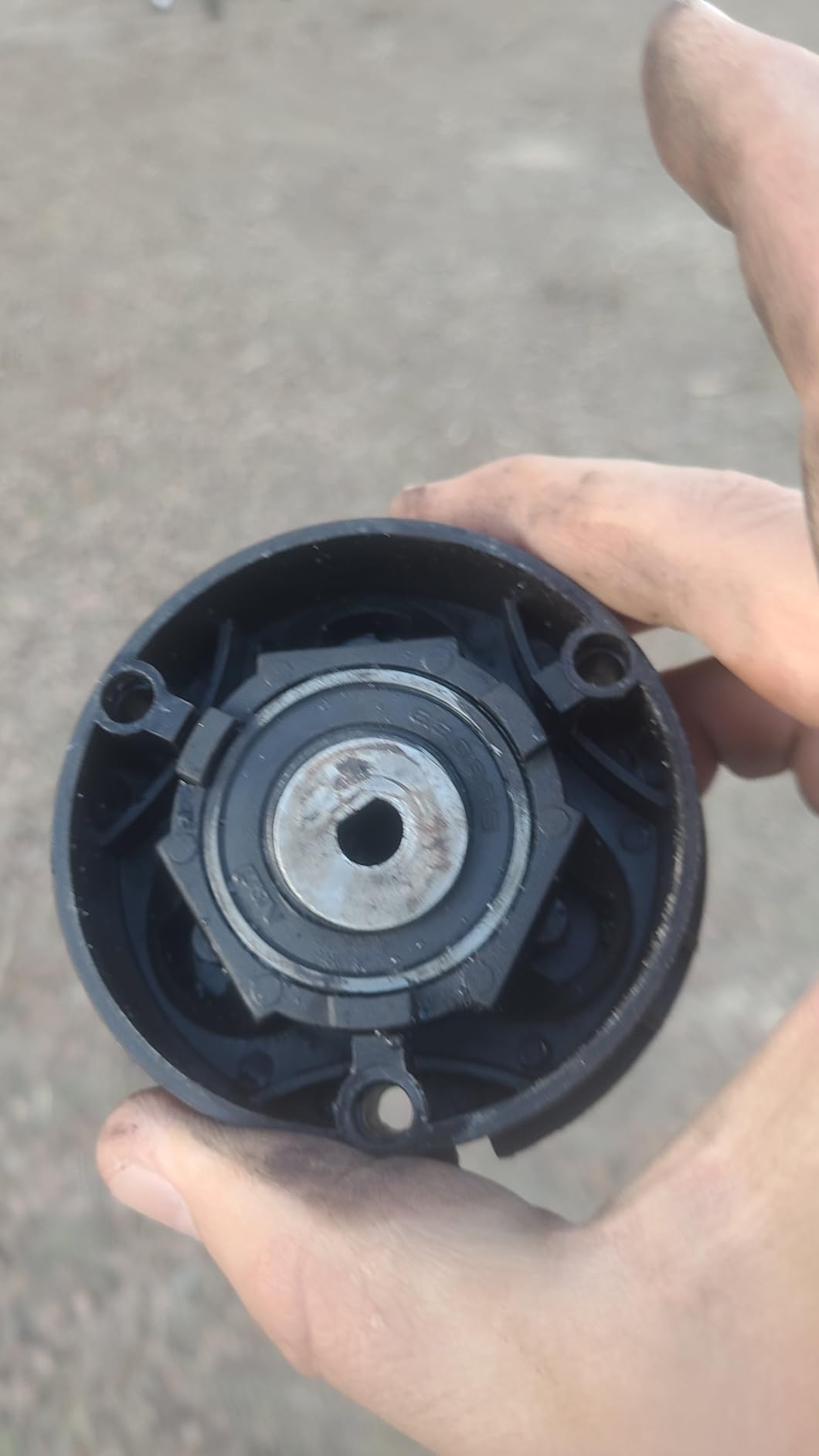

The linear design is the quiet advantage. Owners contrast it with cheaper diaphragm pumps, whose 90-degree internal kink makes them audibly unpleasant, and describe this pump as near-silent. It also pumps reliably after sitting unused for weeks, with no air lock or priming ritual, which matters when your only start trigger is the sun coming up.
Installation is genuinely simple. A 10 ft power cable with a rope lift point above the pump means you connect positive and negative and lower it in. Note the manufacturer instruction not to lift the pump by its wires, and check your casing side-saddle clearance because the pump body can be too wide for some.
What 1.6 GPM actually supports
Do the arithmetic before you commit, because this is the number that decides the purchase. A shower on a low-flow head uses roughly 2 GPM. Two of them plus a toilet and a couple of taps will exceed 1.6 GPM, which means this pump cannot serve a full household.
What it can do is a cabin, a livestock trough, a garden irrigation zone, a pond aerator, or a backup line that takes over when municipal water is unavailable. Treated as a supplementary pump rather than a replacement for a household supply, the limitations largely disappear.
The thermal cutoff is the honest drawback
The most cited problem is the built-in thermal cutoff, which trips repeatedly under sustained high-pressure duty cycles. That protection is doing its job, but it means this pump is designed for intermittent use rather than continuous running, and treating it as a continuous duty unit leads to shutdowns.
Several owners also report pumps failing within roughly 200 hours of continuous cycling, so treat the duty cycle as a real limit rather than a suggestion. If you need continuous off-grid volume, you need an AC pump and an inverter, and you should budget for that instead.

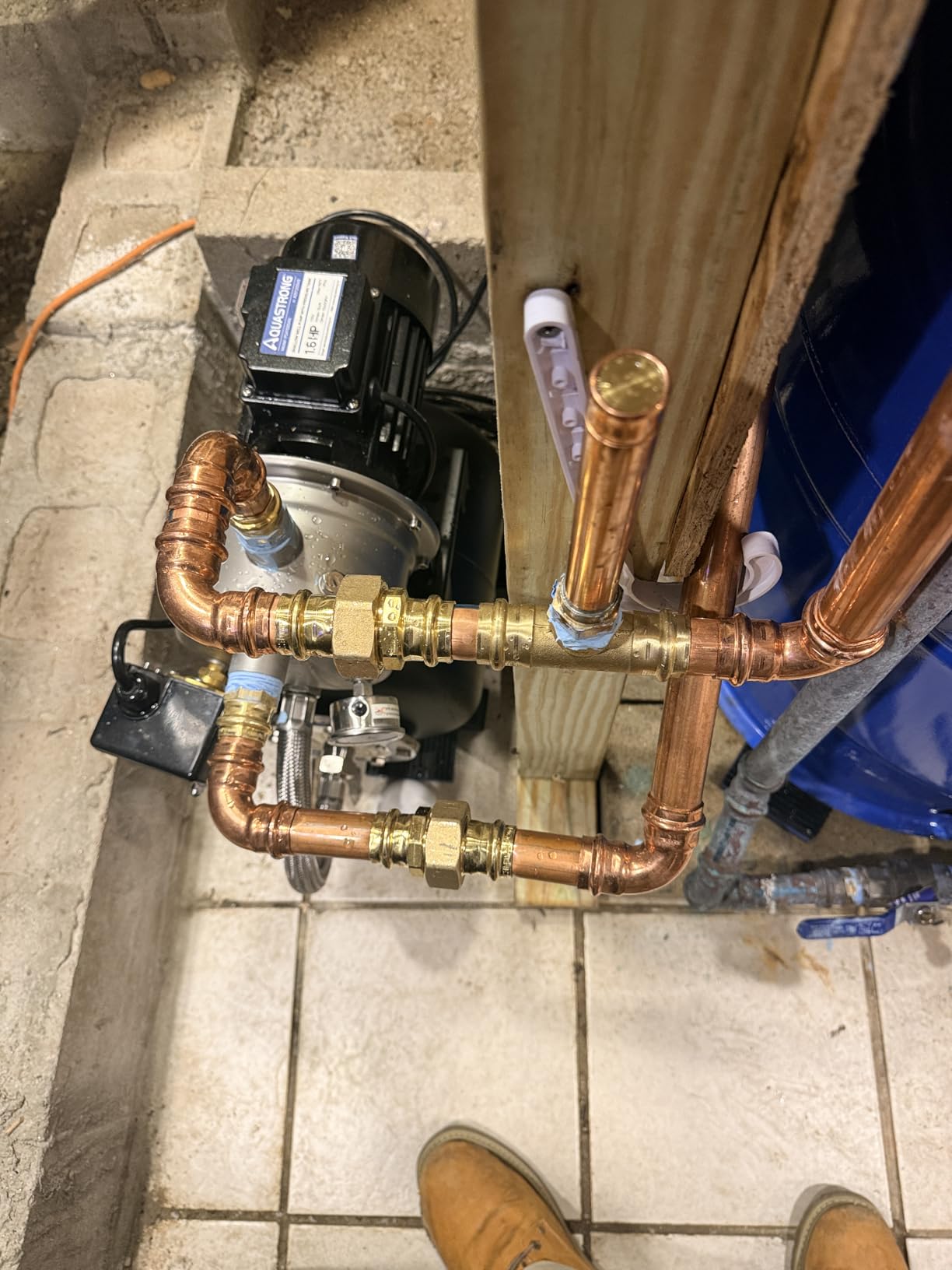

10. Aquastrong PGA150SA – Best All-in-One Stainless Steel Package
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Automatic Water Booster Jet Pump for Home, Garden, Lawn,Irrigation,1.6 HP with Pressure Tank
1.6 HP
1340 GPH
26 ft suction
164 ft max head
5 gallon tank included
Pros
- Pressure switch
- 5 gallon pressure tank and gauge in one box
- 1.6 HP capacitor motor delivers 1340 GPH on 115V
- Stainless steel housing resists corrosion
- Carbon ceramic mechanical seal extends life
- Pre-assembled with a two-year warranty
Cons
- Must be primed before startup and protected from freezing
- Factory 20 PSI on and 40 PSI off is lower than many homes need
- Higher cost than buying a bare pump separately

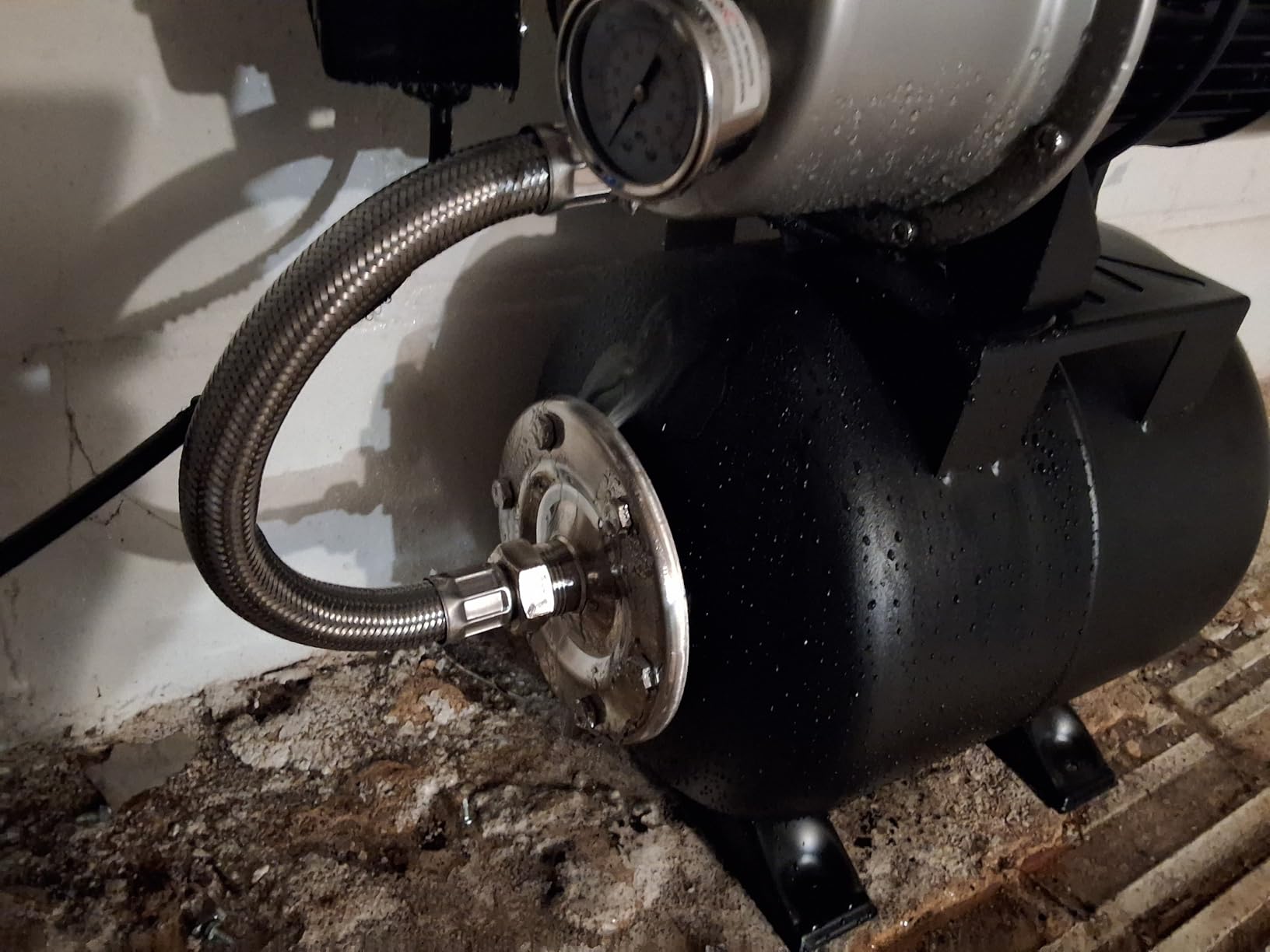

This is the pump for someone whose well has no pressure tank yet. Everything needed to run a household supply is in the box: the pump, a pressure switch, a 5 gallon pressure tank, and a gauge, factory pre-assembled. For a shallow well with a suction line already in place, that removes the single most common reason a weekend install turns into a parts run.
The motor is a 1.6 HP capacitor unit running on 115V, with 1340 GPH maximum flow, 26 ft suction, and 164 ft maximum head. The carbon ceramic mechanical seal is a step above the basic lip seals on entry-level pumps, and the temperature sensing automatic overload stop protects the motor if it ever runs dry.
Owners consistently praise the integrated tank and switch, because a pressure switch with no tank is the classic cause of short cycling and short pump life. The plumbing is 1 inch NPT inlet and outlet, and the package includes 3/4 inch garden hose adapters and PTFE tape. At 17.9 by 10.9 by 19.7 inches it is a full-sized pump, not a compact one.
Two operating conditions are non-negotiable with this pump. It must be primed before startup, and it must be protected from freezing in winter, because a pump left in an unheated pump house in freezing conditions is a pump you will be replacing in spring.
Why the built-in tank changes the outcome
A pressure tank stores water under air pressure so the pump starts and stops infrequently. Without one, a pump on a plain switch cycles constantly, and that cycling is the leading cause of premature pump failure. Including a 5 gallon tank changes the duty cycle from many starts an hour to a handful a day.
That is why we would rather see a homeowner buy a packaged pump like this than assemble a bare pump and a mismatched tank from different sources. The economics work out too, because the tank, switch, and gauge you would otherwise buy individually are the three most common missing pieces.
The one setting you will probably want to change
The factory pressure switch starts the pump at 20 PSI and shuts it off at 40 PSI. For a small cottage or a single-storey home that is workable. For anything larger, that band is low, and it is the most likely reason a buyer would later describe the system as low pressure.
Swapping the switch for a 40/60 unit is a simple, inexpensive basement job once you know the tank is the right size for your pump. Our rule of thumb for sizing that tank is roughly two gallons per GPM of pump capacity, so a pump in this flow class wants a tank larger than the five gallon model that comes in the box.
How to Choose a Well Pump for Your Home in 2026
Every selection mistake in this category traces back to one of four variables: well depth, static water level, well yield, and how much flow you actually need. Get those four numbers and the pump choice becomes mechanical. Skip them and you are guessing with an expensive object.
Shallow well jet pump or deep well submersible?
A shallow well jet pump is an above-ground pump that sucks water up through a suction pipe, and it works to roughly 25 feet of suction lift. A deep well submersible sits inside the casing below the water level and pushes water up a drop pipe, which is why it can serve wells hundreds of feet deep.
The rule most people learn the hard way is that the deciding factor is not the depth of the hole but the depth of the water. A 300 foot casing with water at 20 feet can often be served by a jet pump, because the pump only has to lift 20 feet. A 40 foot casing with water at 38 feet needs a submersible, because the pump would have to lift nearly the entire column itself.
Size for total dynamic head, not well depth
Total dynamic head, usually shortened to TDH, is the total vertical lift your pump must overcome. It is the sum of three things: the static water level (how far the pump sits below the water when the pump is off), the drawdown (how much the level drops while the pump runs), and friction loss in the pipe (how much the drop pipe and fittings resist flow).
Worked example. Take a 200 foot well with a static water level at 50 feet and a measured drawdown of 20 feet. Static level 50 plus drawdown 20 gives 70 feet, and friction loss in a 1 inch drop pipe at real flow rates adds roughly 20 to 30 feet. Your TDH is therefore about 90 to 100 feet, and you size the pump to deliver your required flow at that number.
This arithmetic is why buying by well depth alone fails. Two wells of identical depth can need completely different pumps, and the installer mistake reported repeatedly in homeowner forums, recommending horsepower that does not match yield and water table depth, starts right here. A bigger pump on a weak aquifer draws the water down faster than it recovers, pulls sediment, and cavitates.
Set the pump 10 to 20 feet above the bottom of the casing and at least 10 to 20 feet below the static water level. On the 200 foot example that lands the pump at roughly 150 to 170 feet, and it keeps the motor submerged during a drawdown event.
2-wire or 3-wire: the repair cost decision
Both wire systems end up at a pressure switch and a pressure tank, and both fail in the same place: the start capacitor. The difference is where that capacitor lives. On a 2-wire pump the capacitor is built into the motor at the bottom of the well. On a 3-wire pump the capacitor sits in a control box in your basement, next to the pressure switch.
That single difference is the whole decision. A 2-wire pump is simpler to wire and needs no control box, which makes it attractive for a new install with a qualified electrician. A 3-wire pump is worth the extra wiring because a failed capacitor is a cheap part you swap above ground instead of a job that starts with pulling the pump out of the well and paying a crew to do it.
Homeowners with deep wells almost always end up on 3-wire for that reason. The wire itself is a heavier three-conductor cable, and the control box is a separate purchase, but the long-term repair economics are dramatically better on a pump you cannot easily reach.
A bigger pump is not a better pump
This is the most counterintuitive thing in the category, and it is the one most often stated as a costly mistake. Chronic low pressure feels like a horsepower problem, and it is usually not. It is usually a waterlogged pressure tank, a failing capacitor, a clogged sediment filter, or a drawdown problem that has nothing to do with the pump.
When you oversize, the pump draws the well down faster than the aquifer replenishes, pulls sediment and sand through the impeller, and cavitates as it tries to move air-mixed water. Sand is the fastest way to destroy a pressure switch and a pump simultaneously, and the resulting damage is invisible until it fails.
So before you buy more power, measure the well. A drawdown and yield test tells you what the well can actually deliver, and it is worth having done before you choose a pump rather than after it has been installed and has already pulled sand into the impeller.
Voltage, pressure switch, and tank sizing
Most residential submersibles run on 115V single phase, which is convenient for generator backup. Larger and premium jet pumps are commonly dual voltage 115/230V, factory set to one of the two, and several products in this roundup require you to confirm the supply before installation.
For pressure, the standard residential switch is 40 PSI cut-in and 60 PSI cut-out, and the 30/50 switches on the Red Lion pumps in this roundup are a deliberate lower-pressure setting for smaller systems. Constant pressure and variable frequency drive controllers are the upgrade path when you want flat pressure rather than a switch that permits a 20 PSI swing.
For tank sizing, a rule of roughly 20 gallons of tank for every 10 GPM of pump capacity is a usable starting point. Check the tank air charge annually with a tire pressure gauge, set about 2 PSI below the pump cut-in pressure, and treat a waterlogged tank as the first thing to investigate whenever a pump starts short cycling.
Warranty length and local parts availability
Forum users name warranty length and parts availability more often than flow rate when they explain a brand choice. A two or three year warranty on a motor is only meaningful if a local pump supplier carries the capacitor, the pressure switch, and the control box for that model.
There are real examples of brand misalignment: one documented case involved a private-label 1 HP 3-wire submersible motor failing within a month, with the replacement not carried at the local home improvement retailer. Check that the parts channel exists in your area before you commit to a model, not after the failure.
Pair the pump with the right filtration
Pump choice and water treatment are separate decisions, and treating them as one is how people end up with a new pump feeding an undersized sediment filter. If your well produces sand, a spin-down or sediment filter ahead of the pressure tank protects the pump and the switch. Hardness and iron each need their own treatment rather than a general filter.
Our whole-house water filtration guide covers matching sediment, carbon, and iron stages to the specific problem in your water, and our reverse osmosis guide for home kitchens is worth reading if you want drinking water at the tap rather than treating the whole house. If your issue is a single tap rather than the whole property, our under-sink water filtration picks are the cheaper route. Test the water first, then buy the equipment.
Frequently Asked Questions
What is the most reliable water pump brand for a home well?
Reliability in well pumps comes down to build quality, warranty length, and whether local parts are available. Pumps from manufacturers such as Franklin Electric, Goulds, and Grundfos are widely treated as the professional tier, and users on plumbing forums repeatedly name warranty coverage as the deciding factor between brands. For shallow wells under 25 feet, a cast iron jet pump from a name brand is the conventional answer. For deep wells, a stainless or thermoplastic submersible in the 1 HP range is the standard, matched to your total dynamic head.
What type of pump is best for well water?
It depends on how deep the water sits, not on how deep the hole is. A shallow well jet pump works to about 25 feet of suction lift and costs less to service. A deep well submersible works to hundreds of feet and is the right choice whenever the static water level is far down the casing. The deciding rule is simple: if the pump cannot lift the water to itself within about 25 feet, it needs to go in the well.
How big of a well pump do I need for my house?
Size it to the flow you need at your actual total dynamic head, not to the depth of the casing. Calculate total dynamic head as static water level plus drawdown plus pipe friction loss, then pick a pump that still delivers your required gallons per minute at that number. A 1 HP pump rated around 33 to 37 GPM covers most homes with 3 to 10 GPM demand. Sizing up beyond that shortens pump life and draws sediment into the impeller.
How many years does a well pump typically last?
A correctly sized submersible pump on a properly sized pressure tank commonly lasts 15 to 25 years. The most common causes of early failure are short cycling from a waterlogged tank, cavitation from an oversized pump, sand and sediment from the well, and a failed start capacitor. Checking the tank air charge annually and correcting the switch settings is the cheapest life extension available to a homeowner.
Should I choose a 2-wire or 3-wire submersible pump?
Choose 3-wire for any deep well. Both types fail at the start capacitor, but on a 2-wire pump that capacitor sits inside the motor at the bottom of the well, so replacing it means pulling the pump. On a 3-wire pump the capacitor is in a control box in your basement and costs a fraction of a pull job to replace. 2-wire is simpler to wire and needs no control box, which suits some new installations.
Will homeowners insurance cover a new well pump?
Most homeowners policies treat a well pump as part of the structure and cover sudden failure from a covered peril, but exclusions vary widely by insurer and policy wording. Gradual deterioration, wear, and damage from neglect or from an unmaintained system are commonly excluded. Read the declarations page for your structure coverage and ask your agent directly whether the pump, the pressure tank, and the well casing are named or included.
Which Well Pump Should You Buy?
Match the pump to the water, not to the price tag. If your static water level is within about 25 feet of the surface, a cast iron shallow well jet pump is the right tool, and the Red Lion 3/4 HP with a three-year warranty is the balanced pick in that group.
Those are the decisions behind our best well pumps for home water systems ranking. Ten pumps, ten different jobs, and the wrong one on the right well costs you a pull. The right one, sized to your total dynamic head and paired with a properly sized pressure tank, is a fifteen year purchase you stop thinking about.
If the water sits deeper than that, you want a submersible sized to your total dynamic head. The Hallmark 1 HP at 33 GPM is the one we would own for a typical deep residential well, and the VEVOR at 37 GPM is the stronger value if your well is shallower or your budget is tighter. Whichever you choose, go 3-wire so the next capacitor failure does not start with a well pull.
For irrigation volume rather than household pressure, the AQUASTRONG 1.5 HP centrifugal moves more water than anything else here. For a cabin, a backup line, or a run directly off solar, the ECO-WORTHY 12V DC pump is the only sensible option in the group. And if you are starting from an above-ground setup with no tank, the Aquastrong package with its integrated 5 gallon tank and switch removes the most guesswork.
Before you buy anything, read the nameplate on your existing pump and write down the horsepower, voltage, and wire count. That single habit stops you from repeating a sizing mistake that was already made once, and it is the difference between a fifteen year pump and a five year one. Check your pressure tank air charge while you are at it.
These picks reflect the data we could verify for 2026. Flow ratings are maximum figures, so confirm your own total dynamic head before ordering, and if a quote comes back far above the pump itself, ask for it itemised.
